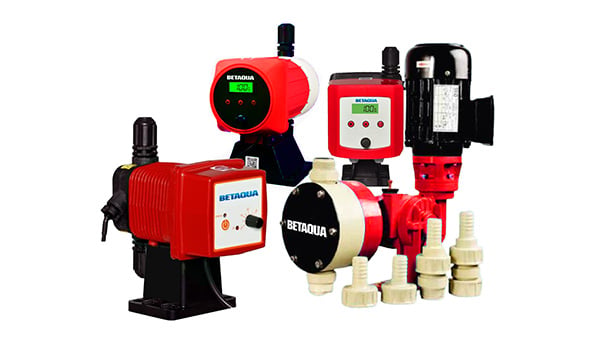

Betaqua Dosing Pump
Discover chemical accuracy and consistency with Betaqua Dosing Pump.
Betaqua Dosing Pump is a device used to introduce chemicals into a water stream or other system in a controlled manner. It is essential in the water treatment process, waste treatment, and chemical industry, where the need for precise dosing is crucial. Betaqua Dosing Pump is designed to ensure accuracy and consistency in chemical injection.
Uses
- Drinking water and sewage treatment.
- Production processes in the chemical industry.
- Water treatment for boilers and cooling towers. We understand the importance of dosing pumps in these processes and offer reliable solutions.
NEED THE BEST DOSING PUMP?
Contact our team to consult about the Betaqua Dosing Pump that suits your needs.
Reg Neo Specifications
Betaqua Dosing Pump Reg
.webp "Dosing-Pump-Neo-Image-1 (1)")
Betaqua Dosing Pump Neo
Standard Features
- Solid PTFE diaphragm for longer service life
- Double Ball Non-Return Valve (Double Ball NRV)
- Built-in Air Release Valve (Built-in ARV)
- User-friendly button to adjust dosing frequency
- CE certified
- IP65 certified
Technical Specifications
- Dosing rate @4 kg/cm²: 1.5, 3.0, 6.0, and 10 liters per hour.
- Suction/discharge tube: 4/6 mm.
- Frequency: Up to 400 spm.
- Power: 230 VAC, 50 Hz.
- Power Consumption @400 spm: 30 watts.
Dose Rate at Different Back Pressures
Pressure (kg/cm²)
- Open
- 1.0
- 2.0
- 3.0
- 4.0
- 5.0
- 6.0
Flow (lph)
- 20.0
- 10.0
- 8.0
- 7.0
- 6.0
- 6.0
- 5.0
Reg Max Specifications
Betaqua Dosing Pump Max
Scope of Supply
- Metering Pump
- Suction and Discharge Connectors
- Suction Filter and Foot Valve
- Injections / Back Pressure Assembly
- Instruction Book
Construction Materials
- Dosing Head: Polypropylene/PVC/PTFE
- Diaphragm: Hypalon with PTFE Surface
- NRV Ball: PTFE
- Suction/Discharge Assembly: Polypropylene/PVC/PTFE
- Injectable Valve Assembly: Polypropylene/PVC/PTFE
- Suction Filter Assembly: Polypropylene/PVC/PTFE
Reg Mega Specifications
Betaqua Dosing Pump Mega
Standard Features
- Backlit LCD display
- Solid PTFE diaphragm for longer service life
- Double Ball Non-Return Valve (Double Ball NRV)
- Built-in Air Release Valve (Built-in ARV)
- User-friendly button to adjust dosing frequency
- Batch and interval dosing options. CE certified
Technical Specifications
- Dose rate @ 4 kg/cm²: 40 lph @ 3 kg/cm
- Suction/dispensing tube: 8/10 mm
- Movements per minute: Up to 120 spm
- Electrical: 230 VAC, 50 Hz
- Power Consumption @400 spm: 30 watts
Dose Rate at Different Back Pressures
Pressure (kg/cm²)
- Open
- 1.0
- 2.0
- 3.0
- 4.0
Flow (lph)
- 130.0
- 60.0
- 50.0
- 40.0
- 30.0
Local Stock
Our constantly maintained stock allows us to respond quickly to any requests, ensuring that your operations are never disrupted by delays in supply. We pride ourselves on offering guaranteed product availability, underpinning the smooth and successful running of your business.
Learn more
Contact us to learn more about our Betaqua Dosing Pump and other info about our products and services.
