Toray MBR Modules for Membrane Bioreactor WWTPs
Updated
Toray MBR modules: PVDF flat-sheet membranes for membrane bioreactor WWTPs. TMR140 data, the NHP(A) successor series, design inputs and Beta's supply scope.
Discuss the application.
Send the application, operating conditions and the result you expect. Our team will discuss the options with you.
Toray MBR modules are PVDF flat-sheet membrane modules installed in a membrane bioreactor (MBR) tank to separate treated water from activated sludge. PT Beta Pramesti Asia evaluates and supplies Toray MBR modules as part of MBR wastewater treatment plants, including process design, blower and permeate-pump integration, commissioning and cleaning support.
According to Toray’s MBR product page, the MEMBRAY membrane has a nominal pore size of 0.08 microns. Toray also states that the TMR series has been discontinued and replaced by the NHP(A) series (NHP210, NHPA050, NHPA100, NHPA150) with higher packing density. We keep the TMR140 data below as a reference for existing installations and replacement planning.
When are Toray MBR modules evaluated?
- New WWTPs that need effluent very low in solids or water for reuse.

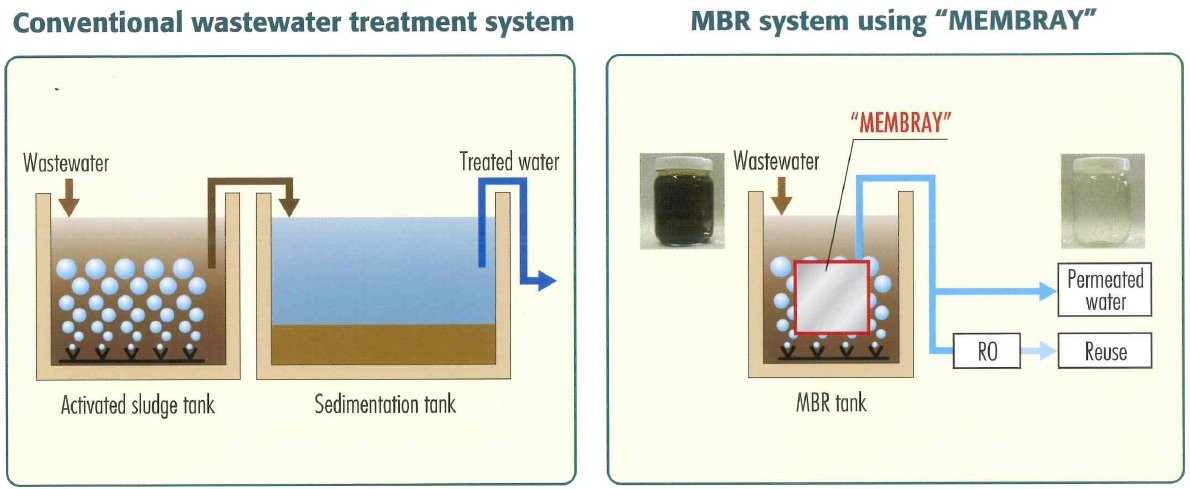

- Activated-sludge retrofits where the secondary clarifier is to be replaced by membrane separation.
- Module replacement in existing MBR systems, including moving from the TMR series to its successor.
- Sites with limited land where conventional clarifiers are hard to build.
The comparison with other processes is in MBBR vs MBR vs activated sludge. For whole-system design, see MBR for wastewater treatment.
Design data to prepare
| Data | Effect on module selection |
|---|---|
| Average and peak flow | Module count, design flux and number of trains |
| Influent quality (BOD, COD, TSS, oil/grease, temperature) | Pretreatment needs and fouling risk |
| Effluent target or reuse specification | Disinfection or polishing after the MBR |
| Existing tank dimensions (for a retrofit) | Module type and height that fit |
| Utilities and cleaning strategy | Air-scour blower capacity, backwash system and cleaning-solution handling |
TMR140 series specification (discontinued by Toray)
| Module Type | TMR140-050S | TMR140-100S | TMR140-200W | TMR140-200D | TMR140-400DW |
|---|---|---|---|---|---|
| Flow Capacity | m³/day 8 - 53 | m³/day 15 - 105 | m³/day 30 - 210 | m³/day 30 - 210 | m³/day 60 - 420 |
| gal/day 2,100 - 14,000 | gal/day 4,000 - 27,700 | gal/day 7,900 - 55,500 | gal/day 7,900 - 55,500 | gal/day 15,900 - 111,000 | |
| Number of Membrane Elements | 50 | 100 | 200 | 200 | 400 |
| Total Membrane Area | m² 70 | m² 140 | m² 280 | m²:280 | m²:560 |
| sq.ft.: 750 | sq.ft.: 1,510 | sq.ft.: 3,010 | sq.ft.: 3,010 | sq.ft.: 6,030 | |
| Dimensions | |||||
| Width (mm) | 810 | 810 | 840 | 810 | 840 |
| Width (inch) | 31.9 | 31.9 | 33.1 | 31.9 | 33.1 |
| Length (mm) | 950 | 1,620 | 3,260 | 1,620 | 3,260 |
| Length (inch) | 37.4 | 63.8 | 128.3 | 63.8 | 128.3 |
| Height (mm) | 2,100 | 2,100 | 2,100 | 4,160 | 4,160 |
| Height (inch) | 82.7 | 82.7 | 82.7 | 163.8 | 163.8 |
| Weight (dry) | |||||
| kg | 400 | 695 | 1,430 | 1,365 | 2,690 |
| lb | 882 | 1,532 | 3,153 | 3,009 | 5,930 |
| Materials | Diffuser, Frame, Permeated Water Manifold | 304 stainless steel (316 stainless steel is available as option) |
These figures are TMR140 series data from our product archive. For new projects, the model follows the series Toray currently offers and is confirmed at design stage.

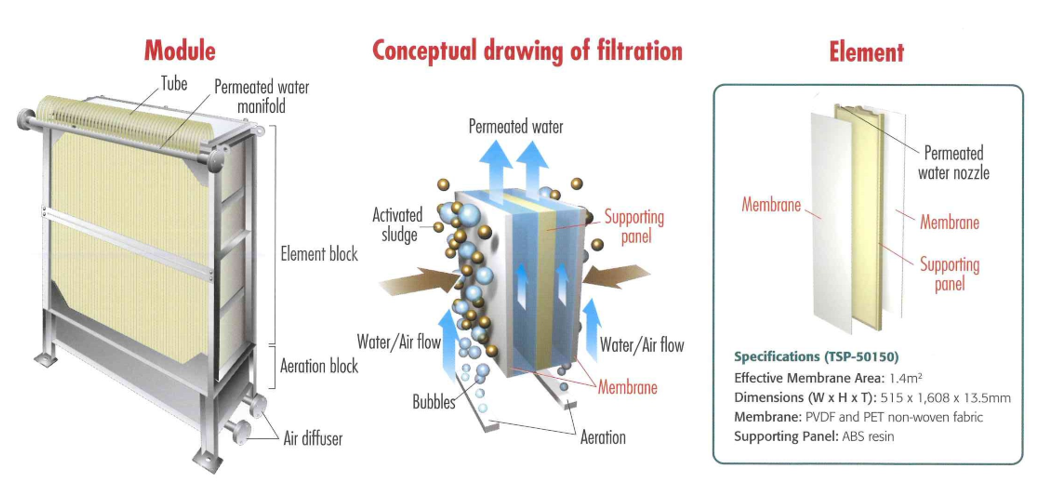

How a submerged MBR module works
- Activated sludge in the membrane tank surrounds the modules.
- Permeate pumps draw clean water through the membrane pores; biomass and solids stay in the tank.
- Air from diffusers below the modules (air scour) continuously cleans the membrane surface.
- Maintenance and recovery chemical cleaning follow transmembrane pressure (TMP) and the manufacturer’s procedure.
What we supply
- Evaluation and supply of Toray MBR modules.
- MBR WWTP process design, including bioreactor, blowers, pumps and controls.
- Installation, commissioning and bacterial seeding at start-up.
- Membrane cleaning chemicals and operating support.
As a WWTP contractor we also build large activated-sludge plants; our latest project, the Kendal Industrial Park Phase 1B WWTP, uses activated sludge with clarifiers, not MBR.
Toray MBR module FAQ
Are Toray MBR membranes hollow fibre?
No. Toray describes MEMBRAY as a PVDF flat-sheet membrane.
Is the TMR140 series still available?
Toray states the TMR series has been discontinued and replaced by the NHP(A) series. Contact us to evaluate replacements for existing systems.
Are MBR modules alone enough to build a WWTP?
No. An MBR plant still needs pretreatment, a bioreactor, air-scour blowers, permeate pumps, a cleaning system, controls and sludge handling.
What should we send for a quotation?
Flow, influent analyses, effluent or reuse target, tank dimensions for a retrofit, and the existing module model for a replacement. Send them through the contact page.
