Harsh front‑end conditions in palm oil mills steadily grind down thresher drums and screw presses — unless routine inspections, hard‑facing overlays, and disciplined rebuilds intervene. Case studies and shop‑floor manuals point to fewer breakdowns, higher recovery, and up to 47.4% lower total maintenance cost when mills get proactive.

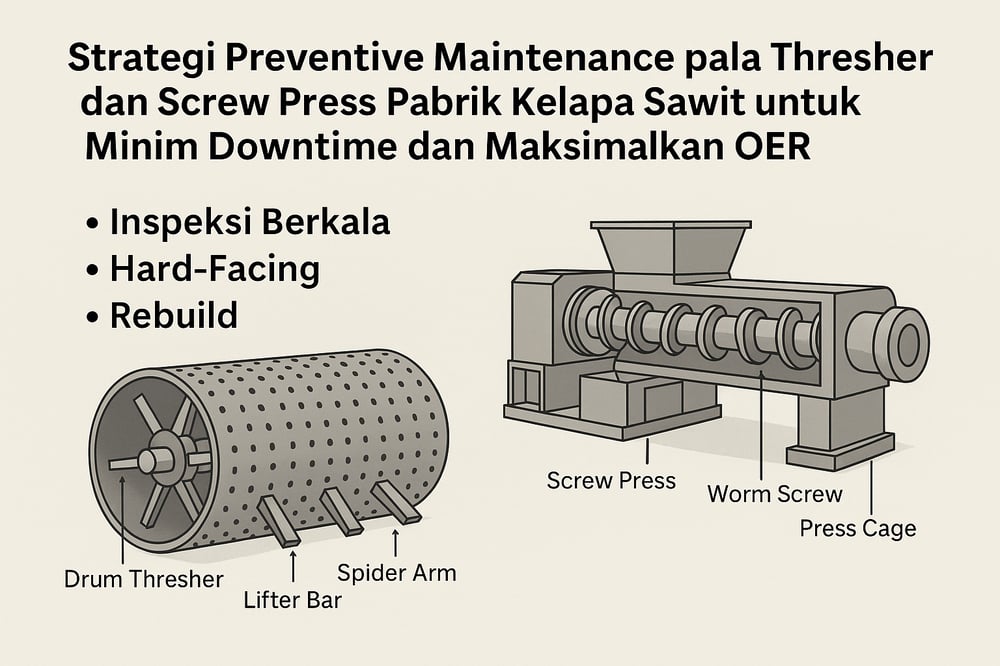

The front end of a palm oil mill — from fresh fruit bunch (FFB) reception through sterilization, threshing, and pressing — is a high‑wear zone. Moist heat, hard fruit fiber, and entrained sand drive accelerated abrasion. Rotary thresher drums (lifter bars/spikes mounted on internal “spider” arms) and screw presses (a pair of worm screws inside a perforated press cage) take the brunt, and the failure modes are predictable and expensive.
Engineering studies flag that “spider arms within thresher drums… are susceptible to developing fractures and breakdowns” under heavy impact loads (researchgate.net). Manufacturers likewise warn that the press cage and screws bear the worst abrasion — “FFB from sandy areas will cause high wear rates due to the abrasive nature of the sand” (scribd.com). And the performance penalty isn’t linear: field notes show moderate cage wear may spare extraction initially, but once a critical threshold is crossed, oil/kernel recovery “reduces drastically” and losses spike (scribd.com). The summary from the shop floor is blunt: unchecked wear on thresher bars, press worms, and cages drives efficiency losses and unplanned downtime.
Preventive inspection and reliability economics
Because loads are high and abrasive, preventive inspections carry disproportionate value. Industry failure data suggests 40–50% of production interruptions trace to inadequate maintenance — irregular schedules and poor handling — rather than unforeseeable faults (palmoilpresses.com). In a double‑screw press survey, “irregular maintenance schedule” topped the list of malfunction causes (researchgate.net).
The upside is equally clear. An Indonesian optimization study (using FMEA — failure mode and effects analysis — and scheduling) hit a 90% reliability target at Rp131.4 million/year — roughly 47.4% lower total cost than no schedule at all (researchgate.net). A Malaysian mill operating under an OEM “performance agreement” ran 24/7 for 8+ years with “hardly any breakdowns” by adhering to planned maintenance and OEM parts, while OEM service visits minimized production interruptions (alfalaval.us) (alfalaval.us). That same program cut normal oil loss roughly in half — from ~0.8–1.0% down to ~0.25–0.5% — by optimizing process steps and minimizing stops (alfalaval.us).
Condition monitoring and safety checks
Foundational practices include comprehensive checklists, lubrication schedules, and condition monitoring. Vibration and temperature sensors on motors/pumps warn of imbalance or bearing failure before a crash. Oil analysis catches early contamination and metal particles. Environmental and safety checks — steam traps, pressure valve testing, belt alignment — reduce leakage and unplanned release events. The throughline in the data: consistent inspections and preventive maintenance slash downtime and lengthen asset life (researchgate.net) (alfalaval.us).
Inspection schedule: daily through annual
Daily/weekly: check conveyors (chains, rollers) for alignment and tension; listen for abnormal noise/vibration in thresher and press; inspect thresher drum spiders and lifter bars for cracks or deformation (researchgate.net); remove debris (fruit, fiber, sand) that jams or abrades; verify gearbox and bearing lubrication. As one manual advises, “Clean the outside of the motor once a week… check bolts and nuts monthly” (scribd.com). Even a slight oil or seal leak merits immediate repair to prevent contamination and accelerated wear.
Monthly/semiannual: measure wear on thresher screws or lifters — one guide calls for monthly inspection of thresher blades with immediate replacement if worn (scribd.com). Align and tighten bolts and chains; lubricate sprockets and bearings (5000–8000 hr grease intervals for gearboxes/bearings are typical) (scribd.com). Maintain proper screw press clearances — i.e., the gap between rotating worms and cage — for efficient oil flow (scribd.com). Inspect press pressure gauges and safety valves. Record operating hours to plan shop maintenance.
Annual/rebuild: fully inspect thresher drum and frame for fatigue cracks; replace cracked spider arms (researchgate.net). Check shaft alignment in digesters and presses; conduct vibration analysis on press shafts; replace long‑life consumables (e.g., press seals) at OEM intervals. Even robust parts should be overhauled before excessive wear — steel press cages can run while thinning, but once holes or the cage body are badly worn, recovery % “reduces drastically,” so service or replace before that point (scribd.com). Empirical analyses emphasize that even if worn parts seem functional, approaching these critical wear levels must be avoided; scheduled PM in one study saved ~47% of the maintenance budget while stabilizing output (scribd.com) (researchgate.net).
Hard‑facing overlays and wear materials
To slow abrasion, mills apply hard‑facing (a welded or thermal‑spray overlay that increases surface hardness) or liners to wear surfaces. Metallurgical data shows that adding roughly 25–35% tungsten carbide (a ceramic‑metal “cermet”) into a steel matrix can raise wear resistance by ~2.8–3.3× versus high‑strength steel alone (researchgate.net). In palm‑oil service, that often means welded tungsten‑carbide rods or patches on thresher lifter bars, conveyor scrapers, and press parts. Worn worm screws are commonly rebuilt by weld‑buildup with hard‑facing and then machined back to spec (scribd.com). On the press cage, top/bottom V‑shaped “shoes” are routinely built up by welding with a hard rod (e.g., E6013 or a nickel‑base alloy) and ground to the original profile; manuals describe this as inexpensive and effective, restoring clearance with minimal cost (scribd.com). In general, such hard‑facing can multiply service life several‑fold. In related industries, Ni‑hard liners and tungsten inserts extend chutes, conveyors, and pump impeller life, with tungsten‑carbide wear plates delivering multi‑year service versus months without them (researchgate.net).
Shop rebuild procedures: screw press and cage
Screw press worms: remove the press cage and worms (typically by reversing the screw or using pullers). Measure worm thread and bore diameters. When throughput falls off, suppliers advise restoring worn flights “to the original dimensions… by welding and subsequent machining,” followed by shaft balancing (scribd.com) (scribd.com).
Press cage and shoes: service the heavy cage in a machine shop. Clear all perforations — blocked holes cause uneven wear (scribd.com). Reverse the cage end‑for‑end on reinstallation to distribute wear (scribd.com). Replace the cage outright if beyond salvage (scribd.com). Refurbish the V‑shaped “axial shoes” by welding a suitable electrode (e.g., E6013 or a wear‑alloy) and grinding back to profile to restore critical clearance; confirm fit before reassembly to avoid jams (scribd.com) (scribd.com).
Thresher drum service and rotating balance
Renew lifter bars or stripping spikes when worn. Replace cracked spider arms or re‑weld where feasible; many mills keep spare spider assemblies. After reassembly, balance the rotating drum if weights or components changed to prevent vibration and secondary bearing failures.
Bearings, seals, gearbox overhaul and run‑in
Replace any bearings that show wear (e.g., inner race pitting). Re‑machine or renew damaged gearbox shafts or couplings. Install new seals or gaskets wherever disturbed. After rebuild, adjust alignment and preload per OEM specifications. Run the press at no load to verify smooth operation, then ramp gradually to production. Close every rebuild with a supervised trial run (temperature, vibration, leaks, oil level) and document hours, parts life, and weld thickness for trend tracking. In practice, systematic rebuilding can double component life; one mill reported quarterly rebuilds of worn worms and shoes kept efficiency high and avoided unscheduled downtime.
Production and quality impact
Planned maintenance prevented about half of breakdown costs in one analysis (researchgate.net). The opportunity cost is stark: a single 12–24 h breakdown in peak season can cost over 3,000 kg of oil per hour lost (palmoilpresses.com). Maintenance also improves quality by reducing metal/fiber contamination and increasing oil extraction, as seen in the Malaysian case that halved oil losses (alfalaval.us).
The combined playbook — regular inspection, hard‑wearing materials, and timely rebuilds — isn’t optional for front‑end milling. Studies and manuals indicate this approach can extend component life by factors (often 2×–3× or more), keep reliability above ~90%, and avoid the steep productivity losses that follow once critical wear thresholds are crossed (researchgate.net) (researchgate.net) (scribd.com).
Sources: Palm oil engineering studies and industry handbooks (researchgate.net) (researchgate.net) (researchgate.net) (scribd.com), case‑study reports (alfalaval.us) (alfalaval.us), and OEM maintenance manuals (scribd.com) (scribd.com) (scribd.com) (all cited). Each recommendation above is backed by data or documented practice.
