Soaring water use and tightening rules are forcing oil and gas operators to reinvent drilling. Onsite recycling, mobile reverse osmosis, and low‑water alternatives like air drilling and CO₂/N₂ “energized” fracs are moving from pilot to playbook.
Hydraulic fracturing’s water budget has exploded. Average fresh‑water use per U.S. frac job jumped from ~5,600 barrels in 2008 to ~128,000 barrels by 2014 (ogj.com). Even vertical wells need thousands of barrels, and some shale designs use ~100,000 barrels for a single fracture stage (drillingfluid.org; ogj.com).
The industry also pulls far more water out of the ground than oil: globally, it produces ~8 barrels of wastewater for each barrel of oil (drillingfluid.org). Regulators are taking notice. In Texas, 2025 wastewater rules could lift disposal costs by about $1 per barrel (reuters.com). In Indonesia, drilling waste and cuttings are classified as hazardous, with strict discharge limits (Permen LH No.10/2010) (onepetro.org).
Closed‑loop recycling on the rig

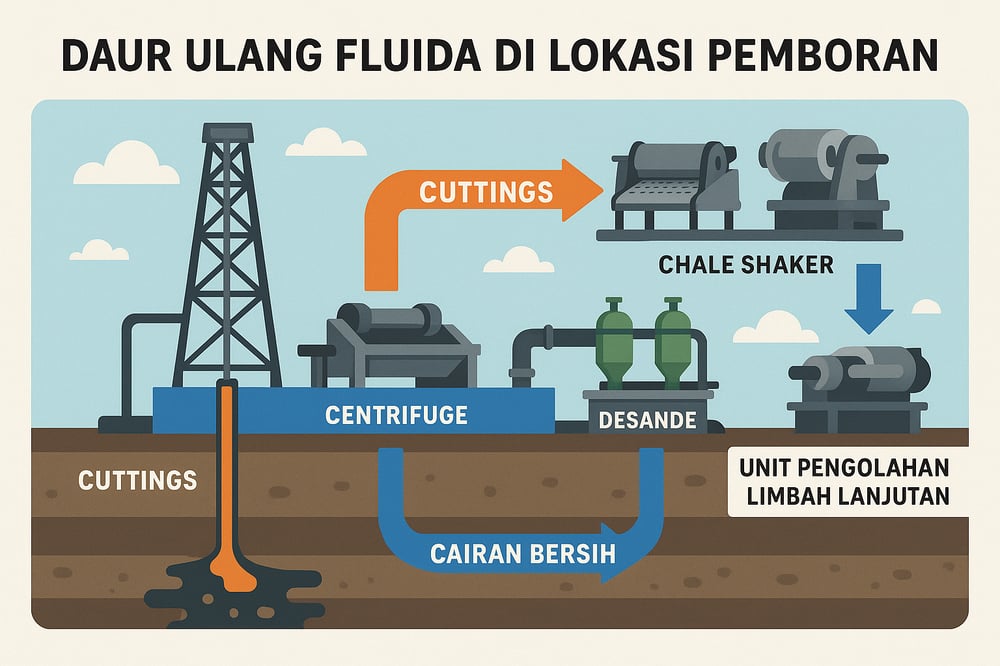

Rigs already circulate and reuse drilling fluids (muds). Solids‑control equipment such as shale shakers, decanting centrifuges, and desanders strips cuttings so base fluid can recirculate. Onsite treatment — including belt filter presses and centrifuges — is now producing very dry solids (<5% moisture) and recovering clean fluid for reuse (aogr.com). Belt presses originally built for pit cleanup now help reclaim water trapped in cuttings, enabling closed‑loop rigs.
Contractors lean on chemistry to speed separation. Flocculants are dosed to aggregate fine solids, with decanting centrifuges polishing the stream so “clear water” can go back into mud systems or be discharged safely (aogr.com). In practice, that can mean pairing flocculants with accurate chemical feed from a dosing pump, while front‑end skids handle screens and primary oil/solids removal via physical separation.
Produced water reuse and mobile RO
In shale completions, reusing recovered flowback/produced water for subsequent frac jobs is increasingly common — and cost‑effective. Analysts report that reusing produced water can cut well costs 30–45%, saving hundreds of thousands of dollars per well (aogr.com; drillingcontractor.org). Yet in 2019, of the ~24 billion barrels of U.S. produced water generated, only ~5% was recycled (drillingcontractor.org).
That gap is where mobile treatment comes in. Operators are deploying custom filtration trucks and portable reverse osmosis (RO, a pressure‑driven membrane process) right on the pad. One recent project in Riau, Indonesia, used a containerized high‑pressure RO unit to treat drilling wastewater, achieving ~80% water recovery and effluent under 2,000 ppm TDS (total dissolved solids), meeting discharge standards (suntar.com.sg). Typical pad setups pair membranes — for example, RO, NF, or UF systems — with pretreatment such as ultrafiltration (UF) to protect the RO train.
Indonesia’s Pertamina offers a different twist on reuse: a constructed‑wetland system in the Rokan field reduced daily produced‑water discharge by ~36%, from ~11,300 to 7,217 bwpd (barrels water per day) (pertamina.com).
Water cost arithmetic and disposal risk
Water handling can account for 40–55% of onshore OPEX (operating expenditure), with water also costing 10–30% of drilling CAPEX (capital expenditure) (ogj.com; aogr.com). Typical fresh water is about $0.60/bbl, while trucking and deep‑well injection can run ~$1.50/bbl; recycling at roughly $0.70/bbl is already cheaper than hauling (drillingcontractor.org).
Tighter rules shift the math further. Texas’s 2025 restrictions are expected to raise disposal costs 20–30% and by about $1/bbl in some cases (reuters.com), making onsite reuse even more attractive. Forecasts suggest recycling capacity will expand ~36% per year through 2025, far outpacing the under‑5% annual growth in produced‑water volumes (drillingcontractor.org). As one industry analysis put it, “the #1 thing” operators can do to cut water costs is reuse more water (drillingcontractor.org). Field deployments often hinge on reliable skids and controls — the sort of water‑treatment ancillaries that keep membrane and separation trains online.
Low‑water drilling and fracturing options
Air/gas drilling swaps slurry mud for compressed gas (air, nitrogen, or natural gas). In “air drilling,” more than 97% of the circulating fluid is gas, with only small liquid volumes (intechopen.com). The lighter column can speed penetration and virtually eliminate freshwater demand. It is used in water‑sensitive or collapsed formations, though it requires specialized equipment and can struggle with hole‑cleaning in deep or sticky clays. New gas recycling systems on rigs aim to capture and reuse circulated gas, with pilot tests reported to verify >97% gas reuse and cut pollution from venting (intechopen.com).
Foamed and energized fluids (injecting CO₂ or N₂ into the frac fluid) sharply reduce water needs. Baker Hughes’s VaporFrac uses CO₂ foams and reportedly needs only ~10% of the water of a conventional frac (lexology.com). In some cases, energized CO₂/N₂ designs can eliminate bulk water usage by relying on gas expansion for fracture propagation; nitrogen foam fracs reduce leak‑off and improve proppant transport. Chen et al. note that adding N₂ or CO₂ reduces or even eliminates water volumes in frac jobs, easing field logistics — with the caveat of higher compression and gas costs (aogr.com).
Other “water‑free” approaches include non‑aqueous fracturing. GasFrac’s LPG (liquefied petroleum gas) gel stimulation was field‑proven on ~1,000 Canadian and U.S. wells, delivering a truly waterless frac — though the company later filed for bankruptcy (lexology.com). Experimental methods include liquid CO₂ slurries or cryogenic fluids, and chemical exothermic reactions such as Chimera Energy’s metal‑oxide‑based thermal fracking to crack rock without water (lexology.com). A related path is wastewater‑based fluids: blending or treating saline/low‑quality water — including recycled produced water or municipal effluent — to cut freshwater drawdowns while managing the chemistry.
Policy signals and field realities
Indonesian upstream operations must meet discharge standards (Permen 10/2010), with permitting scrutiny of water use and spill risks. In the U.S., Texas’s 2025 fracture waste injection rules impose lower pressure/volume limits to protect aquifers, effectively raising disposal costs by 20–30% and tipping the balance toward reuse (reuters.com).
The water challenge is structural in key basins. In the Permian’s Delaware sub‑basin, operators face ~6.5 barrels of produced water per barrel of oil (ogj.com). Every barrel of freshwater saved translates to direct savings: treating and reusing water can yield tens to hundreds of thousands of dollars of savings per well (aogr.com).
What the next two years look like
A multi‑pronged approach is taking hold. On‑site recycling — mud recirculation, filtration/RO, and closed loops — can reclaim the majority of water and cut fresh‑water make‑up by ~45% or more (ogj.com). Alternative drilling and frac systems — from air drilling to CO₂/N₂ foam — can slash or even eliminate water use in the right formations (intechopen.com; aogr.com; lexology.com). With disposal costs rising and recycling capacity projected to grow ~36% annually through 2025 (drillingcontractor.org), the economics and compliance case for conservation — from Indonesia to the Permian — is increasingly straightforward.
Sources: Peer‑reviewed studies, industry reports, and regulatory documents on drilling fluid management and technology (see citations): ogj.com; aogr.com; drillingcontractor.org; suntar.com.sg; lexology.com; aogr.com; pertamina.com.
