Palm Oil’s Hidden Bottleneck: The Brutal Engineering of EFB Shredding and Conveying

Turning empty fruit bunches into usable fiber takes mini industrial chippers, oil‑resistant belts, and a maintenance schedule measured in shifts. The numbers explain why the machinery is built like a tank.

Industry: Palm_Oil | Process: Empty_Fruit_Bunch_(EFB)_Processing

Empty fruit bunches (EFB) are not a side note in palm oil—they are the bulk of what’s left. Each ton of fresh fruit bunch (FFB) generates roughly 21–23% EFB by weight (researchgate.net). Indonesia produced ~51.8 Mt of crude palm oil (CPO) in 2019, implying on the order of 8–10 Mt of EFB that year (researchgate.net) (about 26.8 kt per day in 2018, same source).

Handling it is a materials nightmare. EFB’s bulk density is only ~178 kg/m³ (researchgate.net), the average fiber length is ~0.9 mm (researchgate.net), and raw EFB typically contains high moisture (often 60–70%) and residual palm oil. Those attributes—bulky, fibrous, wet, oil‑laden—dictate heavy‑duty size reduction and handling, with energy‑intensive, low‑speed/high‑torque machines. In practice, many mills process several tonnes per hour; for example, a 75 kW shredder can handle ~10–15 m³/h (cubic meters per hour), or roughly 1.8–2.7 t/h (tonnes per hour) assuming ~0.18 t/m³ (0cd3e26b15cfa706.en.made-in-china.com).

Low‑speed, high‑torque shredder architecture

EFB shredders are typically low‑speed, high‑torque units built for continuous punishment. Common configurations use single or double shafts with multiple blunt blades/teeth to tear the tough bunches, with robust gears instead of belt drives to deliver torque. One 75 kW example uses a feeder drum at ~590 rpm (revolutions per minute) with six large steel knives to achieve ~10–15 m³/h throughput (0cd3e26b15cfa706.en.made-in-china.com).

An example “break‑cutter oil‑extractor” from MBL pairs a 75 kW (100 hp) motor with a triple‑reduction helical gearbox to process fresh EFB at ~6 t/h, producing 2–4 in (inches) fiber pieces (mbl.com; supporting spec context: 0cd3e26b15cfa706.en.made-in-china.com). A shredder design study underscores why: belt‑pulley drives often fail to provide enough torque, while multi‑stage gearboxes enable very low rotor speeds at high torque—essential for cutting high‑strength fibers (researchgate.net).

Cutters, frames, and feed systems

Cutting elements are hardened, wear‑resistant steel alloys. Manufacturers cite high‑carbon or chromium alloy steels (20–30 CrMn or NiCr types) for cutters and NiCr steel for shafts (researchgate.net), with the same study specifying heavy steel frames and housings—ASTM A36 or similar—to absorb impact forces (researchgate.net). Machines weigh multiple tonnes (e.g., ~5 t for a 75 kW MBL unit) on heavy‑duty bases.

Feed systems typically use large horizontal belt or chain conveyors driven by 2–5 kW motors to meter EFB into the cutting chamber (0cd3e26b15cfa706.en.made-in-china.com). Shutoff gates and hydraulically opening hoppers are common for maintenance access. After shredding, short fiber exits to a discharge conveyor or directly into the next process such as drying, boiler feed, or a pellet mill.

Performance envelope and sizing logic

Industrial EFB shredders span from tens to hundreds of kW. One supplier lists units from 45 kW (~3–5 m³/h throughput) up to 132 kW (~20–25 m³/h) (0cd3e26b15cfa706.en.made-in-china.com). In practice, 50–75 kW machines are common for medium‑scale mills. Cutting speeds are typically below 600 rpm to maximize torque, and output fiber size is set by screen openings; standard systems yield ~10–40 mm fibers suitable for pelletizing or combustion (0cd3e26b15cfa706.en.made-in-china.com).

The throughput math is straightforward: a 6 t/h shredder can produce over 120 t/day of fiber. Scaling to Indonesia’s ~8–10 Mt annual EFB implies hundreds of such shredders—or larger parallel lines—to keep pace (researchgate.net).

Wear, maintenance, and bearings

Shredding EFB generates extreme wear on cutters and bearings. The fibrous, abrasive material—often contaminated with sand/dirt—quickly dulls blades and clogs equipment. Operators routinely sharpen blades each shift and replace cutter sets every few months under heavy use; one manufacturer advises re‑grinding knives after each shift and full replacement of cutting blades every 3–4 months of continuous operation (palmefbshredder.com). Without this regimen, throughput and fiber size uniformity degrade rapidly.

Frames and shafts need robust bearings (SKF/NSK or premium Chinese brands) and heavy lubrication to survive high shock loads (palmefbshredder.com; torque rationale: researchgate.net).

Oil‑resistant belt conveying standards

Conveyors feeding dryers, boilers, pelletizers, or storage must be heavy‑duty. For EFB, high‑strength belt conveyors and plate/chain conveyors dominate. Belts use thick abrasion‑resistant rubber covers—often ≥4 mm top cover—with compounds designed to resist oils and moisture (easyengineering.eu). Biomass service also requires anti‑static, flame‑retardant properties that meet EN ISO 340 “self‑extinguishing” grades (easyengineering.eu).

Critically, the rubber compound must be oil‑ and resin‑resistant; leached palm oil will otherwise swell ordinary rubber and cause tracking failures. Designers describe oil resistance and high abrasion resistance as mandatory for biomass plants (easyengineering.eu). As conveyor belting expert Leslie David notes, substandard belts lacking anti‑static, oil‑proof, and wear‑resistant construction can fail quickly in biomass environments (easyengineering.eu).

Chain, drag, and cleated conveyor choices

Feed conveyors bringing unshredded EFB to the shredder are often heavy steel–plate belt or chain types, since bunches arrive as large clumps or via tipper trucks. Discharge conveyors after shredding may use cleated belts or drag chains to move loose fibers. For very heavy or abrasive service, chain‑based conveyors with welded steel buckets or flights are common (fbketju.com).

In biomass/pulp facilities, chains are made from hardened alloy or even stainless steel to maximize wear life; “FB conveyor chains” are explicitly designed “for long‑term use to withstand heavy wear and tear,” including in biomass applications (fbketju.com). Elevated bucket elevators are less common for EFB—which tends to cling—but heavy‑drag units can lift material short distances when required.

Wear, corrosion, and drive hardware

Wear on conveyors is extreme. Steel components must resist abrasion and corrosion; chain conveyors in paper mills use case‑hardened steel, and palm mills often specify “palmoil neutral” chains (e.g., USDA‑approved alloys) to resist palm oil acidity. Belts can use synthetic covers with added carbon‑black for anti‑static and flame resistance (easyengineering.eu).

Drive rollers and pulleys are oversized and fitted with hardened liners, belt cleaners are essential to remove residue, and belt tension is set higher than normal to prevent slippage under lumpy loads (easyengineering.eu).

Reliability outcomes and plant trends

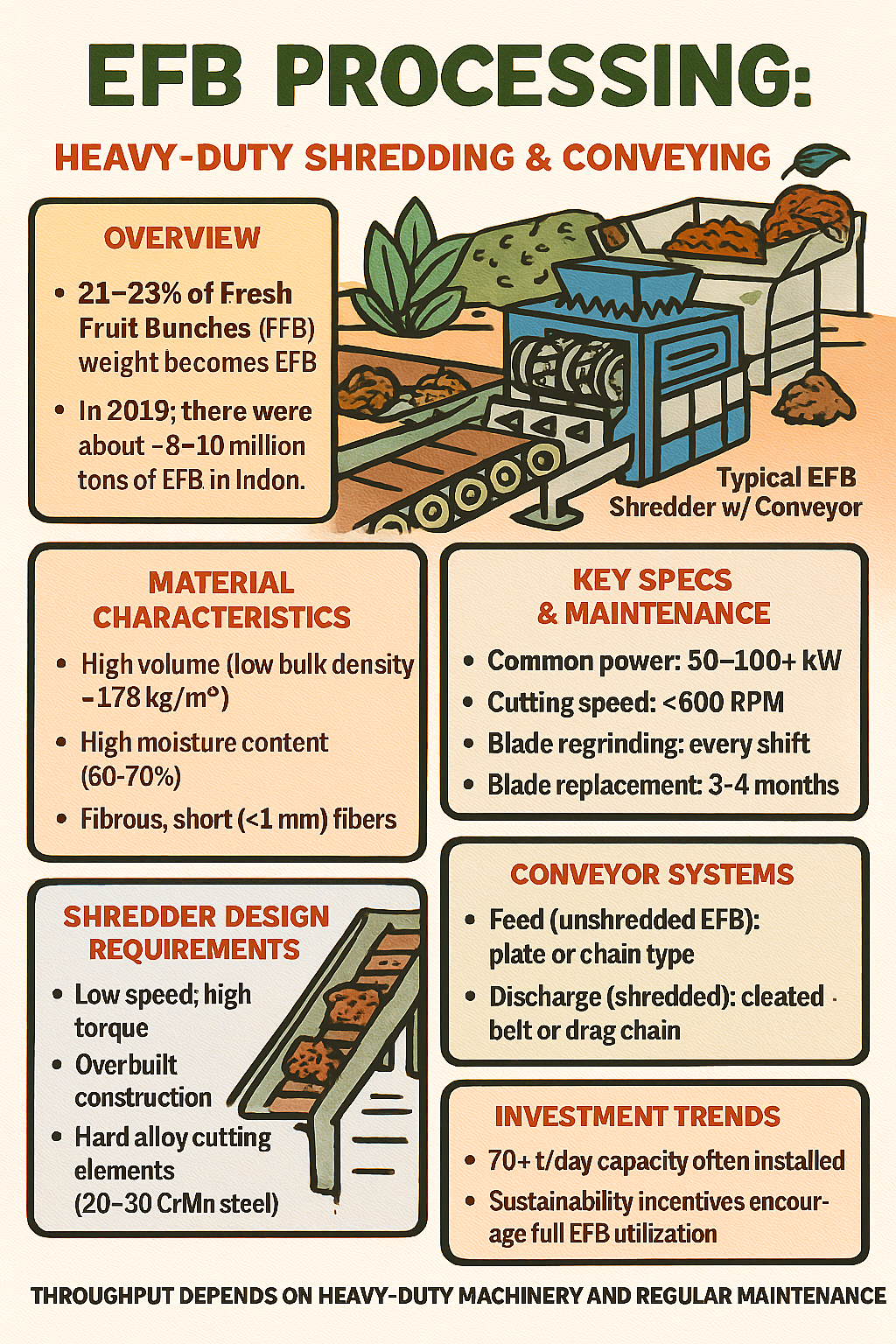

ChatGPT Image Sep 25, 2025, 11_53_03 AM

Modern systems run continuously when maintained. Indonesian mills report 24/7 operation for weeks on EFB shredder–conveyor lines, pausing only for scheduled knife grinding (palmefbshredder.com). Maintained blades keep output fiber size uniform—critical for downstream pellet mills or boilers—while neglect leads to frequent breakdowns: a blunted shredder or holed belt can drop capacity by tens of percent.

Demand for EFB processing capacity has grown alongside sustainability incentives. Many mills now invest in combined shredder‑press units (like the MBL design) to pre‑extract residual oil, lower moisture before final shredding, reduce wear on conveyors, and increase fuel quality (mbl.com). Policies (e.g., Indonesia’s commitment to zero‑waste mills) and carbon market pressures encourage full utilization of EFB, supporting the high capital cost of heavy‑duty machinery. Projects for pellet fuel or pulp now routinely specify multi‑shaft, 100+ kW shredders with correspondingly robust conveyors, and clear expectations that cutting tools and belt covers must be kept sharp and intact.

Design takeaway and measurable impact

EFB processing equipment is engineered like mini “industrial chippers”: massive build, low‑speed/high‑torque drives, and replaceable hardened tooling. Engineers plan for high wear rates—scheduling knife maintenance and belt replacement, specifying premium materials, and adding redundancy—because the payoff shows up in uptime and throughput. A well‑designed line using oil‑resistant belts and hardened‑chain conveyors can maintain continuous fiber handling up to ~20 t/h with only monthly maintenance, while flimsy setups can fail in days.

Sources: Indonesian palm‑industry studies and equipment manuals provide the above figures and observations (researchgate.net) (0cd3e26b15cfa706.en.made-in-china.com) (palmefbshredder.com) (easyengineering.eu) (fbketju.com). These draw on production statistics, shredder specifications, and conveyor engineering guidelines to quantify EFB processing needs. The cited materials (research papers, manufacturer data, industry analyses) support a design approach oriented toward measurable capacity and maintenance planning.
