Filter presses routinely deliver drier cakes and up to ~95% volume cuts; centrifuges run continuously with ~80% reductions. Where the sludge goes next—landfill or licensed B3 (hazardous) treatment—depends on what’s in it.
Combined‑cycle gas turbine plants (CCGT) purge heat‑recovery steam generator water (“boiler/HRSG blowdown”) to curb scaling. That blowdown is loaded with hardness salts (calcium, magnesium), silica, and dissolved solids that precipitate under heat, according to Lenntech. In practice, blowdown is treated—neutralized, flocculated—before reuse or disposal (Lenntech) (Lenntech).
The resulting sludge—often just ~1–5% solids—mixes chemical precipitates (calcium carbonate, hydroxides, corrosion inhibitors) and may carry trace heavy metals or oil. Composition dictates the waste class: non‑hazardous if largely inert salts; B3 (hazardous) if heavy metals or organics are present. Indonesian MOEF rules require B3 sludges to go through licensed processes such as thermal treatment or solidification. Either way, dewatering is the cost lever.
Blowdown sludge: chemistry and classification
At the source, the HRSG blowdown stream is a scaling control measure whose impurities—hardness, silica, concentrated dissolved solids—are well documented (Lenntech). Plants typically condition this wastewater ahead of discharge or reuse (Lenntech), producing a sludge with mostly inorganic salts and potential traces of metals/oils. Non‑hazardous sludges follow solid‑waste rules; B3 sludges trigger licensed hazardous handling under Indonesian regulation.
Upstream clarification typically uses coagulation and flocculation. Plants commonly pair aluminum coagulants with polymers; in that role, chemical programs map neatly to polyaluminum chloride (PAC), flocculants, and controlled feeds via a dosing pump. Where gravity clarification is specified, a compact clarifier is a standard unit operation; high‑load streams may instead use dissolved air flotation (DAF) units.

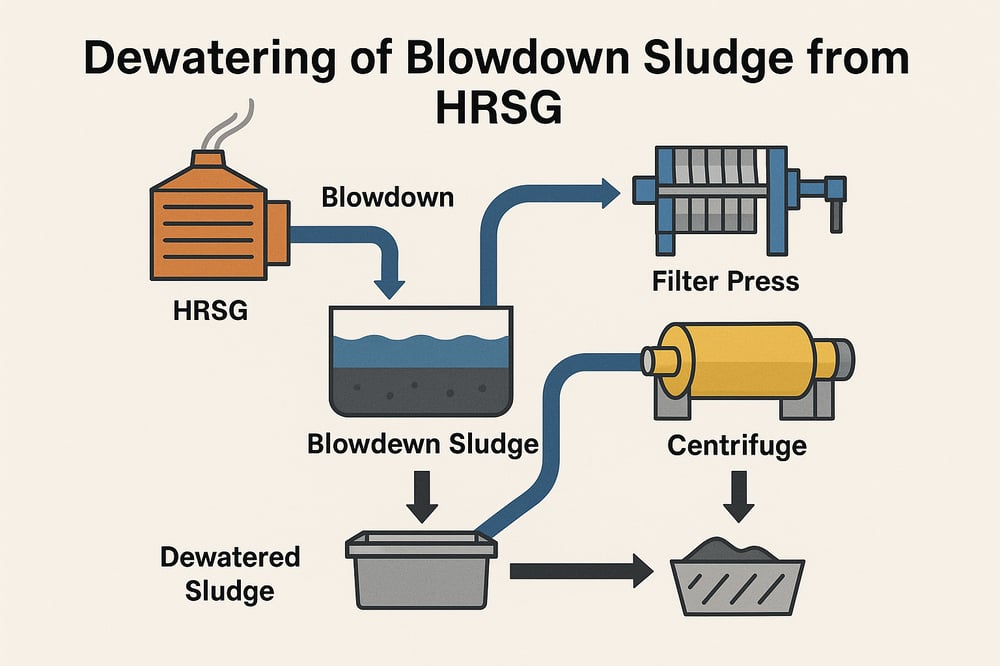

Filter press vs. centrifuge performance
Mechanical dewatering does the heavy lifting. Plate‑and‑frame filter presses batch‑process conditioned sludge under high pressure. With the right conditioning, lime‑based sludges reach 40–70% solids by weight in a press (EPA), and oil/chemical sludges often produce ≥35% solids (HCR). Scroll centrifuges (decanters) run continuously and typically yield 18–30% solids for mixed sludges (HCR) (EPA), though highly alkaline lime sludges can approach 60–70% solids on a good centrifuge (EPA).
In practical terms, a filter press can double or triple cake solids versus a centrifuge. From 4% raw solids, a 50% press cake represents a 16× concentration (~95% volume reduction); a 20% centrifuge cake is a 5× concentration (~80% reduction). Belt filter presses (continuous, gravity‑assisted) land in between at ~15–25% solids. EPA and vendors note that ≥30% solids is valuable; e.g., 40–50% solids cakes are “dry enough to meet landfill requirements” (HCR).
Trade‑offs are classic: presses deliver the driest solids but in batches with more labor for cake handling and cloth cleaning; centrifuges handle large, continuous flows with minimal operator attention (EPA) (HCR) but consume more energy (high RPM) while offering a smaller footprint and no batch cycle time. Centrifuges are commonplace for high‑volume, low‑solids sludge such as oily waste streams (HCR); filter presses fit highest dryness or variable sludge quality. Plants often round out this step with supporting gear—bins, conveyors, and controls—in the vein of wastewater ancillaries or integrated sludge treatment packages.
Volume reduction and solids math
Volume savings are stark. Dewatering from a few percent solids to ~20–50% solids cuts mass by ~80–95%. One illustration: 10,000 L of 3% sludge (300 kg solids) becomes ~600–750 kg of 40–50% filter‑cake, or ~1,000–1,500 kg of 20% centrifuge‑cake. After pressing, volumes typically shrink by about an order of magnitude. Filtrate (liquid) returns to the wastewater train for recycle or discharge once treated. Upstream thickening to ~5–10% solids is commonly achieved by clarification and polymers—where commodity programs like water and wastewater chemicals integrate with primary units.
Disposal criteria and options
Final disposition is chemistry‑driven. Non‑hazardous sludge (no B3 character) can go to engineered municipal/industrial landfills—if it passes the paint‑filter test (no free liquids) and shows no toxic leachable contaminants above regulatory limits under the TCLP (toxicity characteristic leaching procedure) (EPA) (EPA). In Indonesia, non‑B3 sludge can likewise be solidified if needed and disposed in Class II/III landfills per MoEF rules.
Landfilling in a monofill (dedicated sludge cell) or co‑disposal site is common (EPA), and EPA notes that “landfilling tends to be the most economical option” for water‑treatment sludges (EPA), subject to available capacity. By contrast, B3 (hazardous) sludge—e.g., with elevated metals or oils—must be handled by licensed B3 facilities in Indonesia (incinerators, cement kilns, hazardous landfills) per ministerial regulations. Typical measures include thermal destruction or solidification to meet TCLP limits; oil‑contaminated fractions may go to incineration or sludge‑oil‑recovery, and some mixed sludges can be co‑incinerated in cement kilns, with any reuse (e.g., calcareous sludge as cement additive) requiring strict testing.
Costs hinge on class and volume: a non‑hazardous 20%‑solids cake often runs ~$100–200/ton to landfill (transport included) in many markets, while B3 sludge disposal by incineration can exceed $500/ton (EPA). These vary by region. Maximizing dryness—and avoiding B3 classification by segregation or treatment to remove toxics—directly cuts expense.
Implementation plan and sizing
A robust plan begins with clarification (sedimentation/DAF) and polymer conditioning to thicken blowdown sludge to ~5–10% solids, using unit ops such as a DAF system or a clarifier, paired with chemical programs like PAC and flocculants. Accurate feed control via a dosing pump is typical.
Next, install mechanical dewatering: filter presses (or belt presses) to produce >30% solid cake when dryness is critical, and/or decanter centrifuges for bulk continuous flow if lower solids are acceptable. Select capacity for peak sludge flows and consider redundancy. As a sizing marker, if a plant generates 0.5 m³/day of 4% sludge, a small 0.5–1 m² filter press or a 24″ centrifuge could suffice. Polymer dosage targets are a few tens of mg/L of PAM (polyacrylamide). Cakes should be stored in covered bins with weights and analyses logged; the framework aligns with integrated wastewater ancillaries for handling and monitoring.
For inorganic/non‑hazardous sludge, high‑solids press cakes (≥40–50%) are routinely landfill‑ready—“dry enough to meet landfill requirements” (HCR)—subject to paint‑filter and TCLP checks (EPA) (EPA). For potentially hazardous sludge, analyze metals/organics; if B3, schedule off‑site pickup by a licensed handler for options such as incineration or cement kiln co‑processing. If small fractions exceed TCLP limits, lime‑stabilization or polymer solidification can isolate toxins before landfill (where permitted). Each decision point should be supported by test data—cake TSS%, moisture, leachability—checked against MOEF hazardous‑waste lists, with design and management aligned to local and Indonesian K3/LHK regulations.
Bottom line: dewatering cuts sludge volumes by an order of magnitude. A press‑plus‑centrifuge toolkit offers flexibility—high dryness when required, continuous throughput when flows surge—while the final destination follows the chemistry.
Sources and cited guidance: typical filter press solids (~40–70%) versus centrifuges (~18–25%) (EPA) (HCR); disposal criteria (no free liquids, TCLP limits) (EPA) (EPA); landfill pathways and economics (EPA) (EPA). Lenntech background on blowdown characteristics and treatment: (Lenntech) (Lenntech) (Lenntech).
