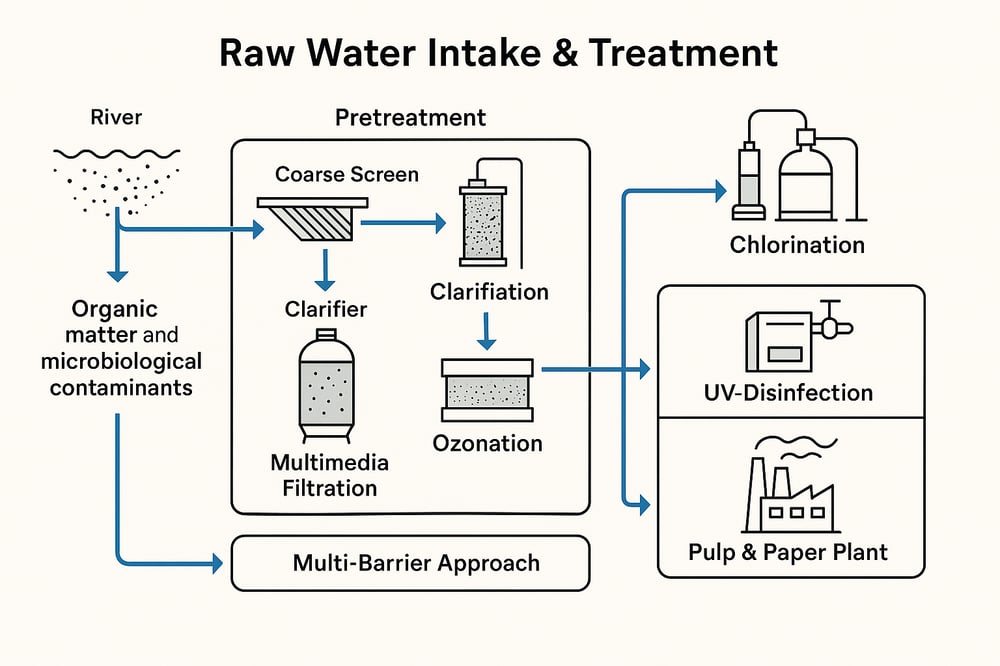

Pulp and paper mills move tens of thousands of cubic meters of water a day. When that water is hard, scale slashes uptime and efficiency. Conventional ion‑exchange softeners—properly sized and regenerated—deliver near‑zero hardness more reliably than standalone chemical scale inhibitor programs.
Globally, pulp and paper consumes on the order of 90–100 million m³ of water per day for wood prep, pulping, bleaching and paper forming, with Asia‑Pacific mills accounting for nearly half of this demand (ResourceWise) (ResourceWise). That scale of throughput makes calcium and magnesium (hardness ions) a perennial headache: they precipitate as carbonate, phosphate or oxalate scales on heat exchangers, boilers, pipes and paper‑machine showers—driving shutdowns, plugging and higher energy and chemical use (WaterTechOnline).
It’s not an abstract risk. Scale buildup in disc filters or shower lines often forces cleaning every few months (WaterTechOnline). Left unchecked, hard water raises operating costs and downtime dramatically in P&P mills.
Hardness removal by sodium‑cycle ion exchange
A conventional water softener uses a fixed‑bed ion‑exchange process to swap hardness cations (Ca²⁺, Mg²⁺) for sodium (Na⁺) on a resin. Mills typically deploy a strong‑acid cation (SAC) resin—sulfonated polystyrene‑divinylbenzene—in the sodium form. As raw water flows downward, Ca²⁺ and Mg²⁺ bind to exchange sites and Na⁺ is released. Veolia summarizes it simply: in a sodium zeolite softener, scale‑forming Ca²⁺/Mg²⁺ are replaced with Na⁺ (Veolia Water Technologies Handbook). The exchange reactions are:
Ca(HCO₃)₂ + 2 Na–R → Ca–R₂ + 2 NaHCO₃
MgCl₂ + 2 Na–R → Mg–R₂ + 2 NaCl
Where R–Na denotes a resin bead with mobile Na⁺. The outgoing “soft” water contains virtually no Ca²⁺/Mg²⁺ (ideally ≪1 mg/L hardness), so it is far less scale‑forming (Veolia Water Technologies Handbook). Ion‑exchange softening does not substantially change pH or alkalinity, but it elevates total dissolved solids (TDS) by replacing divalent ions with monovalent sodium (MECC Water).
In service, a softener delivers low hardness until breakthrough—the point at which effluent hardness rises sharply as the resin nears exhaustion. Figure 8‑5 of Veolia’s handbook (not shown) illustrates that effluent hardness remains near zero until this inflection, after which regeneration is required (Veolia Water Technologies Handbook).
Regeneration pushes a concentrated brine (approximately 10–15% NaCl) upward through the bed to displace Ca²⁺/Mg²⁺ and recharge sites with Na⁺ (reaction: Ca–R₂ + 2 NaCl → 2 Na–R + CaCl₂) (Veolia Water Technologies Handbook). About three times the stoichiometric Na⁺ is typically applied, so a large excess of salt—on the order of 6–12 lb NaCl per ft³ of resin—is used (Veolia Water Technologies Handbook) (SystematixUSA).
Equipment is straightforward: a vertical‑pressure resin vessel with top distributors, a resin bed and underdrain; plus a brine tank, piping and a control valve to sequence backwash, brine and rinse steps (Veolia Water Technologies Handbook) (Veolia Water Technologies Handbook). In operation, the bed is backwashed first to lift the media and remove suspended solids, then soaked and rinsed with brine. Modern systems often use programmable controls and automatic lead/standby switching to ensure uninterrupted output. Where plants specify the equipment class, a softening system falls broadly under ion‑exchange systems and uses ion‑exchange resins; brine tanks, valves and piping are typical supporting equipment.
Sizing, capacity and regeneration scheduling
Proper sizing matters. Softener capacity is rated in grains of hardness removed as CaCO₃ per volume of resin (1 grain per gallon, gpg, is a common field unit; gpg is a measure of hardness). Typical SAC resins have capacities on the order of 20,000–30,000 grains per cubic foot when regenerated fully (Veolia Water Technologies Handbook) (SystematixUSA). Veolia reports that adding about 10 lb NaCl per ft³ yields roughly 24,000 grains/ft³ capacity (Veolia Water Technologies Handbook). In practical terms, one cubic foot of resin may treat roughly 2,000–3,000 gallons of 10–12 gpg water (approximately 170–200 mg/L hardness) between regenerations (SystematixUSA).
The sizing math starts with total hardness load (flow × hardness). Example: a 25 gpm line (≈5.7 m³/h) at 200 mg/L as CaCO₃ (≈12 gpg) carries about 18,000 grains per hour. To run 8 hours without regeneration, the load is ≈144,000 grains. At ~22,000 grains/ft³ capacity, the project would need ≈6.5 ft³ (~0.18 m³) of resin (SystematixUSA). Designers often target a run length (e.g., 6–10 hours) or meter‑based regeneration that triggers just before breakthrough. Some capacity margin is prudent; oversizing or paralleling vessels lowers the risk of any hard‑water leakage between cycles.
Regeneration intervals and salt use vary with load. A common design rule is to regenerate no more often than every 3–4 days and no less often than about 1–2 weeks (for domestic systems; industrial practice scales similarly). Typical salt dosage is 6–10 lb (2.7–4.5 kg) NaCl per ft³ of resin per cycle to achieve roughly 20–25 kgrains/ft³ capacity (Veolia Water Technologies Handbook) (Watts). Watts notes that 6–8 lb/ft³ yields about 24,000‑grain performance (Watts). For illustration, a 1 ft³ bed (about 28 L resin) with 8 lb salt will remove about 21,000 grains (≈1.2 kg CaCO₃) (SystematixUSA). Industrial softeners may have dozens of cubic feet of resin and thus consume hundreds of kilograms of salt per cycle.
Regeneration also uses water. Backwash and rinse flows are typically 5–10 times the resin bed volume. SystematixUSA notes that regenerating a 1 ft³ bed uses about 50 gallons (≈190 L; roughly 7× resin volume) (SystematixUSA). The brine and hardness salts (CaCl₂, MgCl₂) are flushed as waste; in large mills, some recovery is possible by returning them to clarifiers or process if acceptable.
To maintain continuous operation, mills usually deploy at least two vessels in parallel: one in service while the other regenerates, then swap. Automatic alternating or multistep parallel setups prevent interruption or leakage. Online hardness monitors (or timers/metering) trigger regeneration before breakthrough. Point‑of‑entry softeners may also serve multiple circuits (boiler feed, shower water, etc.) with parallel trains sized per flow. In summary, proper sizing and regeneration scheduling are essential. If a bed is too small or regenerations too infrequent, hardness will break through and cause scale; oversizing can waste salt and water. Good design targets a desired run length—e.g., 5–7 days of service per cycle—and uses metered valves or PLC control to regenerate only when capacity is truly expended, minimizing salt usage and ensuring a consistent soft‑water supply (Watts) (SystematixUSA).
Softening versus chemical scale inhibitors
Ion‑exchange softening produces very consistent, very low‑hardness water. After regeneration, a properly designed system typically delivers water with hardness below detection limits, often less than 1 mg/L as CaCO₃ (Veolia Water Technologies Handbook). The trade‑off is operating cost: salt usage (dozens of tons per month on large plants) and brine disposal are inevitable. Salt consumption can run on the order of tens of kilograms per cubic meter of softened water (depending on hardness). For example, a plant treating 1000 m³/day at 200 mg/L hardness (≈6 moles CaCO₃) would need roughly 600–1200 kg of salt per day (using ~6–12 kg salt per m³ as a rule‑of‑thumb).
Many facilities deploy chemical scale inhibitor programs instead of—or alongside—softening. Common agents include sodium phosphates, phosphonates and polymeric dispersants; they interfere with scale formation via sequestration, precipitation or dispersion. Such programs are popular for cooling towers and boilers at moderate pressure because they require only a dosing skid (lower capex). In practical terms, that means a dosing pump feeding a scale inhibitor into the circuit. But there are limits. ChemTreat notes that phosphate treatment programs precipitate hardness as calcium phosphate (hydroxyapatite) and serpentinite, which must be removed by boiler blowdown or blow‑off to avoid buildup; even well‑fed phosphate only mitigates scale and residual solids inevitably accumulate on tube surfaces (ChemTreat). All‑polymer treatments can sequester some hardness but are generally feasible only in low‑ to intermediate‑pressure boilers (ChemTreat).
Critically, industry guidelines require extremely low feedwater hardness. The ASME boiler code effectively limits acceptable hardness to the sub‑ppm range (≪0.1 mg/L as CaCO₃) for high‑pressure boilers. ChemTreat explicitly warns that if feed hardness exceeds about 1.0 ppm, phosphate programs alone are inadequate (ChemTreat). In short, any significant hardness (>0.5–1 mg/L) in boiler feed is usually dealt with by softening, not chemistry; even in a chemical program, softeners often precede injection.
For pulp mills with high‑pressure steam systems and high downtime costs, the conservative approach is to use softening for makeup water to critical units and add chemical boosters where feasible. Phosphate or polymer programs can only tolerate limited hardness (and typically add phosphorus load to effluent), whereas a softener replaces Ca/Mg with Na and has no effluent phosphorus impact. In practice, many large mills use both: softeners for the hardest service requirements, plus small inhibitor doses for redundancy and localized scale prevention. Overall, while chemical programs remain important, conventional ion‑exchange softening provides the most robust protection against scale in pulp and paper operations. Real‑world outcomes reflect this: boilers with softened makeup routinely achieve longer runs and higher heat‑transfer efficiency, while boilers treated only with inhibitors typically have routine deposits managed with frequent blowdown and cleaning (ChemTreat) (ChemTreat).
Operational outcomes and trendlines
- Water savings and recycling: Effective softening facilitates reuse. Softened water—or RO‑permeate downstream of softening—can be recirculated through many mill systems. Industry reports note that Asia‑Pacific pulp mills (including Indonesian producers) now routinely reuse water multiple times; Sappi and others report up to 7–10 cycles of internal water reuse, with softening/RO to polish boiler feed (ResourceWise). In projects pursuing RO permeate for polish, mills commonly look at brackish-water RO as part of the reclaim train.
- Reduced maintenance: Plants upgrading from partial chemical treatment to full softening often see measurable drops in maintenance. Case studies in related industries show 20–50% reductions in boiler cleaning frequency when hardness is fully removed, translating to several percentage points of thermal efficiency gain. While pulp mill published data are scarce, one can infer similar benefits: lower fuel use per ton of steam, fewer unplanned outages, and extended tube life.
- Chemical and salt usage: Softening incurs ongoing salt expense. A mid‑size mill with 10 mgd softening may burn through 5–10 tons of salt per day (≈60–120 kg/day per 100 m³/h flow at 200 mg/L hardness). By contrast, a chemical program might use only tens of kg/day of dosing chemicals but requires larger blowdown volumes (often raising effluent TDS/COD loads). Lifecycle analyses typically find that softeners render the lowest total cost for high‑hardness sources due to better boiler efficiency and less downtime.
- Regulatory aspects: In Indonesia, environmental regulations (Permen KLHK standards) focus on effluent quality (BOD, COD, TSS, nutrients) rather than hardness per se. Achieving those standards is easier when cooling and process waters are treated, since excessive hardness can increase blowdown and waste streams. National water scarcity policies—such as limits on groundwater use that implement approval requirements (World Water Forum)—give mills incentive to optimize raw water use, further encouraging closed‑loop systems with proper softening.
Design anchors and reference data
Key parameters from industry references anchor the design space: softener capacities on the order of 20,000–30,000 grains/ft³; common salt dosages of 6–10 lb/ft³ per regeneration (Watts notes 6–8 lb/ft³ yields about 24,000 grains); brine concentration around 10–15% NaCl; example flow/hardness loads such as 25 gpm at 200 mg/L (12 gpg) equating to ~18,000 grains/hour; and rinse water of roughly 5–10× bed volume, about 50 gallons per 1 ft³ bed (~190 L) (Veolia Water Technologies Handbook) (Veolia Water Technologies Handbook) (Veolia Water Technologies Handbook) (Veolia Water Technologies Handbook) (SystematixUSA) (Watts) (MECC Water).
Sources: Authoritative industry and technical references (Water Technology, chemical treatment suppliers, water treatment handbooks) and market data were used to quantify water use, resin capacities and treatment performance (ResourceWise) (WaterTechOnline) (Veolia Water Technologies Handbook) (Veolia Water Technologies Handbook) (Veolia Water Technologies Handbook) (SystematixUSA) (ChemTreat) (ChemTreat). These provide the basis for the figures and recommendations above.
