High-speed air and quartz‑hard dust are grinding through elbows and valves in cement packaging lines, turning maintenance into a profit lever. With outages pegged at about $300,000 a day, extending component life is now an operating mandate, not a nice‑to‑have.
Cement moves on air. In packaging lines, pneumatic conveyors (air-driven pipelines for powders) shuttle product from silos to bagging and loading points. With more than 4 billion tonnes of cement produced annually (Atlas Copco), small reliability gains scale fast.
Downtime is expensive: one industry source estimates a single day’s outage at a 1 Mt/year plant at roughly $300,000 (UptimeAI). Plants target equipment uptime in the 90–99% range, and pneumatic wear is a prime limiter. The physics are unforgiving: cement dust is highly abrasive (silica-rich particles at ≥6–7 on the Mohs hardness scale, a relative scratch‑resistance measure), and dilute‑phase airspeeds often run 20–50 m/s, driving severe impact and sliding abrasion.
The industry sums it up bluntly: “excessive wear and abrasion in a pneumatic conveying system can seriously impact your profitability,” via part replacements and lost production (Progressive Products). In packaging, trouble concentrates at pipe bends/elbows, valves and feeders, and at every fitting where flow speed changes abruptly.

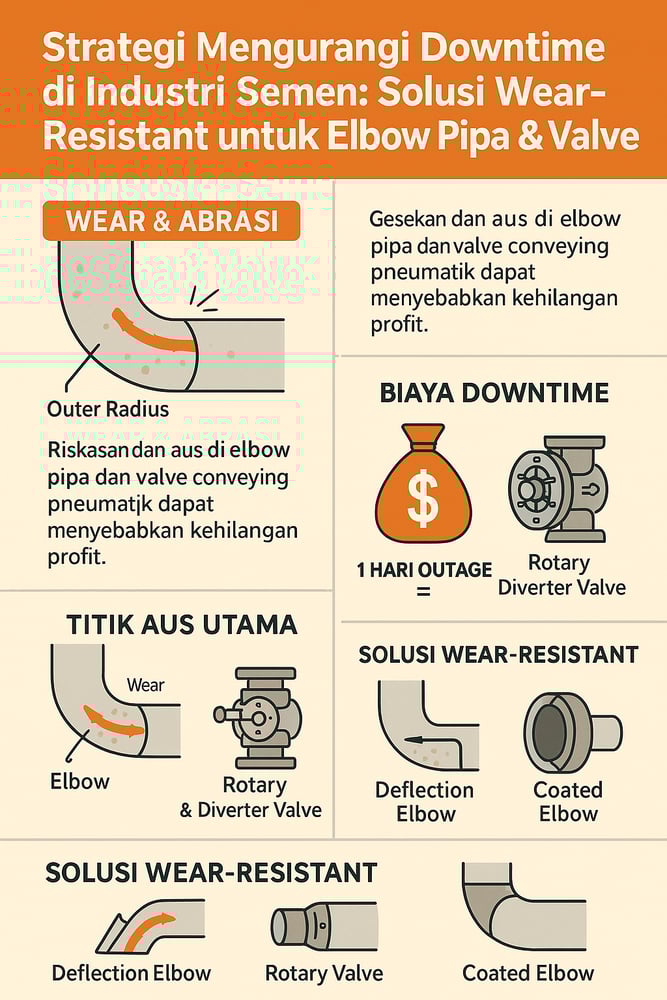

Elbows and bends: impact wear concentration
Abrasive particles in high‑speed airstreams slam into the outer wall of elbows, often forming a sliding bed that grinds relentlessly. Lab and field data show elbows suffer the worst wear (Progressive Products; Bulk‑Online). Operators report conventional steel elbows wearing through in a few years, prompting costly welding repairs, while modern deflection or coated elbows can last decades.
One ready‑mix plant retrofitted deflection elbows (“Smart Elbows”) and virtually eliminated elbow failures — an elbow installed in 2001 was still serviceable nearly 20 years later (Bulk‑Online). The owner estimated the retrofit saved roughly two weeks of production downtime per plant (about 150 t/day output; t/day = tonnes per day) by 2020 (Bulk‑Online; Bulk‑Online).
Deflection elbows work by inducing a rotating “vortex” that redirects incoming cement around the bend rather than into the wall (Bulk‑Online). Wear drops further with lead‑in straight runs and by minimizing free‑fall distances before elbows; operating only ~20% above the saltation velocity (the minimum airspeed to keep particles suspended) markedly reduces erosion (Progressive Products).
Designs that split bends into replaceable segments (for example, many 30° sections) allow swapping only the worn elements instead of the whole elbow (Making.com). Dense‑phase (slug) conveying — slow‑moving plugs rather than a fast dust cloud — also reduces abrasion because the slug contacts only a small fraction of the pipe at once (Vortex).
Rotary and diverter valve erosion
Rotary airlocks/feeder valves (pressure‑sealing feeders) and diverters absorb constant particle attack. In drop‑through rotary feeders (typical up to ~1 bar), inlet areas and rotor heels/tips see heavy wear; over time, clearances widen as rotor tips are “destroyed” by impact, driving air and dust leakage that accelerates wear and cuts efficiency (Cement Products). High‑pressure blow‑through feeders often suffer end‑plate erosion.
Diverter valves concentrate wear at sealing surfaces and internal chambers. Modern wear‑protected diverters exploit a self‑lining effect: a thin layer of conveyed material builds up on one side to shield the housing (Cement Products). Critical surfaces are frequently lined with harder materials to slow erosion.
Slide gates and pinch valve sealing
Slide‑gate feeders, pinch valves (rubber‑sleeve valves), butterfly/poppet valves, and slide knives face abrasive leakage at seal edges. Under high pressure, even minor misalignment or scratches let fine cement erode sealing lips. Pinch valves avoid metal‑to‑metal contact but sleeves erode and require periodic replacement.
While wear here tends to be slower than at elbows, failure of a pressure‑sealing valve can be catastrophic (spillage, dust cloud) and is often detected only when line pressure drops. Inspection of valve plates, sleeve integrity, and actuator backlash becomes a critical routine.
Wear‑resistant linings and coatings
Ceramic linings: Polycrystalline alumina or silicon‑carbide tiles inside elbows, valves, or straight pipe raise hardness to ~9–9.5 on the Mohs scale (nearly diamond‑hard), versus ~5.7 for ordinary steel (Progressive Products). One analysis reports ceramic‑coated elbows lasting 8–10× longer; for example, a plain elbow replaced every 2 months extends to 16–20 months under identical service (Progressive Products).
Tungsten carbide overlays: Thin tungsten‑carbide cladding on elbow interiors or rotor tips achieves ~8–9 Mohs hardness and metallurgical bonding to the substrate, excelling against sliding abrasion (Progressive Products). OEMs often apply it to rotor tips and slide plates; Coperion’s DuroProtect feeders use tungsten‑carbide on rotor tips for cement service (Cement Products). Note: carbides can crater under large‑particle impacts, so placement matters.
Hard chrome plating: Chrome layers ~80–130 μm on housings, rotor faces and slide gates add ductile wear protection and moderate corrosion resistance; Coperion’s “DuroChrom” is applied on end plates and rotor tips for moderate pressure/hardness duties (Cement Products). Systems may combine chrome, carbide and ceramic for graded protection.
Ni‑Hard cast iron: Many elbows use Ni‑hard, a nickel‑bearing white cast iron around ~600 HB hardness, valued for toughness and shock resistance in high‑temperature dense‑phase lines. Some elbows are carbonitrided for additional surface hardness (Making.com). Even so, silica‑rich cement can outmatch Ni‑hard; ceramics are harder. Ni‑hard bends are typically short‑radius and thick‑walled with replaceable segments (Progressive Products).
Polymer/rubber linings: Less common in cement pneumatic service (heat and dust), UHMW polyethylene or rubber can line low‑impact ducts to damp vibration and resist adhesion. Wear life is shorter; they see use where streams are less abrasive (e.g., flyash injections), while metal/ceramic linings dominate for cement.
Flow‑turning designs and sacrificial sleeves
Deflection elbows reduce direct wall strikes by creating a controlled vortex. Case histories show that investment can “virtually” eliminate worn elbows, related downtime and recurring maintenance costs (Bulk‑Online; Bulk‑Online). Tube‑in‑tube designs or sacrificial sleeves extend service by letting operators replace a worn inner layer without cutting out the main pipe. Inserts made from wear steels (for example, Hardox) or chromium carbides trade higher part cost for reduced downtime.
Preventive routines and spares planning
Regular inspection (including ultrasound or borescopes for lining thickness) and time‑based replacement reduce surprise failures. One mineral plant cut annual repair costs by 25% through proactive component replacement (Mactex). If an elbow’s life is typically 2–3 years, changing it at two years unless inspection proves otherwise can avoid leaks.
Documentation that lists wear items and essential spares enables quicker recovery; “keeping parts in stock reduces downtime during repairs” (Mactex). Stocking common elbows, rotor seals and valve rings can prevent weeks‑long outages.
Cleaning, back‑pressure and blockages
Dry cement can cake and bridge. Maintaining pulse‑cleaned bag filters and vent lines prevents back‑pressure that can drive cement into pipes and worsen wear. Tailored cleaning (pressure blows or packed pellets) cut one bulk handler’s pipeline clogs by 40% after program adoption (Mactex).
Clogged elbows or valves starve downstream conveyors and often lead to sudden dumps, triggering costly corrective downtime. Routine clearing and vent maintenance therefore correlate directly with availability.
Velocity set‑points and layout choices
Conveying velocity is the master wear variable. Running air power just above the minimum is recommended because “by setting air power just above the minimum, small changes in velocity have a big impact on wear” (Progressive Products). In practice, systems often operate only ~20% above saltation velocity.
Layouts that avoid free‑fall into elbows (using diverter tees at high pipe entries) and minimize the number of bends reduce both wear and pressure drop. Continuous‑radius bends and straight runs ease the duty on elbows and valves.
Dense‑phase upgrades and valve loading
Dense‑phase systems move large plugs at 3–10 m/s instead of clouds at 25–50 m/s, greatly reducing abrasion. A project example used twin 1.1 km lines arranged as alternating pressure vessels, each delivering 250 tph in slug flow over 1,100 m runs; no bends were used to maximize capacity, though maintaining plug flow requires care (Cemax; Cemax).
Vent/pulse receivers isolate sections so feed isolation valves see lower differential pressure, extending service (Vortex). This configuration also limits material degradation.
Training, documentation and data
Trained crews with accurate manuals respond faster to early warnings — unusual noise, pressure changes, dust leaks — which “helps prevent excessive downtime by enabling swift action when issues arise” (Mactex). Time‑based rebuilds anchored to logged run‑hours per elbow/valve cut surprise failures even without advanced analytics.
Plants are adopting sensors (differential pressure, flow meters, vibration) and IoT/AI tools to forecast failures, with the industry pushing beyond 90% uptime (UptimeAI). KPIs such as MTBR (mean time between repairs) and availability make the gains visible.
Economic impact and practical takeaways
Targeting high‑wear points with hard linings and flow‑turning designs can multiply service life — often 8–10× for elbows (Progressive Products) — and prevent disruptive failures. Case histories show that upgrading critical elbows and valves can save weeks of downtime annually (Bulk‑Online).
Layered with disciplined maintenance — from spare‑parts inventory to preventive cleaning — facilities have cut repair costs by 25% and pipeline clogs by 40% (Mactex). Given that unplanned shutdowns run on the order of $10^5/day (UptimeAI), even modest wear reductions deliver strong ROI. In short, every engineering choice — from a ceramic‑lined elbow to a velocity set‑point — should be weighed for lifetime and downtime impact; data‑driven plans will help Indonesian cement plants meet regulatory efficiency targets and maximize throughput.
Sources: industry and technical references, including manufacturer case studies and maintenance reports: Progressive Products; Cement Products; Bulk‑Online; UptimeAI; Mactex; Mactex; Cement Products; Vortex.
