Automotive paint lines are squeezing more life from cleaner and phosphate baths with oil skimmers, coalescers, solid‑sludge control, and smarter chemistry. In high‑volume plants, even a 1% first‑run yield lift tied to cleaner pretreat baths is worth $0.5–$1.5 million a year (pall.com).
In electrophoretic coating (e‑coating — depositing paint particles onto a charged part), the least glamorous stages — alkaline cleaning and phosphating — make or break quality downstream. When baths load up with tramp oil, sludge, or depleted chemistry, defects, downtime, and disposal bills follow. The U.S. EPA has documented that “metal finishers periodically discharge process baths when they lose their effectiveness because of chemical depletion or contamination” (p2infohouse.org).
Regulatory pressure adds urgency. Indonesia’s Permen LH 03/2010 sets “baku mutu” (industrial effluent limits) for parameters like pH, oil, and metals, making fewer bath dumps a compliance and cost win (harumtirtajaya.com). Meanwhile, in automotive throughput, a seemingly small 1% improvement in first‑run coating yield can translate into $0.5–$1.5 million per year, per line (pall.com).
Oil removal in alkaline cleaners
Alkaline cleaners (strong bases plus surfactants and chelants) strip oils and greases that then carry into the bath. Uncontrolled, these oils float or emulsify and quickly foul performance. Passive settling is slow; active removal is now standard practice.
Oil skimmers — belt, drum, disc, or mop designs using oleophilic (oil‑attracting) surfaces — continuously lift floating oil (jenfab.com). In one metal shop, adding a belt skimmer to a dip tank extended solution life from ~4 weeks to 3–4 months between changes (wateronline.com). Running unattended and “removing nearly all the oil from the wash,” skimmers reduced recharges and defects, with users reporting up to 75–90% longer intervals when oil is continuously removed (environmental-expert.com; wateronline.com). Many lines specify a free‑oil loop using an oil removal module such as an oil removal unit to keep surface films in check.
Coalescers target what skimmers miss: small or emulsified droplets. By directing flow through coalescing media or plates, they “attract small oil droplets…allow them to collect until they are large globules that can float to the surface,” often pairing with a skimmer to lift the separated layer (jenfab.com). In spray washers, a coalescer sidestream “quickly remove[s] oil from solution when cleaning at high rates,” improving finishes and cutting chemical overdosing aimed at combating contaminants (jenfab.com; environmental-expert.com).
Quantitatively, capacity scales with model, but systems routinely handle several liters per hour; belt skimmers commonly remove 1–2 L/hr from medium tanks. Continuous oil removal can cut aqueous bath disposal by 50–80%, and in closed‑loop degreasing, solvent makeup reductions near ~99% have been reported (finishingandcoating.com). Overall, skimmer/coalescer programs have multiplied bath life, including a documented 4–16× interval increase (wateronline.com).
Sludge filtration in phosphate stages
Phosphate conversion baths (phosphoric acid plus metal ions producing a corrosion‑resistant crystal layer) generate ferric and zinc phosphate sludge. As solids build, free acid drops and coating efficiency suffers, driving premature dumps.
Batch cleanups traditionally drain tanks through filters. Using pressure housings — for example, 316L stainless cartridge housings in acidic service — with bag or cartridge filters (often 10–50 µm) or vacuum/pressure filters captures precipitates on drain‑down; staying ahead on media changeouts prevents carryover. Without filtration, operators must “pump out the entire bath… and discard” for each cleanup, with sizable chemical and downtime costs (innovationfilter.com).
For continuous removal, side‑stream centrifuges spin out “even the smallest micro‑particles of zinc phosphate,” returning cleaned solution by gravity and eliminating disposable media; suppliers emphasize low maintenance and “uniform filter life” from media‑free designs (innovationfilter.com). On ferrous lines, in‑line magnetic traps ahead of phosphating intercept iron fines, and precoat systems keep filter fabrics from waxy or colloidal blinding, extending service.
Executed well, sludge control sustains coating efficiency for many months. Single‑stage organic‑phosphate systems even tout that “the tank never needs to be discharged,” as oils are immobilized and solids filtered continuously (riveerpretreatment.com). Conventional multi‑stage zinc‑phosphate setups may still need dumps every few months, but continuous filtration commonly doubles or triples intervals.
Chemical programs and bath stability

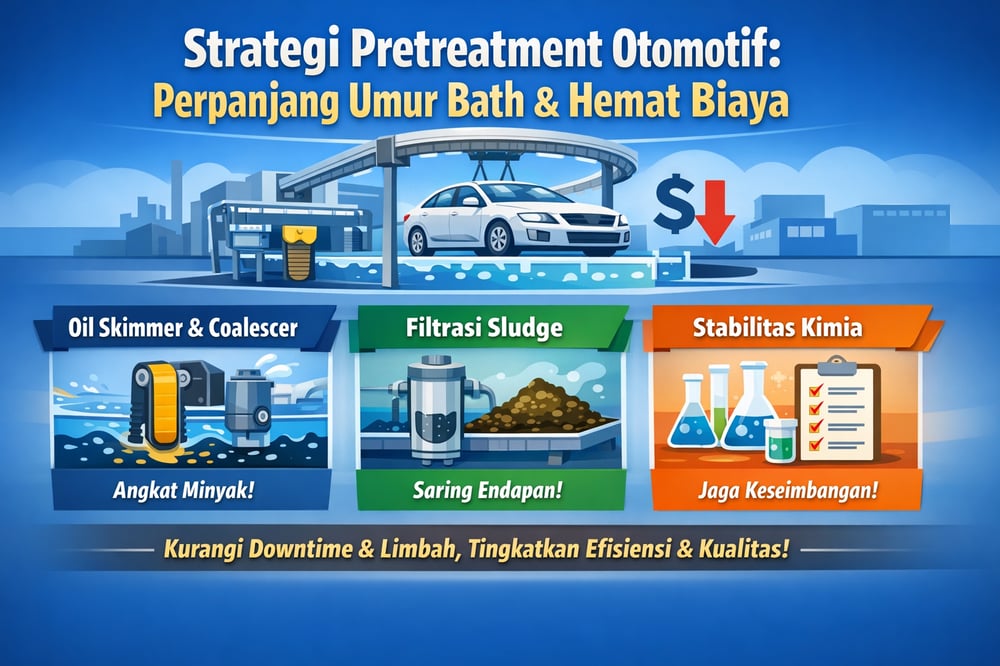

.png?width=1000&height=667&name=Automotive%20pretreatment%20strategies%20infographic%20(1).png)
Alkaline cleaners blend strong bases (e.g., sodium hydroxide, silicates, phosphates/carbonates) with surfactants (anionic, nonionic, amphoteric) and chelants to emulsify oils and disperse soils. Additives including defoamers and biocides control foam and bio‑growth; a dedicated antifoam is often paired with high‑agitation washers. Water hardness must be managed via chelants or soft feed; many paint shops specify a front‑end water softener to prevent scale that depletes alkalinity. Properly formulated, “self‑balancing” cleaners can “be used for an entire day without changing” in dragout (carryover) tanks, with monitoring needed only monthly (riveerpretreatment.com).
Phosphating baths combine phosphoric acid with metal ions (Zn, Fe, Mn, Ni, Ca, etc.). Accelerators such as sodium nitrite, sodium nitrate, organic sulfonates, or peroxides promote nucleation and fine crystal formation. Nitrite remains popular for cost and its self‑neutralizing action — it “precipitates iron out as sludge and neutralizes the free acid” — though the tradeoff is FePO₄ sludge (finishing.com). Alternatives like nitrates or organic accelerators can produce less sludge and tune free‑acid behavior. Calcium‑modified zinc‑phosphate baths yield much finer crystals, with grain size reduced from ~25 µm to ~4 µm, improving coating uniformity (mdpi.com).
Control in practice hinges on daily titration of free and total acid and proportional replenishment. Tricationic zinc chemistry adds Ni and Mn along with Zn for performance on galvannealed steels, and chelating buffers stabilize pH while managing contaminants; some programs add compounds in side tanks to complex strip‑out metals, slowing sludge growth. Organic degradation byproducts can acidify baths; in degreasers, neutralizing stabilizers extended solvent life from ~3 months to ~11 months in one program (finishingandcoating.com). One vacuum‑degreaser user went 11 months without a bath change (versus quarterly) after NGO stabilizer addition (same source). Post‑treatment corrosion inhibitors (e.g., silicate passivators or rare‑earth stabilizers) counter bath‑acid carryover.
Implementation guide for engineers
Baseline assessment: a program starts by characterizing bath conditions. Typical measures include oil content in cleaner tanks (e.g., infrared oil‑in‑water readings), sludge depth in phosphate tanks, contaminants (metal ions, organics), and phosphate free acid/total acid. Coating performance checks (coating weight, adhesion) set baselines. EPA guidance underscores that discharges occur when “effectiveness…chemical depletion or contamination” hits thresholds (p2infohouse.org), so early detection is the objective.
Oil removal: device selection reflects oil load and droplet size. For heavy free‑oil carry‑in, belt or drum skimmers positioned for continuous surface capture are low‑cost workhorses (jenfab.com). For fine emulsions in agitated spray washers, a coalescer loop in the recirculation circuit is common (jenfab.com). Residence time matters; pump circulation that allows >5–10 minutes of hold fosters coalescence. Field results show a basic skimmer can quadruple solution life, with one shop extending changes from ~1 month to 3–4 months (wateronline.com).
Sludge filtration: phosphate and dip tanks benefit from continuous solids removal. Options include pressure housings with bags or cartridges, vacuum belt filters, or centrifugal separators that return clarified fluid by gravity while keeping maintenance low (innovationfilter.com). For batch drains, standardizing 25–50 µm bag filtration captures bulk sludge. Magnetic traps before acidic steps intercept ferrous fines. Media maintenance should follow pressure‑drop or time‑based schedules. In well‑filtered zinc‑phosphate baths, vendors report tanks that “never need to be discharged” and run on top‑off (riveerpretreatment.com).
Chemical additions: partnering with suppliers to tailor detergents and phosphating formulas supports stability. High‑quality alkaline cleaners with robust surfactants and buffers are maintained by regular pH titration; foamed‑out concentrate is removed. Phosphate control centers on daily free‑acid checks and replenishment with phosphoric acid or nitrite salts; if nitrites drive sludge, partial switches to nitrate or organic accelerators are considered (finishing.com). Tricationic or calcium‑modified systems improve stability and grain size (mdpi.com). Accurate metering via a dedicated dosing pump keeps additions consistent.
Operational controls: routine checks of oil layer thickness, clarity, conductivity, and pH, plus control‑charting of free acid, metal ratios, and surfactant dosage, tie actions to thresholds (e.g., drain/clean triggers or coating‑weight deviations). Upkeep of skimmer wipers and coalescer media is typically per shift.
Review and refine: tracking days between changes, chemical use, and scrap/rework quantifies impact. One plant reported fewer recharges and better salt‑spray resistance after adding a skimmer and improving filtration (environmental-expert.com). If sludge accrues too fast, capacity can be added or ultrafiltration introduced on a sidestream using an ultrafiltration module.
Compliance and environmental benefits: extending bath life reduces hazardous wastes (spent baths, sludges) and lowers effluent load, aiding compliance with Indonesian “baku mutu” limits for pH, heavy metals (e.g., Zn, Fe), and oil (harumtirtajaya.com). Case reports show multi‑fold bath‑life increases and major cost reductions — including shifts from quarterly to annual changeouts (finishingandcoating.com) — lifting productivity and keeping coating quality steady without frequent replacements.
