The farm’s quiet ROI machine: design, audit, and tech that make irrigation 10–30% leaner

From pressure‑compensating emitters that cut pumping energy by 43% to soil sensors that lift yields while slashing water, irrigation is becoming a data and hardware story. The throughline: design for uniformity, audit relentlessly, and invest where the numbers pencil out.

Industry: Agriculture | Process: Drip_&_Sprinkler_Irrigation_Systems

Effective irrigation starts on paper and pays back in the field. The goal is distribution uniformity (DU — how evenly water is applied) at 90%+ and minimal losses, tuned to water source and field characteristics (edis.ifas.ufl.edu) (edis.ifas.ufl.edu). In practice, targets of 90%+ distribution uniformity are used in equipment specs.

The payoffs are measurable. Low‑pressure pressure‑compensating emitters (PC — devices that hold flow steady across a pressure range) have delivered 43% pumping energy reductions and 22–31% cuts in pump and energy costs without losing much uniformity (mdpi.com) (mdpi.com). Variable‑rate irrigation (VRI — zone‑by‑zone rate control) has delivered 9–26% water savings, often up to ~35% in practice (grainsa.co.za). And sensor‑based scheduling has boosted crop productivity by 25% while cutting water use 30% in a 1‑ha test (irdhjournals.com).

Irrigation system design fundamentals

For drip systems, properly spaced emitters (built‑in or button), filters, and regular flushing limit clogging (edis.ifas.ufl.edu). Filters can include an automatic screen filter to remove continuous debris at low maintenance. Where fine particulates are an issue, a cartridge filter polishes the water stream.

PC emitters are recommended on sloping or long fields to maintain uniform flow; low‑pressure PC emitters can cut pumping energy by ~40% and pump/energy costs ~22–31% without losing much uniformity (mdpi.com) (mdpi.com).

For sprinklers, nozzle choice and spacing should ensure head overlap, with operating pressure matched to nozzle design. Micro‑sprinklers positioned close to the soil are more efficient than high‑pressure overhead heads (edis.ifas.ufl.edu) (edis.ifas.ufl.edu).

Zoning — grouping plants with similar water needs and terrain in the same zone — enables tailored schedules. Soil and crop matter: sandy soils benefit from frequent, low‑dose irrigation, while clays accept larger, less frequent applications (edis.ifas.ufl.edu) (edis.ifas.ufl.edu). Hoses/pipes and pump capacity should keep pressure and flow steady over the wetted area to achieve high uniformity. When surface water introduces suspended solids, a sand and silica media filter can serve as a primary barrier ahead of drip laterals.

Irrigation performance auditing

Regular audits catch problems and tune operations. A complete audit includes a uniformity test, a pump performance test, and a review of overall efficiency (runoff, deep percolation, and related losses) (fyi.extension.wisc.edu) (fyi.extension.wisc.edu).

Uniformity tests — catch‑can/rain‑gauge layouts for sprinklers or emitter flow checks on drip — should be performed every 3–5 years (fyi.extension.wisc.edu). Poor uniformity (far below 90% coefficient of uniformity, CU) often points to leaks, clogs, misaligned sprinklers, or pressure problems; Wisconsin auditors warn that “a low coefficient of uniformity could lead to plant stress or disease because of water deficits or excesses,” and aim for >90% uniformity (fyi.extension.wisc.edu).

Pump output should be checked against design curves to catch wear or cavitation, and to flag high energy use (fyi.extension.wisc.edu) (fyi.extension.wisc.edu). Data loggers or flow meters can identify unexpected zone‑to‑zone variation.

Pressure‑compensating emitters: energy and uniformity

PC emitters keep flow constant over a range of inlet pressures and improve uniformity on uneven terrain. They cost more per unit but can enable smaller pumps; a Morocco/Jordan field trial found low‑pressure PC emitters reduced pumping energy 43% and cut pump+farmer energy costs by 22–31% (mdpi.com) (mdpi.com).

The trade‑off is slight: uniformity dipped marginally in that study (e.g., 85–90% vs 87–96% for conventional), so site specifics drive the net benefit. In practice, PC emitters are especially worthwhile on slopes or long lateral runs where pressure drop is severe (mdpi.com) (mdpi.com).

Variable‑rate irrigation: site‑specific economics

VRI modulates water by soil maps or yield data and can shut off flow on tracks, wet spots, or buildings. Reported water savings range 9–26%, often up to ~35% in practice (grainsa.co.za). Farmers report “record yields” and pasture gains (grainsa.co.za).

Economics vary widely: one analysis found only a modest electricity saving (a cost saving of R746 for a 30‑ha pivot), so VRI paid off only when yield/profit benefits or very high water/energy costs were included (grainsa.co.za). Site‑specific models that reflect local water costs, yield response, and field variability are necessary to assess VRI investment.

Soil moisture sensors and smart controllers

In‑field moisture probes and capacitance sensors provide real‑time soil wetness to trigger irrigation only when needed. An Indonesian 1‑ha test reported +25% crop productivity and −30% water use versus conventional scheduling (irdhjournals.com).

U.S. trials show yield upticks (+4 bu/acre corn, +23 lb cotton) and water savings, and an example from UGA Extension indicates a ~$2,200 system (100‑ac) could pay back in one season via incremental revenue ($40–60/acre) plus lower pumping costs; in that example, sensor costs (~$16/acre) were offset by higher yields and avoided over‑irrigation (farmprogress.com) (farmprogress.com) (farmprogress.com).

Maintenance matters: studies showed up to 50% reading drift over 6 weeks if sensors were uncleaned, underscoring regular calibration/cleaning as critical to ROI (agritechinsights.com).

Distribution uniformity test procedure

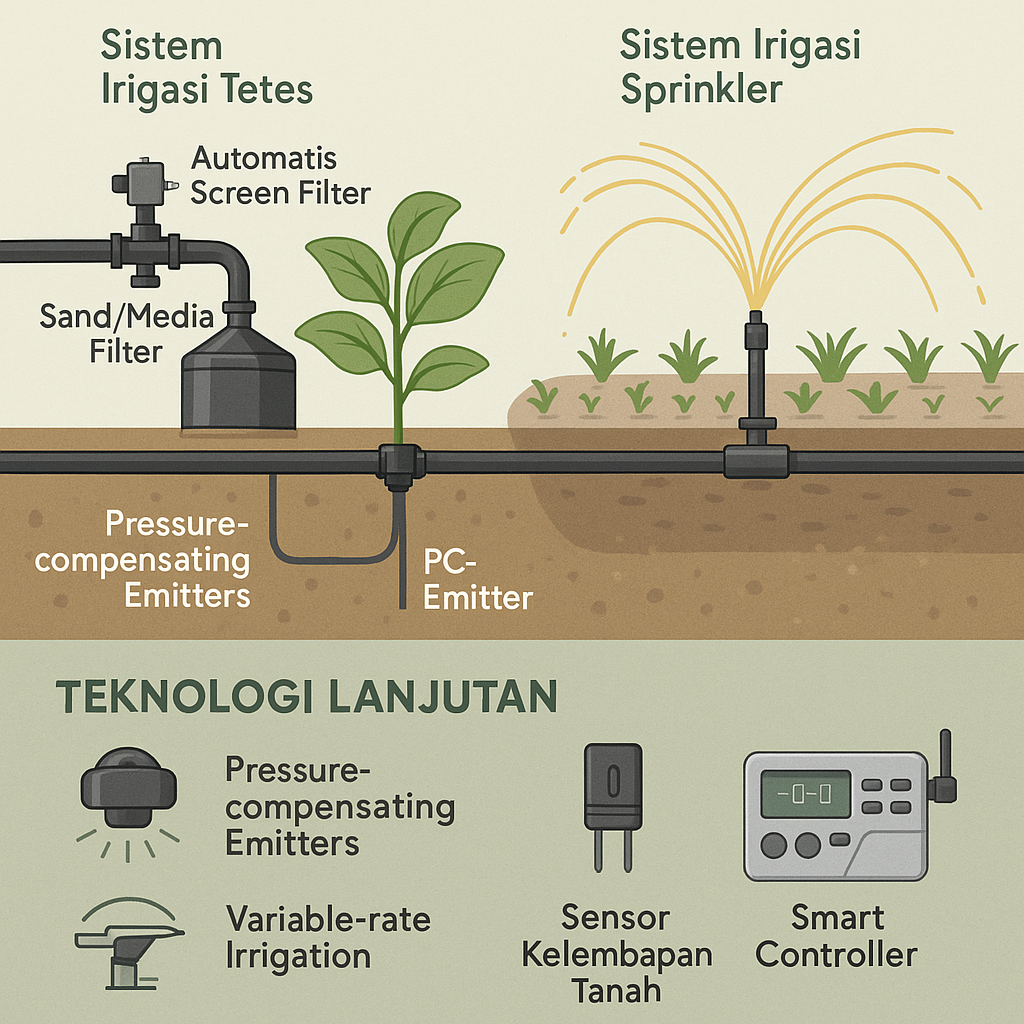

ChatGPT Image Oct 1, 2025, 11_28_26 AM

For sprinkler systems, lay out 20–25 graduated catch cans on a grid across a representative zone (often a straight line across the machine), run the system at normal pressure for a set time, then measure each can’s volume (fyi.extension.wisc.edu). Compute DU as (average of lowest‑40%‑of‑cans ÷ overall average) × 100%. Aim for DU ≥ 90%. (<90% suggests significant faults.)

For drip systems, measure actual flow from a sample of emitters or weigh water output from drip lines over time; the same DU formula applies. Record and plot results to highlight clogging (low‑flow spots) or leaks/high‑flow spots. Testing should be done under clean filters and typical operating pressures. In many cases, pre‑test maintenance includes servicing an automatic screen filter to ensure debris does not bias results. Record pressures at main lines and submains as well.

Optimization after testing

Low outputs often indicate clogged emitters or filters — cleaning or replacement is indicated. High outputs can reflect overpressure; pressure regulators or repairs address broken lines. Where filtration needs persist after cleaning, a sand‑silica dual media filter can reduce 5–10 micron particles upstream.

If uniformity varies by location (e.g., uphill vs downhill), pressure regulators or PC emitters can be applied in specific runs. Large zones that starve far ends may be split into smaller circuits. Scheduling should be adjusted for real DU: if DU is below 100%, some areas get more/less water, and run‑times should compensate for deficits.

Scheduling by sensor and ET

Scheduling should combine DU data with soil moisture or evapotranspiration (ET — crop water use) to trigger irrigation only when depletion thresholds are reached. The University of Florida notes that even a well‑designed system “does not guarantee efficient irrigation water use unless appropriate irrigation scheduling exists” (edis.ifas.ufl.edu). Soil sensors can feed controllers or apps to track field‑by‑field needs, and DU maps can be overlaid with soil‑moisture or crop‑stress maps to validate problem zones.

Audit results also guide hardware upgrades: low uniformity due to variable soils may support a VRI case; when energy costs dominate, low‑pressure emitters or variable‑speed drives might be the best investment. This data‑driven cycle should repeat after major changes, with yield and water use (æyn WUE) tracked to quantify benefits. Over time, typical water savings of 10–30% have been reported for these practices and technologies (mdpi.com) (irdhjournals.com).

Sources: Authoritative research and field reports (edis.ifas.ufl.edu) (mdpi.com) (grainsa.co.za) (fyi.extension.wisc.edu) (irdhjournals.com) (farmprogress.com) were used to identify these best practices, security and ROI estimates. Each practice above is backed by data from peer‑reviewed studies or extension analyses (see citations).
