Root intrusion can cripple subsurface drip irrigation (SDI) in less than a year, but a mix of emitter engineering, depth strategy, and tightly controlled chemical routines is extending system life in orchards and vineyards.
Industry: Agriculture | Process: Drip_&_Sprinkler_Irrigation_Systems
Root intrusion — the invasion of tree and vine roots into drip emitters — is quietly taking down buried drip systems. Researchers warn it can become “a serious problem in a very short time,” sometimes in under a year (www.researchgate.net). In subsurface drip irrigation (SDI), root blockage and “pinching” of tubing are routine failure modes, especially where drip lines are shallow or water quality is marginal (agriculture.vic.gov.au) (www.researchgate.net).
The consequences go beyond maintenance headaches. A greenhouse study on spring wheat found drip lines buried 10–20 cm lost 20–60% of relative yield versus optimally placed lines (www.mdpi.com). One report noted that by 2019, drip‑irrigated orchard area in a region had shrunk dramatically — from roughly 266,000 ha in 2013 to under 66,700 ha — because fixed shallow irrigation failed to meet water needs and root channels grew shallow (www.researchgate.net).
Failure modes and crop impact
In mature orchards and vineyards, even short dry spells trigger roots to invade drippers. Cracked or plugged emitters reduce uniformity, stressing trees and cutting yields (www.researchgate.net). Avoiding root “magnets” — stagnant water pockets, debris-clogged inlets, and shallow wetting patterns — anchors most prevention playbooks (agriculture.vic.gov.au).
Installation depth and emitter layout

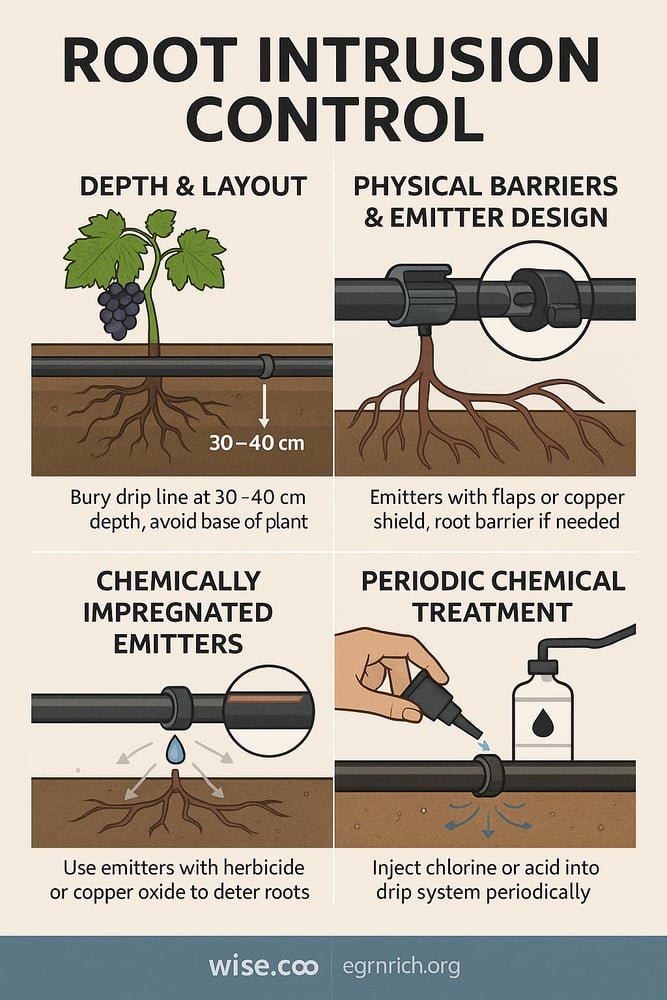

Depth is the bluntest instrument against intrusion. Burying drip lines at ≥0.30–0.40 m (30–40 cm) substantially reduces root entry while maintaining crop performance; a 50 cm depth eliminated intrusion entirely (0% intrusion) in a pot study but delivered ~62% of maximum yield, making 30–40 cm the widely cited compromise depth (www.mdpi.com). Emitters are placed under the canopy/drip line rather than at the trunk, and two laterals per tree row are often used to wet the active root zone evenly.
Emitter engineering and physical barriers
Design matters: roots often exploit weak points. Placing emitter orifices in pipe seams is a known entry path and is avoided in modern systems (www.researchgate.net). Anti‑root emitter designs include closing flaps or slits that seal when flow stops, raised deflection rims, and enlarged inlet chambers that push roots outward (www.researchgate.net).
Some products add local biocidal barriers. Rain Bird’s “Copper Shield” embeds a copper‑coated guard at each emitter, and Netafim’s UniRam XR uses copper‑oxide diaphragms; both inhibit roots on contact (www.greenindustrypros.com) (agriculture.vic.gov.au). Guidelines emphasize such copper‑treated drippers postpone or delay growth rather than fully prevent it (agriculture.vic.gov.au) (www.researchgate.net).
Filters and root screens at the mainline keep intruding roots and debris from junctions, while vertical root barriers can redirect roots away from laterals in heavy soils. System hygiene — removing leaves and debris that fall into emitters, which become “root magnets” — remains a frontline practice (www.greenindustrypros.com).
Herbicide‑impregnated and copper emitters
Chemical‑impregnated emitters offer another line of defense. Drippers loaded with trifluralin (TFN, a dinitroaniline herbicide) diffuse minute amounts into soil from a polymer matrix; the vapor‑phase TFN forms a protective zone that delays root intrusion, often extending life 2–5 times versus untreated drippers (license assumptions commonly use ~2.4×) (www.subsurfacedrip.info) (www.subsurfacedrip.info). Protection is temporary; reservoirs are typically depleted in ~2–3 years, after which intrusion resumes (www.subsurfacedrip.info).
Copper‑oxide impregnated emitters (e.g., Rain Bird XFS‑CV, Netafim XR) similarly deter roots on contact and are favored where herbicide use is constrained, with field experience often showing a season or two of delay relative to plain emitters; maintenance is still required (www.greenindustrypros.com) (agriculture.vic.gov.au).
In‑line chemical treatment protocols
Injection treatments serve as emergency or additive measures. Historical use of TFN injections (e.g., Treflan 5EC via SDI) faces tight EPA label limits — often only a teaspoon per hectare per year — making field compliance and dosing logistics challenging (www.subsurfacedrip.info). Excess TFN risks soil or water contamination and food‑crop residues, and any herbicide injection must follow label or extra‑label permit instructions (www.subsurfacedrip.info) (agriculture.vic.gov.au).
Non‑herbicidal chemistry is more common. Periodic chlorine injections at 400–1000 ppm between irrigations, or brief 1%–5% sulfuric or hydrochloric acid flushes, oxidize or denature root tissue and biofilms inside lines; studies report such chlorine or acid programs “help prevent root intrusion or remediate clogged emitters by oxidizing the roots” (www.researchgate.net). A /products/dosing-pump stabilizes chemical feed when growers run these routines.
Filtration, flushing, and hydraulics
System hygiene starts at installation with a full flush until clear water exits endcaps, followed by filtration sized to source water. Pre‑screening with an automatic screen filter reduces debris >1 mm that would otherwise collect at emitters. Dual‑media beds using sand/silica media handle fine silt that drives clogging and root attraction.
Polishing downstream with a cartridge filter captures 1–100 micron particles. Routine operations include opening end caps after each watering or daily to flush laterals; frequent flushing limits stagnant zones that attract roots. A pressure vacuum breaker or one‑way valve can maintain slightly negative pressure when off, reducing soil “sucking back” into emitters — a known intrusion stimulus (agriculture.vic.gov.au). Backflow prevention that keeps lines from draining is also used, although standing water tends to attract invading roots (www.greenindustrypros.com).
Chemical clean‑in‑place is scheduled at least annually — often at season start and mid‑season — using 250–500 ppm chlorine or acids adjusted near pH ~2, soaking 30–60 minutes before flushing with water. Where partial clogging is present, quarterly cycles are adopted (www.researchgate.net). Composite housings such as PVC/FRP cartridge housings tolerate chlorine and acidic environments common in these procedures.
Field inspection and performance monitoring
Routine checks of pressure and flow by zone provide early warnings; sudden drops often signal intrusion or leaks. Dry patches after irrigation indicate localized blockage, and probing around suspect emitters can confirm root presence. Diagnostic pressure‑compensating drippers help reveal gradual flow loss.
Keeping lines free of aboveground vegetation reduces debris deposition and shading that favor biofilm and root attraction. Filters and root screens on mainlines also limit entry at junctions.
Irrigation scheduling and root behavior
Water management is tuned to root behavior. Frequent irrigation minimizes aggressive root outreach during drying cycles. Deep, infrequent irrigation pushes roots downward but risks creating dry “attract zones” that target emitters. Multiple shorter irrigation shifts per week — “pulsed irrigation” — keep the wetted bulb moist without waterlogging, and roots tend to remain at the fringe rather than penetrating emitters (www.mdpi.com). Nutrient and algaecide loads are moderated to avoid fueling biofilms around emitters.
Replacements and alternative hardware
Hardware with prior intrusion or wear is replaced proactively. Where chronic blocks persist, growers shift to trifluralin‑ or copper‑impregnated dripline, or alternative emitter types. Emerging approaches, including essential‑oil coated driplines, are being explored and still require validation (patents.google.com) (www.researchgate.net). In extreme cases, microsprinklers positioned above ground around trunks bypass subsurface clogging at the cost of higher water use.
Consolidated practices and sources
A combined strategy — depth and layout at 30–40 cm, anti‑intrusion emitters, filtration and frequent flushing, and targeted chemical maintenance — materially reduces root intrusion and extends system life in orchards and vineyards (www.mdpi.com) (agriculture.vic.gov.au) (www.researchgate.net), supporting more reliable yields over the long term.
Sources: Authoritative irrigation and horticulture studies and guides (www.researchgate.net) (www.mdpi.com) (agriculture.vic.gov.au) (www.greenindustrypros.com) (www.researchgate.net).
