Overspeed, high vibration, and loss of lubrication are the three killers of steam turbines. Plants that wire their supervisory and protection systems for automatic, redundant trips prevent catastrophic failures and multi‑million‑dollar outages.
Steam turbines run at high speed, high temperature, and high pressure—an unforgiving mix where seconds matter. The hazards are stark: overspeed (uncontrolled speed excursion), excessive vibration, and lubrication loss. Each can cascade into bearing damage, rotor failure, or blade liberation without warning. Modern supervisory systems answer with redundancy: multiple sensors, layered logic, and an immediate trip that slams shut steam valves before damage propagates. Insurance guidance is blunt: “nearly all uncontrolled overspeed failures [are] catastrophic, resulting in blade failures, shaft breakage and retaining ring bursts” (Power Engineering). Regulators have seen how quickly events escalate: in one U.S. NRC report, a 3,600 rpm unit ran to 6,020 rpm, with pressures reported at 2.9× design (3,850 psig vs 1,325 psig) and a separate note “to have reached 2420 psig” (NRC).
In the broader HRSG context, operators often discuss upstream water/steam housekeeping—equipment such as demineralizers and condensate polishers—but the focus here is the turbine’s supervisory and protection system that automatically shuts the machine down when conditions turn abnormal.
Overspeed trip devices and testing
Overspeed is the classic runaway threat: a rapid load drop or valve malfunction lets a turbine accelerate beyond its normal regime. Protective devices are designed to cut steam flow immediately. International practice sets trip points only a few percent above rated speed—commonly around +10%—so the turbine never approaches destructive forces (Asia Pacific Energy Policy). Without intervention, centrifugal forces can shear blades or rupture casings (NRC; Power Engineering).
Protection design is intentionally independent and layered. Mechanical flyweight governors or electronic speed probes trigger solid mechanical or hydraulic trips that close main stop valves and dump energy. Redundancy is common; some units use two “overspeed bolts” on the shaft acting on dual trip plungers (Kupdf). Codes go further: a speed‑governing system must regulate flow under all conditions, keeping speed within ±5% steady‑state and limiting transients to <10% (Asia Pacific Energy Policy).
Operation standards are conservative for a reason. Insurers cite that uncontrolled overspeed is almost always catastrophic (Power Engineering) and typically expect annual or semi‑annual overspeed trip validation. Some OEMs have proposed extending intervals up to ten years—a move insurers criticize as trading short downtime for long risk (Power Engineering; Power Engineering). The conservative practice is clear: perform a full mechanical overspeed test at least annually and verify electronically mediated trips (including reverse‑power trips) more often. Mechanical components drift—“spring tensions… change over time”—so periodic checking and adjustment are essential (NRC).
The fail‑safe philosophy stacks defenses: high‑speed probes and mechanical flyweights, backup trip valves, and sequential interlocks. In one real‑world logic path, an alternator breaker trip (loss of electrical load) prompts the turbine trip valve to close; if that fails, the governor valve closes; if that fails, the mechanical overspeed bolt triggers (Kupdf; Asia Pacific Energy Policy).
Vibration monitoring and cut‑off
Excessive vibration flags rotor imbalance, misalignment, blade rubbing, or bearing distress. Even moderate increases raise stresses and heat—conditions that accelerate fatigue. ISO guidance illustrates the stakes: a 50 MW, 3,000 rpm turbine showing 200 µm peak‑to‑peak shaft vibration would sit in “Zone C,” considered unsatisfactory for long‑term operation (Turbo Monitoring). As POWER notes, vibration “causes blade structural problems” and increases bending stresses.
Supervisory systems track vibration via proximity probes or accelerometers at each bearing. Alarm setpoints follow ISO 10816/20816 or OEM tables, warning operators well before trip levels. When thresholds are crossed, the turbine trips to avoid rubs and collisions. Regulations explicitly call for vibration alarms; for example, Cambodian codes mandate an alarm when “vibrations of the steam turbine” exceed normal (Asia Pacific Energy Policy). Sensors are zoned (axial, radial), often redundantly, and advanced systems track phase angle and unbalance to predict failures.
As overhauls stretch, insurers now “expect” advanced vibration monitoring to manage risk (Power Engineering). Routine surveillance with alarms can catch 90% of bearing faults early (Power Engineering). Practical guidance lists “very‑high vibration and bearing temperature” as immediate trip conditions (Kupdf). Trip levels are set conservatively (zone B–C) so shutdowns occur before physical damage. The outcome is direct: early trips avoid rub‑corrosion and bearing failures that would otherwise drive large repair costs and downtime.
Lubrication system integrity
Hydrodynamic bearings (oil‑film bearings that support the shaft on a pressurized wedge of lubricant) require stable, clean oil. Loss of oil film—from pump failure, contamination, or depletion—leads to metal‑to‑metal contact, overheating, and rapid failure. Reliability analyses call out the pattern: “the most prominent failure mode is a loss of lube oil,” commonly due to contamination or pump loss (Modern Power Systems). Even slight pressure drops can scuff bearing babbitt (soft bearing alloy) and destroy a rotor in seconds.
Designers build in redundancy: two main AC‑driven oil pumps plus one or more emergency units (often DC‑driven), with low‑pressure and high‑temperature sensors across the circuit. If pressure falls below a safe setpoint, the supervisory system trips the turbine immediately (Asia Pacific Energy Policy). Cambodian standards are explicit: install main, auxiliary, and emergency oil pumps; auxiliary pumps auto‑start on low output, and emergency supply covers pump breakdowns (Asia Pacific Energy Policy). Filters carry differential‑pressure alarms well before trip conditions.
Practice closes the loop. Loss histories include cases where even emergency pumps failed to engage—often battery‑related—culminating in bearing damage (Modern Power Systems). Best practice tests emergency oil pressure monthly and verifies battery health so DC pumps run during AC outages. Good systems incorporate high/low pressure alarms and logic that keeps the unit safe even through single or double pump failures. Operators report tangible savings: implementing vibration trending and oil analysis cut bearing replacement costs by 70% over five years, largely by avoiding oil‑starved events.
Supervisory system architecture and maintenance

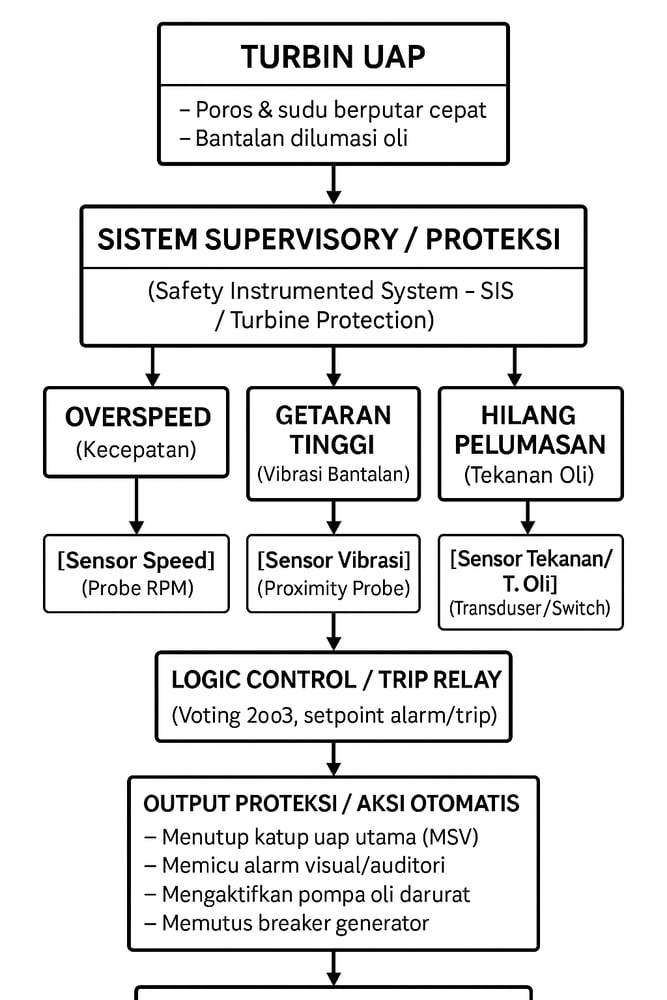

The turbine supervisory and protection system is a SIS (Safety Instrumented System—an independent layer with defined safety functions). Core elements include speed sensors, vibration transducers, oil pressure/temperature instrumentation, and logic (relays or a controller) that initiates alarms and trips. High reliability is achieved through redundancy—often two channels minimum for each hazard, and 2‑out‑of‑3 voting on overspeed. Interlocks tie into the generator breaker and auxiliary valves, including reverse‑power relays and vent valves, to prevent motoring and overspeed after trips.
Standards split functions into two systems: a Protection/Trip system and a parallel Alarm system (Asia Pacific Energy Policy). The Trip system automatically shuts off steam on overspeed or very low lube pressure (Asia Pacific Energy Policy). The Alarm system issues early warnings for developing conditions, including when vibrations rise above normal (Asia Pacific Energy Policy). The staged approach—alert, then shutdown if needed—keeps operations within safe margins.
Effectiveness hinges on calibration and proof‑testing. Trip setpoints must be verified against rated speed and pressure. Annual overspeed and low‑oil‑pressure tests are critical; skipping them elevates risk, and insurers will flag units or impose penalties when tests reveal issues (Power Engineering). Demonstrations show that large turbines tolerate the occasional test trip—the “minimal stress” is acceptable compared with the risk of an untested system (Power Engineering). Many operators track bearing vibration, oil‑pressure margin, and spare‑pump readiness on dashboards.
In the wider steam‑cycle landscape, ancillary equipment such as a dosing pump is commonly discussed in plant documentation; the SIS sits alongside such systems as a distinct, independent safety layer.
Regulatory context and standards
Multiple jurisdictions codify the essentials. Cambodia’s electric standards require over‑speed trips at about +10%, multiple oil pumps with auto‑start logic, and trips on low oil or high vibration (Asia Pacific Energy Policy; Asia Pacific Energy Policy; Asia Pacific Energy Policy). Indonesian regulations are less commonly published, but similar provisions are expected: mechanical strength to 110% speed, emergency governors, and relief devices. International norms—IEC 61508/61511 (functional safety frameworks), API, and ASME PTC—classify overspeed and lube‑protection as Safety Instrumented Functions, typically at SIL 2 (Safety Integrity Level 2), with documented failure rates. The economics are material: a Deloitte study estimates every 1% improvement in forced outage rate, via better protection, can yield millions in annualized value for a 1000 MW plant.
Outside the protection scope, boiler‑water programs often reference chemical treatments such as oxygen scavengers, but the supervisory system addressed here remains the last line of defense for the turbine itself.
Outcomes and what the data show
Key performance indicators align with risk reduction: trips per year, mean time between failures (MTBF), and maintenance cost savings. Plants with thorough vibration and lube monitoring regimes report 2–3× longer bearing life (Power Engineering; Modern Power Systems). The cost of an overspeed‑induced rotor failure (replacement, collateral damage, and lost revenue) dwarfs the cost of routine testing. One utility reported that disciplined overspeed‑trip testing and alarm maintenance cut unplanned turbine outage rate by >50% over five years.
The supervisory and protection system is non‑negotiable. Each threshold, trip valve, and alarm is set to act before stress or wear becomes critical. Regulators emphasize that mechanical trip components degrade—only rigorous maintenance (periodic overspeed tests, pump checks, vibration trending) assures safety (NRC; Power Engineering). The data point in the same direction: fewer forced outages, lower insurance premiums, and avoidance of multi‑million‑dollar failures follow from shutting down as soon as “abnormal conditions” (overspeed, vibration, oil loss) appear—so they “immediately trigger a safe shutdown .”
Source base and corroboration
Authoritative industry analyses, regulatory reports, and codes underpin this guidance: NRC event investigations (NRC; NRC), power‑industry insurance guidelines (Power Engineering; Power Engineering), plant operation studies (Modern Power Systems; Power Engineering), and regional standards with explicit requirements for over‑speed, vibration, and lubrication protections (Asia Pacific Energy Policy; Asia Pacific Energy Policy). These sources (and their referenced metrics) corroborate the operational and safety practices described above.
