In mills where 70–80% of all energy goes to steam, the biggest wins are hiding in the boiler room. Returning more condensate, recovering blowdown heat, and adding economizers are delivering multi‑percent fuel savings and major water cuts.
Industry: Pulp_and_Paper | Process: Boiler_&_Steam_Generation
Pulp and paper production runs on steam — and lots of it. Approximately 70–80% of all energy in a pulp/paper mill is used to generate steam for pulping and drying (ojs.unud.ac.id). Globally the industry uses on the order of 91×10^6 m³ of water per day, with the Asia‑Pacific (including Indonesia) accounting for nearly half (resourcewise.com).
The local stakes are high. In Indonesia alone, pulp and paper contributes over 100 trillion rupiah to GDP and its energy demand (measured in coal‑equivalent) is projected to rise ~2.5% per year (ojs.unud.ac.id). Without efficiency measures, demand would grow from ~108.5 to 135.4 million “Sarana Batubara” (coal‑equivalent) by 2027 (ojs.unud.ac.id). Proven efficiency technologies could reduce future energy needs by ~12.5% by 2027 (ojs.unud.ac.id).

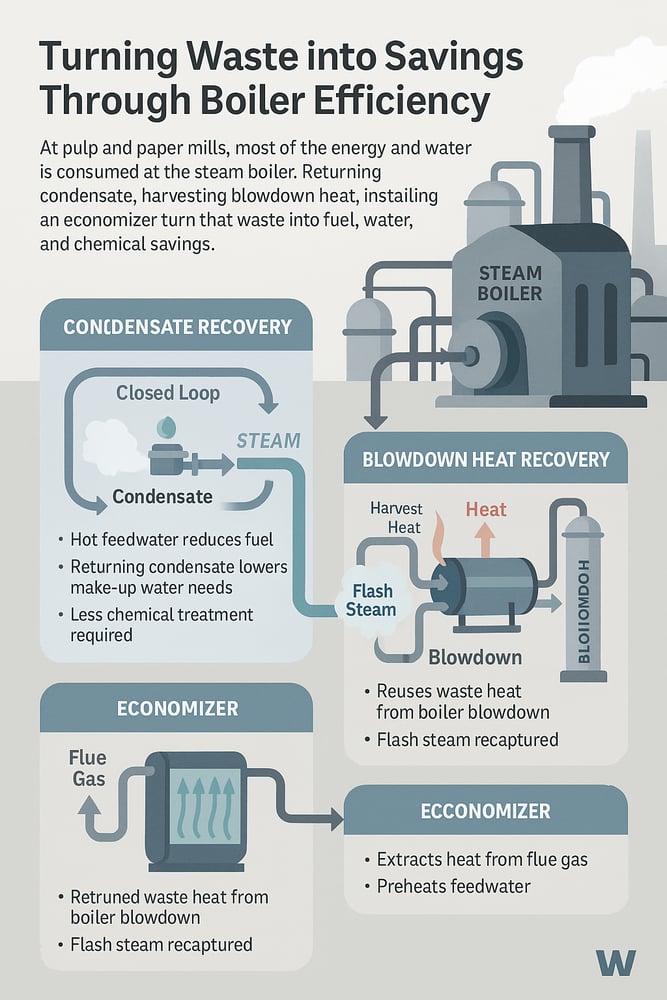

Because steam (boiler) systems are the largest single energy user in pulp mills, optimizing boiler efficiency and condensate use is a high‑impact strategy. Key measures include condensate recovery, boiler blowdown heat recovery, and economizers on flue gas. These practices yield concrete fuel, water, and chemical savings.
Condensate recovery benchmarks and gains
Condensate — the hot, distilled‑quality water formed when steam gives off heat — is valuable return water and heat. Returning condensate to the boiler supplies hot makeup water, saving fuel and treatment costs. Industry guidance notes condensate can carry “as much as 16% of the total energy in the steam vapor” depending on steam pressure (invenoeng.com). A benchmark is ~90% return of condensate flow (invenoeng.com).
Returned condensate enters the boiler feed at a high temperature (e.g., 80–100 °C) instead of cool makeup, directly reducing fuel per unit of steam. With modern controls and materials, even modest reuse compounds into large energy savings over continuous operation (filtox.com). Piping return lines with proper degassing and filtration is standard practice; mills often deploy condensate polishers after heat exchange cooling to protect the boiler.
Water savings are direct: every kilogram of condensate returned replaces an equal liter of fresh water. Given global pulp/paper mills consume on the order of 10^8 m³ per day (resourcewise.com), the impact scales quickly. In practical terms, a mill making 100 t/h steam with 90% condensate return avoids using ~876,000 t of fresh water annually compared to 50% return.
Chemical savings follow. Because condensate is very pure (virtually no dissolved solids), returning it greatly reduces boiler blowdown. Less blowdown means fewer treatment cycles; vendors note lower demineraliser and softener loading (filtox.com). In practice this translates to reduced use of systems such as a demineralizer or a softener, and less stress on corrosion/scale control programs.
Operationally, a hot condensate feed accelerates hot‑start times and stabilizes boiler chemistry. Industry guidance explicitly states: returning condensate improves energy efficiency and reduces chemical, water, and blowdown losses (invenoeng.com). Many mills now treat robust condensate loops as a “foundational” practice aligned with sustainability targets (filtox.com).
Blowdown heat recovery systems
Boiler blowdown — the controlled removal of hot boiler water to limit dissolved solids (TDS, total dissolved solids) — throws away heat unless recovered. U.S. DOE guidance indicates any boiler with >5% continuous blowdown is a strong candidate for recovery equipment (campbell-sevey.com). Typical blowdown rates are 2–6%.
When high‑pressure blowdown is depressurized in a flash tank, a portion becomes “flash steam” that can be routed to the deaerator or process heaters, and the remaining hot water can preheat makeup in a heat exchanger. For a 150‑psig (gauge pressure) boiler producing 50,000 lb/hr with 6% blowdown, DOE/Georgia Tech calculations show roughly 0.85 MMBtu/hr (million British thermal units per hour) of recoverable heat — about 8,500 MMBtu over 8,000 hours — worth ~$68,000 at $8/MMBtu (campbell-sevey.com).
A smaller case underscores the point: a 6 T/hr boiler at 10.5 bar with 2% blowdown (120 kg/hr) that flashes to ~120 °C yields 338 kg/day of low‑pressure steam; capturing it was estimated to save about 7.7 tonnes of fuel per year (forbesmarshall.com). In many setups, 70–90% of blowdown enthalpy can be recovered (campbell-sevey.com), while also cooling discharge to meet temperature limits. Capturing this loss can trim roughly 1–3% of total fuel input in cases of ~6% blowdown (campbell-sevey.com; forbesmarshall.com).
Economizers and stack heat
Economizers — heat exchangers installed in the flue path to preheat feedwater with residual stack heat — target boiler “stack losses.” In practice they boost overall boiler thermal efficiency by several percentage points. A modern unit with an economizer (and advanced controls) can achieve 90–95% thermal efficiency, versus 75–85% without recovery (coalbiomassboiler.com). That often means 5–15% lower fuel consumption for the same steam output (coalbiomassboiler.com).
Specific gains depend on design and fuel: a gas‑fired boiler might extract ~5–10% of its fuel heat via an economizer, while a biomass boiler pulling flue gases from ~200 °C down to ~120 °C might save ~3–7% fuel. Condensing economizers go further by cooling below the water dew point to capture latent heat, but require corrosion‑resistant alloys. As a rule of thumb, each 10–20 °C drop in stack temperature (without condensing) can save about 0.5–1% of fuel. In pulp and paper, reducing stack exit gas by ~50 °C (from 250 to 200 °C) on a 30 MW boiler yields roughly 1–2 MW of heat recovery, cutting fuel by a few percent.
Holistic energy assessments back the impact. Gupta et al. (2011) reported that installing an economizer (among other measures) could save on the order of 2.6 million kg of coal per year (~52 million MJ) in a large pulp/paper boiler, improving efficiency by ~2%†; while the study combined measures, the economizer ranked among the top savings items (researchgate.net).
Water chemistry and dosing controls
Lower blowdown and higher condensate return reduce treatment demand, which in turn decreases chemical consumption and stabilizes the boiler. Plants commonly meter corrosion and pH control agents with a dosing pump to maintain consistent conditions as return flows increase.
Programs built around oxygen removal and alkalinity management complement the mechanical upgrades described above. Typical approaches include oxygen control using an oxygen scavenger, pH control via a neutralizing amine, and deposition control using a scale control treatment — all of which benefit from reduced makeup volumes and steadier cycles when condensate recovery rises.
Impact and implementation outlook
The numerical picture is clear. Returning an extra 10% of condensate in a 100‑t/h steam plant conservatively saves on the order of 0.5–1 GJ per ton of steam (roughly 140–280 kWh/t), plus 10,000–20,000 m³/year of water. Blowdown recovery returns a similarly large energy fraction: in a 6% blowdown case, about 8,500 MMBtu/yr (≈2.5×10^6 kWh) is recoverable as shown above (campbell-sevey.com). Economizers add multi‑percent fuel cuts, compounding the savings.
These strategies align with industry benchmarks and government/EU guidelines. Asian best‑practice guides explicitly advise “maximizing condensate recovery” and “installing flash recovery economizers” for pulp mills as high‑priority steps. Many pulp/paper companies now view condensate loops and blowdown recovery as standard practice, both to meet tightening efficiency/regulatory targets and to leverage sustainability incentives (filtox.com; invenoeng.com).
In conclusion, piping back hot condensate, recovering blowdown heat, and capturing flue‑gas heat through economizers are proven strategies. They directly translate to reduced steam generation fuel, less fresh water and utility chemical usage, and lower emissions. As illustrated by multiple case studies, even incremental improvements (a few percent condensate return gain, or 5–10 °C exhaust drop) yield significant annual energy savings. These data‑backed interventions are essential when formulating energy management plans or capital upgrades in pulp & paper boiler operations.
Sources: Authoritative industry and governmental studies were used, including peer‑reviewed analyses and engineering guides. Key data include U.S. DOE/IEA reports and pulp‑industry audits (campbell-sevey.com; forbesmarshall.com; coalbiomassboiler.com), along with specialized articles and best‑practice guidelines (filtox.com; invenoeng.com) supporting the quantitative claims above.
