In papermaking’s wet end (the forming section), chemistry and materials make or break uptime. Data from mills and researchers point to a simple playbook: resilient alloys, stable white‑water pH, and targeted inhibitors.
The wet end of a paper machine operates in a highly aqueous, chemical‑rich environment — high humidity, pulp fines, salts, and alkaline and oxidative additives — all of which can accelerate corrosion. Even routine shutdowns (“lay‑up”) expose wet ends to air and condensate. The bill adds up fast: North American pulp/paper mills lose on the order of $6 billion per year to corrosion (rustbullet.com; asminternational.org). In one Indian mill study, annual on‑site corrosion/wear costs were ~£20,000 (≈US$25,000), and by extrapolation India’s entire pulp/paper industry might spend ~£1.5 million annually; in that case, upgrading one bleaching unit to a corrosion‑resistant duplex stainless steel was estimated to save ~£130,000 per year (journals.sagepub.com).
On the machine, corrosion shows up as uniform thinning, pitting, tuberculation, or microbiologically influenced corrosion (MIC, corrosion accelerated by biofilms) in piping, trays, suction rolls, and tanks. Failure can also contaminate product (rust “lash®”) or trigger leaks and outages. The industry response has coalesced around three levers: pick the right materials; hold the white‑water chemistry steady; and deploy chemical inhibitors where they actually work.
Wet‑end materials selection and finishes
In practice, most wet‑end equipment is stainless steel. Approach/stock piping into the headbox (the pressurized distributor feeding the forming section) is typically stainless — commonly 304L/316L — with a very smooth internal finish (Ra≈0.5–0.75 µm; Ra is arithmetic mean surface roughness) to minimize fiber buildup and corrosion sites (scribd.com). The forming and press sections “are generally constructed of solid Type 316L stainless steel,” with outside cold‑worked finishes and polished internals for cleanliness (scribd.com).
Heavily loaded wet‑end bearings or roll journals increasingly use high‑strength alloys such as duplex stainless (2205) or precipitation‑hardening 17‑4PH, replacing old carbon steels and even 304/316 in this duty (scribd.com). Notably, 17‑4PH pitting resistance may still be marginal in wet ends (scribd.com) — an argument for even more corrosion‑resistant alloys or coatings on water‑intensive rolls. In less severe areas, cheaper carbon steel may be used if coated or painted, but serious corrosion quickly defeats plain steel.
Where bulk equipment sees aggressive chemistry (for example, bleach plant tanks) or requires dielectric insulation (such as vacuum boxes), fiber‑reinforced plastic (FRP) linings or vessels are used. One supplier notes their wet suction box uses alumina ceramic dewatering covers and a “corrosion‑resistant steel” housing (beichenceramics.com). In very harsh tanks (chlorine dioxide, ClO₂, bleach stages), FRP linings have proven durable: an inspection of three FRP ClO₂‑bleach seal tanks (operated 20–28 years) showed only minor wear and no relining needed (utcomp.com).
Many wetted parts face abrasion (fibers, fillers) as well as corrosion. Carriage frames and showers often receive hard coatings or use 316L; suction box covers commonly use hard‑ceramic platelets over the steel box (beichenceramics.com). Modern table smoothie blades and trim fingers use special alloys or ceramic inserts. In auxiliary wet areas with inline filtration, selecting 316L stainless housings aligns with this philosophy, as seen in 316L stainless cartridge housings used where cleanliness and corrosion resistance are paramount.
The bigger picture is clear: wet ends trend toward inherently corrosion‑resistant metals (300‑series stainless, duplex stainless, nickel alloys) or non‑metallic linings (FRP, ceramics). Carbon steel is generally avoided unless tightly protected. Choosing higher alloys can cost ~2–3× but often extends component life by factors (e.g., decades vs years) (journals.sagepub.com; utcomp.com). Case studies show that switching to superior alloys (duplex stainless steel) paid for itself quickly — saving ~$130k/yr in one bleaching unit (journals.sagepub.com). Where non‑metallic hardware is appropriate, lightweight composite housings that resist chemical/oxidizing service, such as PVC‑FRP cartridge housings, reflect the same logic.

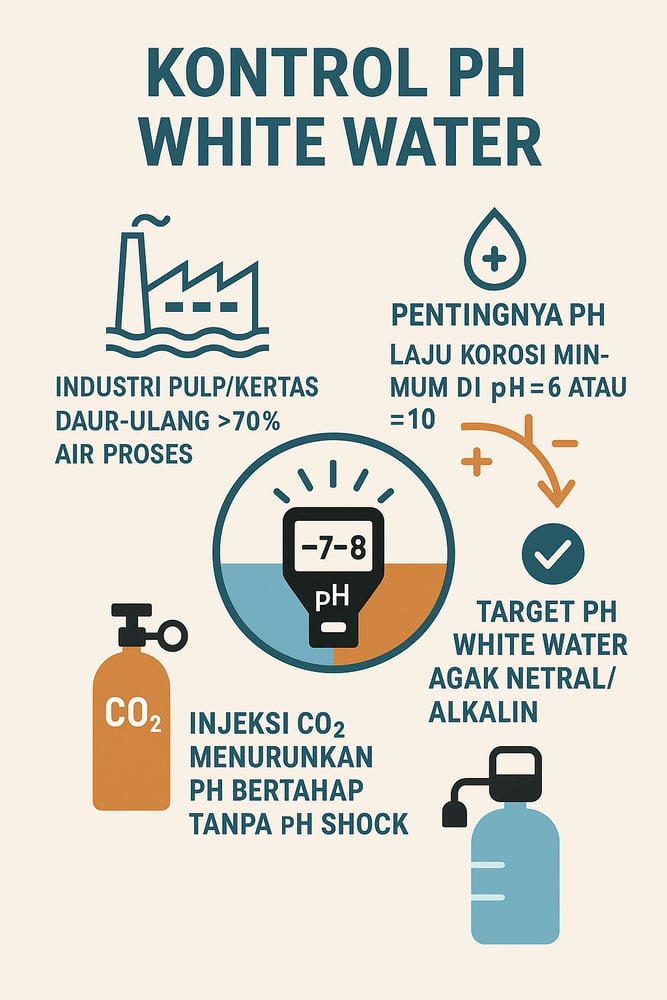

White‑water pH control and recycling
“White water” — the process water recovered from the wet end — is highly recycled; a mill may recycle >70% of its process water. Mills also use a lot of fresh water, up to ~25,000 gallons per ton of paper (instrumentation.co.za). As one industry guide notes, “controlling pH is an important factor in the reclamation of white water” (instrumentation.co.za).
Why pH matters: steels and brasses form protective oxide scales only in certain pH ranges. Early corrosion research showed carbon steel in warm impure water corrodes only minimally around pH ~6 or ~10, but corrodes heavily in the near‑neutral range (~7–9) or below 6 (nepis.epa.gov). For stainless alloys, acid or alkaline extremes can also pit or crevice‑attack. In practice, wet ends target a slightly alkaline/neutral pH (often ~7–8) to minimize both acid and caustic attack, and control loops avoid “pH shocks.” Injection of strong mineral acids (H₂SO₄, HCl) is often discouraged because sudden drops in pH disrupt paper chemistry and threaten corrosion; CO₂ gas is increasingly used because it dissolves to carbonic acid, gently lowering pH without adding corrosive ions — “environmentally friendly” and causing no pH shock at the point of addition (paperindustryworld.com). Lime or caustic (NaOH) is used upstream only to remove lignin or adjust fiber swelling, and residual alkalinity is titrated with CO₂ or weak acids before the machine.
Operators commonly keep the loop near pH ~7. Deviations have known costs: a low pH (acidic) tends to precipitate dissolved solids onto machine surfaces (raising clogging/corrosion risk), while a high pH encourages bacterial growth — bacteria can produce localized acid and pitting (papermakingbible.co.uk). Control loops often inject CO₂ to stabilize pH and manage carbonate–bicarbonate buffering, also reducing CaCO₃ clogging (paperindustryworld.com). Where acids or bases are metered, accurate chemical dosing with a dosing pump supports steady control.
On the regulatory side, Indonesia’s typical standards set pulp/paper effluent pH to 6.0–9.0 (id.scribd.com). Keeping the white water/pulp slurry near neutral before discharge helps meet these limits and prevents spells of excessive acidity or alkalinity. In sum, good corrosion control in the wet end requires active pH management (often via CO₂ or dilute acids/bases) to hold pH in the safe mid‑range (nepis.epa.gov; paperindustryworld.com).
Chemical inhibitors and lay‑up practice
White water is nutrient‑rich and prone to bacterial slime. Unchecked biomass can locally acidify metal and undercut protective films. Mills routinely dose biocides — bleach, peracetic acid, glutaraldehyde — to inhibit sessile biofilms (papermakingbible.co.uk). Indeed, uncontrolled bacteria “build up…slime, lowering pH” and causing “holes” in equipment (papermakingbible.co.uk). A practical program can be built with dedicated biocides geared to wet‑end conditions.
In closed‑loop systems (cooling towers, loops, boilers), conventional inhibitors are standard. Condensate/feedwater is often treated continuously with ppm‑level neutralizing amines or filming agents; industry guidance recommends ~2–5 ppm of a specialty feedwater inhibitor to passivate condensate lines and hundreds of ppm to handle closed cooling loops (cortecvci.com). For condensate, a neutralizing amine aligns with this practice. In closed water loops, mills also dose molybdate, silicate, or nitrite salts, which deposit thin oxide films on carbon steel; a multipurpose corrosion inhibitor is used to reduce corrosion rates significantly.
Volatile corrosion inhibitors (VCIs, which emit protective vapor molecules) can be added to cooling water; one source suggests 1500–3000 ppm of VCI‑type additive in closed cooling systems (or 50–100 ppm in open loops) to suppress corrosion (cortecvci.com). In practice, these are procured as closed‑loop chemicals tailored to the site’s metallurgy and water makeup. Such inhibitors keep routine plant loops (cooling, compressed air condensate, etc.) passive even if traces of oxygen or acids are present.
When machines are idle, lay‑up protection is critical. Mills use fogging bolt‑on VCI emitters that release protective vapors, or greases/carriers loaded with inhibitors (permanently purged waxy greases in bearings) to carry inhibitors (amines, succinic esters, etc.) onto metal surfaces and prevent flash corrosion in downtime (cortecvci.com). In some wet‑end circuits, small amounts of alkaline buffer (e.g., bicarbonate) are added to increase water’s buffering capacity so that microbial acids are neutralized on the fly; others add chelating agents to sequester corrosive ions. Detailed inhibitor schemes are often proprietary.
Program targets, verification, and economics
For the open white‑water circuit, the main “inhibitor” is good housekeeping — stable pH and biocide control — rather than added films, since inhibitors dilute out with fiber. In auxiliary systems (cooling water, steam condensate, storage), targeted inhibitors and films are standard practice (cortecvci.com; papermakingbible.co.uk). Industry practice includes adding filming amines to boiler/turbine condensate (2–5 ppm range) or nitrite‑molybdate blends to closed cooling systems to achieve corrosion rates below a few mils per year (a mil is one‑thousandth of an inch of metal loss per year). Protection is typically verified with corrosion coupons (cortecvci.com).
On the wet end, pH management is a high‑leverage variable: maintaining white‑water pH near neutral (≈7–8) with on‑line monitoring and controlled additions (CO₂ or dilute acid/base) improves passivation — for example, avoiding low‑pH (<6) spikes prevents dissolution of ferric films (nepis.epa.gov). Stable pH also reduces scale deposition at high pH and microbiological acidification at low pH, both of which drive corrosion, and aligns with effluent pH limits such as 6.0–9.0 in Indonesia (id.scribd.com).
The economics favor action. U.S. mills face ~$6 billion/yr in corrosion‑related costs (rustbullet.com; asminternational.org). Investing even a small fraction of that in better materials or inhibitors is justified if failures are reduced. Choosing 316L as the nominal standard for wetted piping/tanks and considering higher alloys (Duplex, 317L, Alloy 20, titanium) for chloride/oxidizing service, or specifying FRP/ceramic composites for tanks and dewatering elements under severe attack, can double/triple component lifetimes and avoid multiyear maintenance costs (beichenceramics.com; utcomp.com). The cited duplex upgrade saving ~£130k/yr underscores the point (journals.sagepub.com).
Sources and documentation
Authoritative industry and regulatory sources were consulted, including U.S. EPA research (nepis.epa.gov), pulp/paper industry experts (rustbullet.com; asminternational.org; journals.sagepub.com), technical guides (paperindustryworld.com; papermakingbible.co.uk; instrumentation.co.za), and Indonesian environmental standards (id.scribd.com). In‑text citations point to exact source excerpts. All numerical figures (e.g., cost estimates, pH limits) are drawn from those sources.
