Palm oil’s steam-thirsty bottleneck: How smarter sterilization slashes fuel bills

Sterilization in palm oil mills swallows 30–60% of process steam—and up to 70% can blow straight to atmosphere. Multi‑stage heat recovery and disciplined boiler upkeep are cutting that waste by double digits.

Industry: Palm_Oil | Process: Sterilization

In a business where steam is money, the sterilizer is the hungriest customer. Industry data puts sterilization’s steam draw at roughly 110–360 kg per tonne of FFB (fresh fruit bunches), depending on sterilizer type (m.doingoilmachine.com). Even at the low end, sterilization typically accounts for 30–60% of a mill’s total process steam (m.doingoilmachine.com).

Much of that energy never does useful work. Palaniandy et al. estimate ~250 kg steam per 1000 kg FFB, yet 50–70% of that input can be lost as exhaust or condensate (researchgate.net) (researchgate.net). At one 60 t/h (tonnes per hour) mill, 24 t/h steam fed the sterilizers but 12 t/h—fully 50%—was blown off (researchgate.net).

Pressure matters. Low‑pressure horizontal batch sterilizers (~1.5 bar, a unit of pressure) consume ≈110–130 kg/t, whereas older high‑pressure vertical systems (~4 bar) can use 305–355 kg/t (m.doingoilmachine.com). Later in the cycle, demand spikes: an Indonesian case study of a three‑cycle “peak” sterilizer reported steam requirements rising from ~240,000 kcal/h in Peak‑1 to ~859,000 kcal/h in Peak‑3 (kcal/h is a rate of heat energy), underscoring how later stages dominate consumption (researchgate.net). Palaniandy et al. note up to 70% of sterilizer steam is vented to atmosphere (researchgate.net).

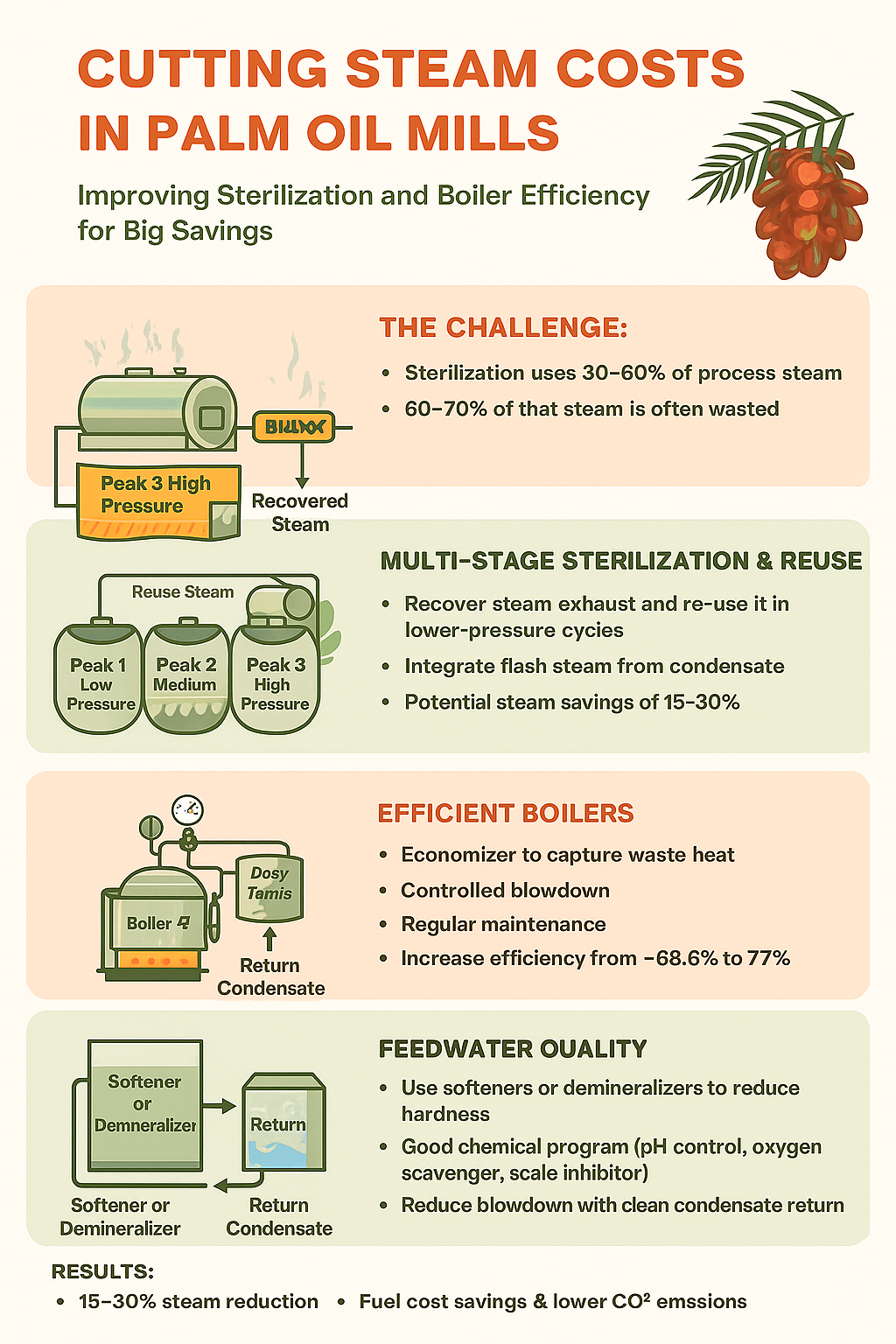

Sterilizer steam demand and losses

8d8655c5-f737-488c-9759-50cedd29b6cc

Choice of vessel and cycle design sets the baseline. A new horizontal (1.5 bar) sterilizer showed total steam use around 410 kg/t, versus 635–640 kg/t for vertical or continuous systems; horizontal mills can use ~35% less steam than vertical ones (m.doingoilmachine.com) (m.doingoilmachine.com). Insulating sterilizer vessels, optimizing cycle timing, and using automated control further trim steam per batch; even 10–20% reductions represent major fuel savings (same source).

Multi‑stage sterilization and steam reuse

Multi‑stage (“multi‑peak”) sterilization—with triple‑peak pressure ramps—is standard practice and a ready platform for heat recovery. Palaniandy et al. propose routing sterilizer exhaust into a back‑pressure receiver (a vessel that captures and re‑supplies steam at a lower, usable pressure): the recovered steam, at ~3.5 bar, is reused as a “top‑up” in the next sterilization cycle (researchgate.net). In effect, steam vented at, say, 4 bar in one stage is throttled to ~1–2 bar and then fed back as usable 3.5 bar steam (same source).

Capturing even a fraction of the 50% wasted steam yields substantial benefits: at the cited 60 t/h mill, 12 t/h was simply blown off; if half of that output were reintroduced, the fresh steam requirement could drop by ~25% (researchgate.net). Practical approaches include cascading sterilizers (multi‑chamber arrangements) and integrating flash steam (the portion of hot condensate that re‑evaporates when pressure drops) to preheat feed or secondary sterilizers. The Patani et al. study shows every 1000 kg FFVs needs 250 kg steam; by redirecting condensate/exhaust into preheating or ancillary uses, the net demand falls (researchgate.net).

Countercurrent continuous sterilization is another tactic: one patent envisions abrasive pre‑heating followed by high‑pressure cooking, with interstage flash and refrigeration to salvage heat. In practice, advanced mills report regaining ~25% of sterilizer energy via condensate return and flash recovery (spiraxsarco.com) (forbesmarshall.com).

Boiler efficiency and distribution quality

A high‑efficiency boiler and tight steam network are essential. While mature systems can achieve >80% efficiency, fouling and leaks erode performance. A UNIDO‑assisted mill audit found boiler efficiency only ~68.6% under existing operation, despite design >80%; after installing a feedwater economizer (a heat exchanger that preheats incoming water) and controlling continuous blowdown (controlled discharge to limit dissolved solids), efficiency jumped to ~77% (sanad.iau.ir). The 8‑point gain translated to annual savings of ~75,000 GJ, some 598 tonnes of biomass fuel, and 13,000 tCO₂ (same source).

Cleaning tubes, optimizing combustion air/fuel, and recovering feedwater heat show strong ROI. Capturing flash steam from just 2% blowdown at 10.5 bar could yield ~338 kg/day steam, saving ~7.7 t fuel/yr on a 6 t/h boiler (forbesmarshall.com). Routine fouling removal is often handled via a professional boiler cleaning service, which keeps heat‑transfer surfaces efficient without altering operating parameters described in the studies.

Feedwater treatment and condensate return

Feedwater quality is critical: poor feedwater (high TDS, hardness, or lapses in boiler treatment) forces high blowdown rates to prevent scale, wasting heat (spiraxsarco.com). Strict water treatment—such as hardness removal using a softener—and minimized blowdown preserve heat (same source). Good practice is to return all clean condensate to the feedtank; condensate contains roughly 25% of the steam’s enthalpy, and returning it cuts both fuel and make‑up water needs (spiraxsarco.com).

Maintaining steam traps and insulation keeps better quality steam in the system, prevents water hammer, and avoids flooding equipment with condensate; leaky steam pipes are likewise losses and should be audited and repaired (spiraxsarco.com). Reliable, high‑quality steam supply depends on clean, well‑maintained boilers; tuned burners; economizers; minimal blowdown; fully functioning traps; and insulated, well‑drained (steeply pitched) piping—so sterilizers receive the dry, high‑pressure steam they need while minimizing losses (same source).

Measured outcomes and business case

Integrated upgrades deliver measurable gains. A Malaysian case study saw net energy savings of ~75,000 GJ/yr (≈20 GWh) and USD100k fuel‑cost saving after boiler upgrades (sanad.iau.ir). Multi‑stage and heat‑recovery designs suggest potential steam‑use cuts on the order of 15–30% (e.g., horizontal sterilizers vs. vertical) (m.doingoilmachine.com) (researchgate.net). Every percentage point saved directly reduces biomass combustion and CO₂.

The business case is straightforward: targeted investments in sterilizer configuration, steam integration, and disciplined boiler maintenance cut energy use by tens of percent, with simultaneous reductions in operating cost and emissions (sanad.iau.ir) (spiraxsarco.com).

Source citations and case studies

Sources: Palaniandy et al. (2021) (researchgate.net); DoingOilMachine (2018) (m.doingoilmachine.com); Siswanto & Topan (2023) (researchgate.net); Ibrahim et al. (2022) (sanad.iau.ir); Spirax Sarco (2021) (spiraxsarco.com); Forbes Marshall (2020) (forbesmarshall.com). Each source is listed with inline citations above.
