One Drop, Three Acres: The High-Stakes Science of Sprayer Decontamination

Farm sprayers hold microscopic memories. When those residues hitch a ride into the next tank load, the costs can scale from stray leaf cupping to tens of thousands in crop losses. A data-backed cleanout protocol—and the right chemistry—shifts the odds.

Industry: Agriculture | Process: Pesticide_Application

Residual pesticides in application equipment are not a nuisance; they are a liability. Nebraska Extension documents that one drop of a dicamba spray solution in a 1,000‑gal tank (456 drops per fl. oz.) can injure nearly 3 acres of susceptible soybeans (extensionpubs.unl.edu). Research describes extreme sensitivity—less than 0.2% of a labeled dicamba rate causes 10% yield loss in non‑tolerant soybean (sprayers101.com). In 2017, an estimated 3.6 million acres of U.S. soybeans were damaged by dicamba‐related issues, including carry‑over from equipment (sprayers101.com).

The equation is stark: the time and cost of thorough cleaning are minimal compared to potential crop losses (sprayerbarn.com.au) (helenaagri.com). One Purdue Extension case study cites a single contamination incident that caused about $30,000 in crop damage in one field (ag.purdue.edu). Maintaining clean equipment is thus a cost‑effective safeguard for both yields and business reputation (sprayerbarn.com.au) (ag.purdue.edu).

Residue risk and sensitivity data

Even at low use rates, herbicides and many insecticides accumulate on sprayer surfaces. Sensitivity data illustrate the downside risk: less than 0.2% of a dicamba rate can trigger 10% yield loss in non‑tolerant soybean, and carry‑over contributed to widespread damage in 2017 (3.6 million acres) (sprayers101.com) (sprayers101.com). Extension guidance widely notes that cleaning prevents cross‑crop damage, legal and insurance liabilities, and equipment deterioration; the cleaning cost is small relative to potential losses (sprayerbarn.com.au) (helenaagri.com).

Cleaning chemistry: categories and mechanisms

Cleaning products fall into several categories, each with distinct mechanisms. Surfactants (wetting agents that help water spread and lift residues), alkaline agents (raise pH to increase solubility or hydrolyze actives), oxidizers (degrade certain compounds), and solvents (dissolve oil‑based residues) work differently and are paired to the residue profile.

Water plus surfactant/detergent. High‑pressure rinsing with clean water at about 10%–20% of tank volume, with agitation for 5+ minutes, is a basic first step (extensionpubs.unl.edu) (pnwhandbooks.org). Adding a detergent helps wet surfaces and lift residues. Water rinsing alone removes a large fraction of water‑soluble pesticides, such as glyphosate‑based herbicides (helenaagri.com); however, only a handful of products—notably glyphosate and other highly soluble actives—are cleanable by water alone (helenaagri.com). Most modern herbicides bind or crystallize, so detergents are recommended to dilute and dislodge residues (pnwhandbooks.org) (helenaagri.com).

Alkaline cleaners (ammonia, caustic soda, commercial blends). Many sprays, including phenoxy acids (e.g., 2,4‑D, MCPA) and most ALS‑inhibitors (a herbicide class targeting an amino acid synthesis enzyme), are best removed by raising pH. Household ammonia (3%–5% NH₃ solution) is widely recommended (pnwhandbooks.org) (helenaagri.com). High‑pH commercial cleaners (often NaOH‑based) are even more effective: they hydrolyze many actives and act as detergents. Newcastle et al. note typical tank cleaners have pH greater than 12, neutralizing acidic pesticides and keeping residues in solution (ag.purdue.edu). USDA Extension emphasizes cleansers that “raise the pH” (for example, 1.5%–3% ammonia by volume) to dissolve many herbicides (ag.purdue.edu). Commercial formulations typically combine caustic agents and surfactants, such as NaOH with non‑ionic surfactants (ag.purdue.edu). For process control when metering cleaners, some operations use accurate chemical dosing equipment such as a dosing pump.

Oxidizing agents (bleach, Fenton reagents). Bleach (sodium hypochlorite) lowers pH but is a strong oxidizer that can rapidly degrade certain compounds (e.g., triazines and some phenoxy esters). It does not improve solubility for most herbicides (pnwhandbooks.org). As one industry guide explains, bleach is used to “enhance degradation” of some residues (helenaagri.com), and it appears in some commercial cleaners. Critical caution: bleach must never be mixed with ammonia because of deadly chloramine gas (pnwhandbooks.org) (helenaagri.com). A specialized neutralization method uses the Fenton reaction (H₂O₂ plus iron catalyst generating hydroxyl radicals) to break down stubborn herbicides; patents and Brazilian field notes report that Fenton‑type cleaning can reduce cleaning time dramatically while degrading dicamba, 2,4‑D, and even glyphosate residues (patentsencyclopedia.com) (revistacultivar.com). Note: glyphosate chelates iron, requiring higher iron doses in Fenton systems (patents.google.com). Fenton kits for sprayers are emerging; chemical safety and cost must be managed (revistacultivar.com).

Solvents (diesel, specialized degreasers). Oil‑based pesticides, such as esters of 2,4‑D and residues from oil adjuvants, adhere strongly to booms and hoses; hydrophobic solvents including diesel or kerosene are sometimes used locally on problem spots (revistacultivar.com). For example, the Pacific Northwest guide suggests 1% kerosene to strip MCPA ester residues (pnwhandbooks.org). After solvent use, a thorough detergent or alkali rinse is required to remove the oily film. Specialty “spray cleaner” products—such as granular chlorinated alkali detergents—incorporate both oxidizing and alkaline action; Australian sources recommend granular chlorinated NaOH cleaners (e.g., “Delta Boom Clean”) that sanitize (chlorine) and alkalize (NaOH) simultaneously (sprayerbarn.com.au). Specialized degreasers are sometimes employed on exterior residues; examples include a solvent‑base degreaser or a heavy‑duty water‑based degreaser. Overall, commercial multi‑purpose tank cleaners—liquid or powder—outperform simple household cleaners by combining high pH with surfactants (ag.purdue.edu) (helenaagri.com).

Comparative effectiveness and rinse cycles

Standard extension advice aligns around a combination approach: a triple rinse with water and detergent, followed by an alkaline cleaner rinse (ammonia or NaOH‑based), and a final water rinse (pnwhandbooks.org) (ag.purdue.edu). One dicamba rinsing analysis reported that the first rinse carried about 75%–100% of the residue impact (measured by crop injury), the second rinse 50%–90%, and only after four rinses did injury drop into the 10%–35% range—evidence that a thorough 3–4 cycle clean with ammonia removes over 90% of the active (sprayers101.com) (sprayers101.com). Water alone clears easily soluble glyphosate (helenaagri.com), ammonia or caustic cleaners address many acid or neutral herbicides (pnwhandbooks.org), oxidizers degrade susceptible compounds (pnwhandbooks.org), and stubborn residues sometimes require combined chemistry such as Fenton or multiple cleansers.

Market signals mirror practice. The global spray‑tank cleaners industry reached $512 million in 2024 and is projected to grow at roughly 7% annually to $887 million by 2033 (growthmarketreports.com). North America led the market (about $178 million in 2024), with Asia Pacific not far behind (growthmarketreports.com). Robust growth underscores that thorough cleaning is an expected standard, not an afterthought (growthmarketreports.com).

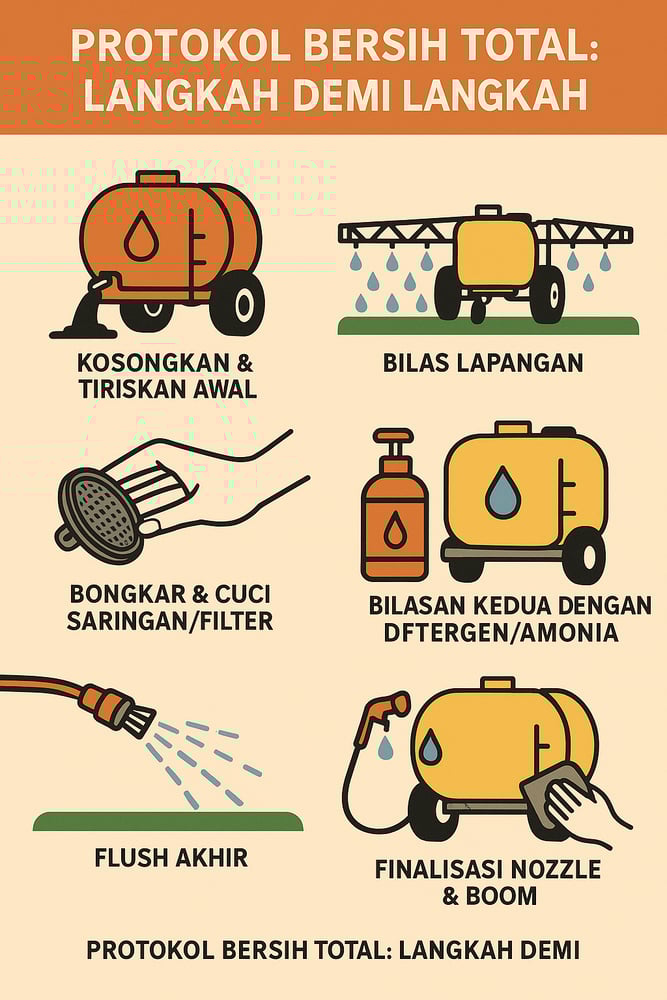

Standard cleanout sequence (tanks, hoses, pumps, nozzles)

ChatGPT Image Oct 1, 2025, 02_25_42 PM


Process steps are adapted to sprayer type and pesticide labels (the label is the law). Rinsate (the rinse water plus dissolved residues) should be managed as described below. Personal protective equipment (PPE) referenced by labels applies throughout.

1) Empty and initial drain. Immediately after application, the entire tank is drained of pesticide solution onto the target crop or an approved safe area, such as the treated field (extensionpubs.unl.edu) (helenaagri.com). If the same mixture is used the next day, a simple drain and fill with water may suffice (helenaagri.com); switching products or crops calls for full cleanout.

2) Field rinse (first rinse). With the tank about 10% full of clean water, the pump runs with agitation for roughly 5–10 minutes, cycling water through the boom, hoses, pump, and nozzle lines (extensionpubs.unl.edu) (pnwhandbooks.org). All valves and outlets are opened so every part is flushed. High pressure and spray balls dislodge caked residues. Rinsate is applied back to field margins, avoiding sensitive crops or waterways (extensionpubs.unl.edu).

3) Disassemble and scrub screens/filters. Removable parts—nozzle screens, in‑line filters, boom end caps, filler strainers—are taken out and individually soaked or scrubbed (extensionpubs.unl.edu) (sprayerbarn.com.au). Warm soapy water removes residue “pills.” Nozzle screens and fine filters remain out until the end.

4) Second rinse with detergent/ammonia. The tank is filled to roughly one‑quarter to one‑half capacity with water. A cleaning agent is added according to the target residue: commonly household ammonia (e.g., 1%–4% NH₃ by volume) or a commercial tank cleaner with equivalent alkaline strength (pnwhandbooks.org) (ag.purdue.edu). The agitator and pump circulate the solution for 15–20 minutes, and some is sprayed through the boom. For high‑risk products—dicamba, 2,4‑D, sulfonylureas—this solution may be left to soak overnight (pnwhandbooks.org) (revistacultivar.com). If a Fenton kit is used, H₂O₂ and catalyst are added per instructions and circulated as directed (revistacultivar.com) (patentsencyclopedia.com).

5) Partial drain and final cleaner (if needed). The ammonia or cleaner solution is drained. Some protocols include a third rinse using a different chemistry, such as chlorine bleach solution, if indicated by the label (extensionpubs.unl.edu) (helenaagri.com). Alternatively, a final dose of tank cleaner and water (per product label) may be circulated for 5–15 minutes before draining.

6) Final flush. The tank is refilled with clean water, with or without a mild surfactant, and circulated for 5–10 minutes through the boom and hoses to remove any remaining cleaner. At least one more freshwater‑only flush (a third rinse) is performed to ensure removal of cleaning agents (pnwhandbooks.org) (sprayerbarn.com.au). Rinse water is recycled as allowed for the same crop or disposed safely (extensionpubs.unl.edu) (helenaagri.com).

7) Nozzle and boom finish. The inside of the tank and lid are rinsed and wiped down. Nozzle screens and nozzles are reinstalled only after the last rinse. Hoses, fittings, pump housing, sumps, covers, and external parts are rinsed or wiped; typical residue collection points include around valves, gauge lines, pumps, and the tank rim (sprayerbarn.com.au) (sprayerbarn.com.au). For exterior frames and wheels, a soapy pressure wash can be used; tank cleaner runoff is kept out of drains and streams.

8) Inspection and post‑clean actions. Missed residues are checked, including via water tests or a bioassay; one approach collects final rinsate and sprays a test patch of a sensitive plant or tomato (pnwhandbooks.org). If any effect is seen, the wash is repeated. Finally, all outlets are opened for complete drain and air‑out; shaded storage is preferable. PPE is worn throughout, and contaminated PPE is handled carefully; entry into living areas or eating is avoided until after personal cleanup (extensionpubs.unl.edu) (helenaagri.com). Filter wash water is disposed or recycled safely, for example on a labeled field area (extensionpubs.unl.edu) (helenaagri.com).

Operator safety and compliance context

Extension sources stress that no single wash is enough for high‑potency herbicides. Phenoxy (2,4‑D) and other auxin herbicides “can damage susceptible crops even at very low concentrations” and often require dedicated cleanups; commercial tank cleaners are viewed as a “last step” to break lingering residue (ag.purdue.edu) (pnwhandbooks.org) (ag.purdue.edu). PPE (e.g., chemical‑resistant gloves, apron, eye protection) is used when handling rinsate and cleaners; entry into closed sprayer tanks is not performed (extensionpubs.unl.edu) (helenaagri.com). Labels often require that cleaning water be applied to labeled crops or disposed safely and forbid dumping near waterways; Nebraska advises spreading rinse water on the site of the original spray (extensionpubs.unl.edu). Indonesian law (Permentan 53/2018) states that produce must be free of chemical contamination, implying that misuse or cross‑contamination via dirty sprayers is prohibited.

Economic context and market signal

Neglected maintenance has economic costs. Cultivar magazine cites spray inspections showing around 23% performance loss from neglected maintenance (revistacultivar.com). Conversely, small investments in water, common cleaners, and labor avert costly replanting or litigation; fertilizer co‑ops and applicator services often stock neutralizing kits because the business value is clear—single contamination claims can reach tens of thousands of dollars (growthmarketreports.com) (revistacultivar.com) (ag.purdue.edu).

Evidence and outcomes from rinse trials

Controlled trials show progressive reduction in residues with each rinse cycle. In soybean trials exposed to dicamba rinsate, injury dropped from about 75%–100% after a first rinse to around 10%–35% after a fourth rinse that included an ammonia wash—consistent with the removal of more than 90% of the active (sprayers101.com). Minor differences between serial and continuous rinse procedures did not markedly change final residue when rinses were thorough (sprayers101.com). These outcomes reinforce an evidence‑based protocol: immediate drain and line flush; manual cleaning of removable parts; at least two rinses with clean water and surfactant; one or more rinses with a high‑pH cleaner (ammonia or NaOH); final clean water rinse; and careful disposal of all rinse fluids (pnwhandbooks.org) (revistacultivar.com).

Sources for the above include Nebraska and Pacific Northwest Cooperative Extension bulletins (extensionpubs.unl.edu) (pnwhandbooks.org), a Purdue University Extension fact sheet (ag.purdue.edu) (ag.purdue.edu), Brazilian technical magazines (Cultivar) (revistacultivar.com) (revistacultivar.com), and market analyses (growthmarketreports.com). All specific claims are supported by the inline references above.
