Low Pressure vs Medium Pressure UV Lamps in Water Treatment

In the world of water treatment, ultraviolet (UV) technology has become one of the increasingly popular disinfection methods. The two types of UV lamps that are often used are low pressure and medium pressure UV lamps. This article will discuss the differences between the two types of lamps, their advantages and disadvantages, and their applications in water treatment in Indonesia.

Source: Pexels.com

As the largest archipelago in the world, Indonesia has unique challenges when it comes to clean water supply. The characteristics of water sources in Indonesia are very diverse, ranging from sometimes polluted seawater with high BOD/COD, contaminated rivers, to well water with limited capacity. Therefore, the selection of the right water treatment technology, including UV disinfection systems, is very important.

PT Beta Pramesti, as a leading water and water treatment contractor in Indonesia with over 39 years of experience, has faced various challenges in providing effective and efficient water treatment solutions. With a focus on industrial customers such as palm oil mills, mining, power plants, and petrochemical plants, the company has developed expertise in designing and building reliable water treatment systems, including the use of UV technology.

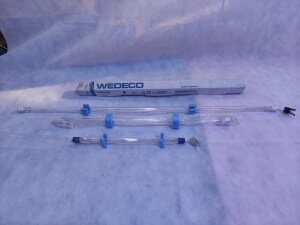

Low Pressure UV Lamp

This is the most common type of lamp used in water disinfection systems. These lamps operate at low mercury gas pressures, usually less than 1 atm. Some of the main characteristics of low pressure UV lamps are:

• Generates UV radiation at a wavelength of 253.7 nm, which is very effective for inactivation of microorganisms.
• High conversion efficiency of electricity to UV, reaching 30-40%.
• Relatively long lamp life, usually between 8,000 to 12,000 hours.
• Lower operating temperature, around 40°C.
.
• Lower energy consumption compared to medium pressure lamps.

Low pressure UV lamps are perfect for small to medium scale water treatment systems, such as those often used in the food and beverage industry or healthcare facilities. In Indonesia, this type of lamp is widely used in drinking water treatment systems in remote areas or small islands that have relatively clean water sources.

Medium Pressure UV Lamp

Medium pressure UV lamps operate at higher mercury gas pressures, typically between 1 to 10 atm. The main characteristics of medium pressure UV lamps include:

• Produces a broader UV spectrum, covering wavelengths between 200-400 nm.
• Higher UV output per unit lamp length.
• Lower electricity to UV conversion efficiency, around 10-20%.
• Shorter lamp life, typically between 4,000 to 8,000 hours.
• Higher operating temperature, can reach 600-800°C.
• Higher energy consumption compared to low-pressure lamps.

Medium pressure UV lamps are more suitable for large-scale water treatment systems or applications that require high UV doses. In Indonesia, this type of lamp is often used in industrial wastewater treatment, especially in the oil and gas or mining sectors, where wastewater often contains contaminants that are difficult to remove.

Comparison of Performance and Effectiveness

In comparing the performance of low and medium pressure UV lamps, several factors need to be considered:

1. Energy Efficiency: Low pressure UV lamps are generally more efficient in terms of energy consumption. This can be an important consideration in Indonesia, where electricity costs can be a significant factor in industrial operations.
2. Disinfection Effectiveness: While both types of lamps are effective in inactivating microorganisms, medium pressure UV lamps can deliver a higher UV dose in a shorter time. This can be an advantage in water treatment with high levels of contamination or fast flow rates.
3. Flexibility.
4. Flexibility: Medium pressure UV lamps have a broader UV spectrum, which can be effective in addressing different types of contaminants. This can be an advantage in water treatment in Indonesia which often faces significant variations in water quality.
5. Water Quality.
6. Operating Cost: Although low pressure UV lamps have lower energy consumption, medium pressure UV lamps may require less frequent replacement due to their higher UV output. This factor needs to be considered in the long-term cost analysis.
7. Maintenance.
8. Maintenance: Low pressure UV lamps generally require less maintenance due to their lower operating temperature and longer lamp life. This can be an advantage in remote locations in Indonesia where access to skilled technicians may be limited.
9. Maintenance.

In the Indonesian context, the choice between low and medium pressure UV lamps often depends on the specific characteristics of the water to be treated and the scale of operations. For example, for well water treatment in small and medium industries, low pressure UV lamps may be a more economical and practical choice. Meanwhile, for wastewater treatment in large factories or municipal water treatment facilities, medium pressure UV lamps may be more appropriate due to their ability to handle larger volumes of water and more complex contaminants.

Applications in Indonesian Industry

reverse osmosis technology to produce high quality process water.

In addition, for clients in the food and beverage industry, PT Beta Pramesti has developed a solution that combines Asahi ultrafiltration membranes with a low-pressure UV system to produce water that meets strict food safety standards.

Challenges and Considerations in UV System Selection

While UV technology offers many advantages in water treatment, there are some challenges and considerations to be aware of, especially in the Indonesian context:

1. Raw Water Quality: Raw water in Indonesia often has high levels of turbidity and organic content. This can reduce the effectiveness of UV systems as particles can block UV radiation. In such cases, pre-treatment such as coagulation and filtration may be required prior to the UV disinfection stage.
2. Water Quality: Raw water in Indonesia often has high turbidity and organic content.
3. Fluctuations in Water Quality: Water characteristics in Indonesia can change significantly depending on the season or location. The selected UV system must be flexible enough to handle these variations. For example, the use of Sentinel WS monitoring system can help in adjusting the UV dosage in real-time based on the incoming water quality.
4. Water Quality Fluctuations.
5. Parts and Service Availability: In remote locations, access to spare parts and technical services may be limited. Therefore, the selection of a reliable and easy-to-maintain UV system is very important. PT Beta Pramesti offers comprehensive operation and maintenance services to ensure the system continues to function optimally.
6. Energy Costs: Given the relatively high cost of electricity in some areas of Indonesia, energy efficiency is an important consideration. In this case, low-pressure UV lamps may be more advantageous for small to medium scale applications.
7. Low Pressure UV Lamps.
8. Regulations and Standards: Regulations regarding water quality in Indonesia are constantly evolving. The UV system selected must be able to meet current standards and be flexible enough to accommodate future regulatory changes.
9. Regulations and Standards.

To address these challenges, PT Beta Pramesti adopts a holistic approach in designing water treatment systems. For example, to address the issue of fluctuating raw water quality, the company often integrates UV systems with other technologies such as dissolved air flotation (DAF) or ultrafiltration to ensure consistent system performance.

Innovations and Future Trends

UV technology is constantly evolving, and several recent innovations have the potential to improve the effectiveness and efficiency of UV disinfection systems in Indonesia:

1. LED UV lamps: Although still in the development stage for large-scale applications, LED UV lamps offer the potential for higher energy efficiency and longer lifespan compared to traditional mercury lamps.
2. LED UV lamps.
3. System UV Pulsed-Xenon.
4. Integration with IoT and AI: The use of smart sensors and real-time data analysis can optimize the performance of UV systems, automatically adjusting the dosage based on the incoming water quality.
5. Combining UV with Advanced Oxidation Processes: Combining UV with technologies such as ozonation or hydrogen peroxide can produce highly reactive hydroxyl radicals, increasing treatment effectiveness for hard-to-remove contaminants.
6. Combining UV with Advanced Oxidation Processes.

PT Beta Pramesti keeps abreast of these technologies and invests in research and development to adapt these innovations into solutions suitable for Indonesian conditions. For example, the company is testing pilot-scale UV LED systems for applications in the food and beverage industry, hoping to offer more energy-efficient solutions in the future.

Conclusion

The choice between low-pressure and medium-pressure UV lamps in water treatment in Indonesia depends on various factors, including the characteristics of the water to be treated, the scale of operation, energy requirements, and economic considerations. Both types of lamps have their own advantages and disadvantages, and the right selection can significantly affect the effectiveness and efficiency of the overall water treatment system.

In Indonesia, with its unique challenges of low pressure and medium pressure UV lamps, it is important to choose the right one.

In Indonesia, with its unique challenges in terms of water quality and availability, UV technology offers an effective and environmentally friendly disinfection solution. However, it is important to consider this technology as part of a comprehensive water treatment approach, often in combination with other treatment methods for optimal results.

PT Beta Pramesti, with experience in the field of UV technology, offers an effective and environmentally friendly disinfection solution.

PT Beta Pramesti, with over 39 years of experience in the water treatment industry in Indonesia, continues to be committed to providing innovative and customized solutions to clients' specific needs. By understanding the complexity of water challenges in Indonesia and keeping abreast of the latest technological developments, the company is well-positioned to assist industries in Indonesia in achieving their water treatment goals, be it to meet environmental regulations, improve operational efficiency, or contribute to sustainable water resource management.

Questions and Answers

1. Are low pressure or medium pressure UV lamps more suitable for water treatment in Indonesia?

Answer: The choice between low pressure and medium pressure UV lamps depends on the specific application. For small to medium scale water treatment systems, such as in the food and beverage industry or healthcare facilities, low pressure UV lamps are often the more economical and efficient choice. However, for large-scale industrial wastewater treatment or water with high levels of contamination, medium pressure UV lamps may be more suitable due to their ability to deliver higher UV doses. In Indonesia, where raw water quality can vary greatly, the flexibility of medium pressure UV lamps in dealing with different types of contaminants can be an advantage.

2. How to ensure the effectiveness of a UV system in water conditions that are turbid or contain many suspended particles?

Answer: To ensure the effectiveness of a UV system in water conditions that are turbid or contain many suspended particles, several steps can be taken:

1. Pre-treatment: Using processes such as coagulation, flocculation, and filtration before the UV stage to reduce turbidity and suspended particles.
2. Increasing UV dosage: Using lamps with higher UV output or increasing the number of lamps.
3. Extending contact time: Designing a UV reactor with a longer retention time.
4. Using an automatic cleaning system: Installing a mechanical or chemical cleaning system to keep the UV lamp casing clean.
5. Real-time monitoring: Using UV and turbidity sensors to dynamically adjust system operation.

3. What are the main challenges in the implementation of UV systems in remote locations in Indonesia and how to overcome them?

Answer: The main challenges in the implementation of UV systems in remote locations in Indonesia include:
1. Limited access to spare parts and technical services.
2. Fluctuations in electricity supply.
3. Significant variations in water quality.
4. Limited trained human resources.

To overcome these challenges, several strategies can be implemented:
1. Selecting UV systems that are reliable and easy to maintain.
2. Integrating energy backup systems or using renewable energy sources.
3. Designing a flexible system with automatic adjustment capabilities.
4. Provide comprehensive training for local operators and remote support.
5. Implement a remote monitoring system for monitoring and diagnosis.
6. Keeping critical spare parts in stock on site.

References

1. Hendricks, David W. (2006). Fundamentals of Water Treatment Unit Processes: Physical, Chemical, and Biological. CRC Press, p. 677-678.

2. Snicer, G.A., Malley, J.P., Margolin, A.B., Hogan, S.P. (2000). UV Disinfection of Wastewater Effluents: Bioassays Show Efficacy Against Selected Pathogens. Water Environment & Technology, 12(2), p. 18.

3. Masschelein, W.J. (2002). Ultraviolet Light in Water and Wastewater Sanitation. Lewis Publishers, p. 14.

4. Malley, J.P. (2000). Ultraviolet Disinfection. In: Control of Microorganisms in Drinking Water. AWWA Manual M48, American Water Works Association, Denver, CO, p. 8.

5. Byrne, W. (2002). Reverse Osmosis: A Practical Guide for Industrial Users. Tall Oaks Publishing, p. 34.
