Modern twin‑screw presses run at ~12–14 rpm, push toward an adjustable cone at up to ~60 bar, and can recover well above 90% of available oil — if they’re maintained. New analysis shows maintenance alone can halve fiber oil losses and cut breakdowns by ~60%.
In the high‑throughput world of palm oil, a single piece of kit decides whether a mill hits its numbers: the continuous screw press. It replaced batch hydraulic and spindle presses years ago, and for good reason: when the pressure profile is right, modern units recover oil with efficiencies well above 90% (FAO) (FAO).

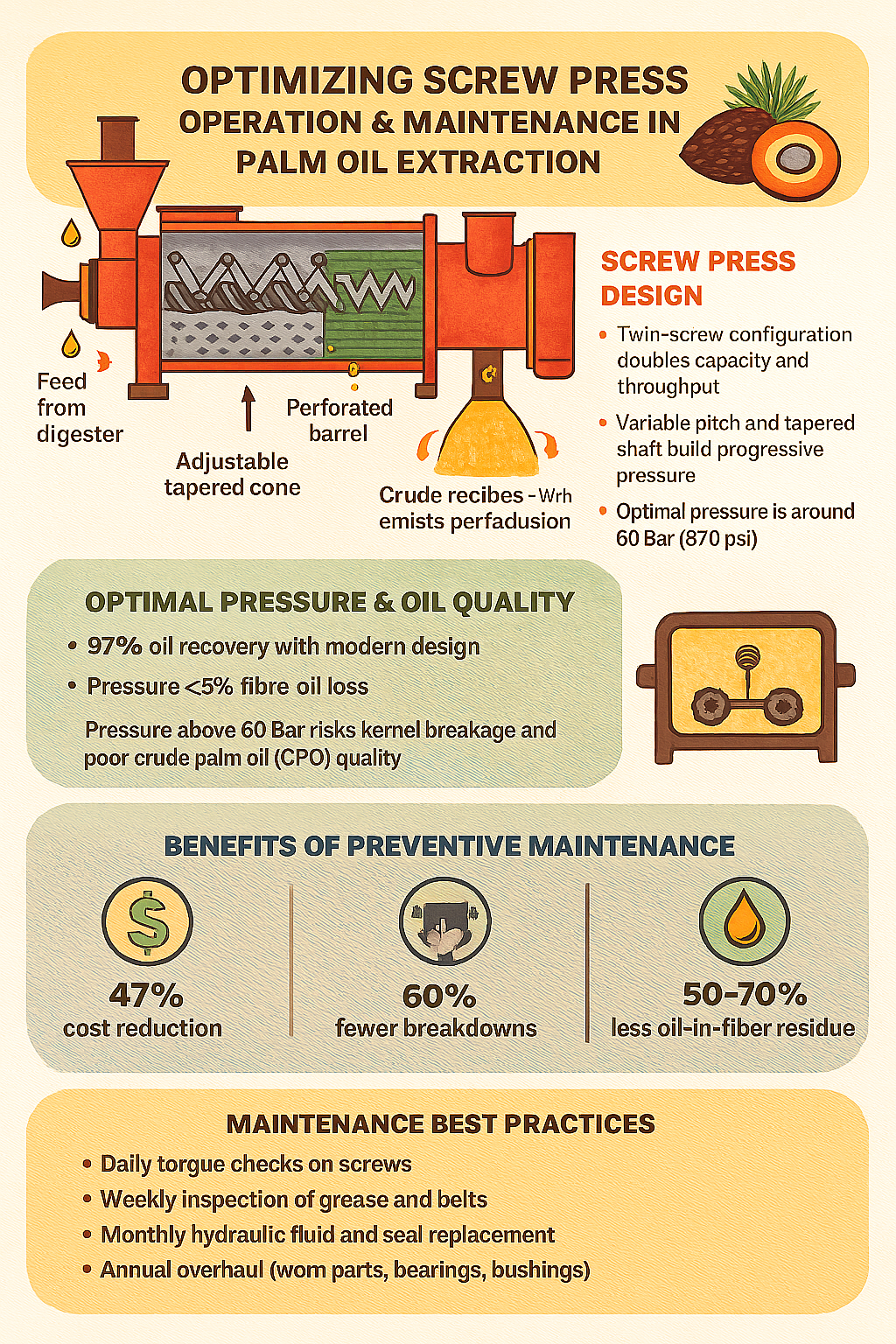

The hardware is deceptively simple: a perforated horizontal cage and one or more intermeshed worm shafts (screws that convey and compress) push hot, digested fruit mash toward a tapering cone that acts as an adjustable choke. Oil is forced through thousands of holes; fiber and cake discharge at the outlet (FAO) (ResearchGate).
Everything else is engineering for pressure: screws with decreasing pitch and depth toward the cone; twin‑screw or multi‑screw layouts for capacity; and a fill‑level regime that keeps the chamber nearly full. Even fill matters: an empty chamber wastes pressing efficiency (ResearchGate) (ResearchGate) (Kharisma Sawit).
Continuous screw press architecture
Standard operating setup: digester discharge feeds via a hopper at a controlled rate; the electric drive — typically 15–30 kW for medium presses — turns the worms at ~12–14 rpm; hydraulic rams push the cone to choke the outlet and build pressure on the order of tens of bar (FAO). The shearing and kneading inside the press act as secondary digestion, rupturing cells the digester missed (FAO).
Geometry is not cosmetic. A 10 tph twin‑screw unit can carry on the order of 22,000 perforations in its cage and run two hollow steel worms — left‑hand (LHS) and right‑hand (RHS) — rated for heavy duty (mesinpks.com).
Pressure set‑points and trade‑offs
Oil extraction rate (OER) rises with pressure, because higher squeeze reduces oil‑in‑fiber loss — but with diminishing returns and new risks. Engineering analysis shows residual oil loss decreases logarithmically with pressure, while kernel breakage climbs polynomially when nuts are over‑compressed (AIP Conf. Proc.). Industry targets typically hold fiber oil loss below ~5%. One recent analysis found an optimal pressing pressure around 60 bar (≈870 psi) that met <5% fiber oil loss while keeping broken kernel (“pangol”) below 15% (AIP Conf. Proc.).
Pushing harder can backfire. Exceeding that zone yields little extra oil yet degrades quality by driving up free fatty acids and damaging kernels. FAO also notes that extremely high pressures worsen clarification and shelf‑life, with poorer bleachability and oxidative stability of crude palm oil (CPO) (FAO).
Multi‑screw configuration and throughput
Configuration changes pressure dynamics — and yield. A tapered inner shaft (gradually decreasing diameter) has been shown to boost press life and effectiveness versus a constant‑pitch screw (ResearchGate). Designers often build stages — rings, flights, cones — into the screw to create discrete compression zones; multiple screws (LHS and RHS) intermesh at the outlet, improving compaction.
Double‑screw presses have become standard because they nearly double capacity and throughput relative to single‑screw units (shortening cycle time). Some large mills run three or four screws in parallel (ResearchGate). In well‑designed systems, coordinated control of feed rate, screw rpm, and cone gap locks in extraction consistency.
Yield benchmarks and limits
Well‑run modern mills routinely exceed 90% extraction efficiency (FAO). A variable‑pitch, tapered‑shaft model reported ~97.7% extraction efficiency and ~83.7% oil yield by fruit weight under optimized conditions (ResearchGate).
By contrast, earlier field data show typical first‑press yields of ~12–19% of fresh fruit bunch (FFB) weight and overall efficiencies of ~75–80% for conventional screw presses (FAO). In practice, top mills now report residual oil‑in‑fiber at just 0.25–0.5% by weight of digested mass, roughly half the ~0.8–1.0% seen in older plants — gains credited to improved press design, OEM spare parts, and tight control (Alfa Laval).
Bottom line on limits: double‑/multi‑screw configurations and adjustable back‑pressure can push extraction efficiencies toward 95–98%, but practical OER tops out around the low‑20% of FFB weight, depending on fruit grade and maturity.
- Empirical figures: traditional Caltech‑design screw presses delivered ~17–19% first‑press oil on FFB and ~75–80% efficiency (FAO); modern designs report up to 97.7% of oil recovered and only ~2–3% loss (ResearchGate).
- Optimal pressure: ~60 bar (≈870 psi) minimized oil loss while limiting kernel breakage (AIP Conf. Proc.).
Maintenance schedules and failure modes
These machines run hot, hard, and abrasive. High pressure and fibrous solids wear screws, cages, bearings, seals, and drives. A Malaysian survey of 105 mills documented frequent malfunctions in both single‑ and double‑screw systems; the leading culprits were irregular maintenance and poor handling, compounded by fatigue and corrosion in hydraulic actuators and overloaded parts (ResearchGate). Typical presses run only 500–900 operating hours before requiring major maintenance or overhaul (ResearchGate).
The economics are blunt. A Failure Mode and Effect Analysis showed that prioritizing the screw press in a preventive plan (vs. ad hoc repairs) could save ~47.4% of annual maintenance costs (ResearchGate). Industry reporting attributes 40–50% of unplanned shutdowns to failures rooted in sloppy maintenance, with emergency breakdowns taking 12–24 hours and forfeiting on the order of 3,000 kg/h of CPO in a mid‑sized mill (PalmOilPresses.com). Plants with aggressive preventive protocols report virtually zero downtime on key equipment (Alfa Laval) (PalmOilPresses.com).
Operational checks and overhaul tasks
Discipline pays: daily checks of screw torque and filling level; weekly grease and belt inspections; monthly replacement of hydraulic fluids and seals. Annual or semiannual overhauls typically strip worms and cage for inspection and replacement of wear liners, thrust rings, bearings, and bushings.
Three levers protect yield: First, regular wear‑part replacement — worn screws or enlarged cage holes “leak” oil — using OEM or hardened spares to preserve extraction rates (Alfa Laval) (ResearchGate). Second, hydraulic calibration to hold roughly the best pressure (~60 bar) and avoid metal fatigue. Third, cleaning and lubrication: grease slides, ball bearings, and couplings daily; flushing hot water or steam helps detach cake and limit clogging.
Condition monitoring closes the loop. Mills deploy NIRS (near‑infrared spectroscopy) oil‑loss analyzers on fiber to quantify press effectiveness in real time; trending those data triggers work orders before failures show.
Yield, downtime, and cost metrics
Numbers that move the P&L: downtime from press failures typically costs 2–4 t CPO per hour in a mid‑sized plant (PalmOilPresses.com). Preventive schedules can cut maintenance costs by ~47% (ResearchGate), reduce unexpected breakdowns by ~60% and trim energy use by ~12% thanks to smoother operation (PalmOilPresses.com).
Yield improvement is measurable: halving fiber oil loss from ~0.8–1.0% down to ~0.25–0.5% has been achieved by keeping presses in “tip‑top condition” with strict OEM‑part replacements and preventive servicing, including in a Malaysian mill running 24/7 (Alfa Laval). One maintenance optimization study pegged the cost of targeting 90% press reliability at about Rp 131 million/year per mill, cutting failure costs by nearly half (ResearchGate).
Design, discipline, and the bottom line
Screw presses are the linchpin of oil recovery in a palm mill. Design choices — screw geometry, number of screws, cage design, and cone choke — shape pressure profiles that squeeze out nearly all available oil without over‑crushing kernels. Multi‑screw and adjustable‑cone designs enable extraction efficiencies well above 90% (ResearchGate) (FAO).
But those gains only show up with meticulous upkeep. Studies and industry reports converge: poor maintenance drives frequent malfunctions and higher oil losses; aggressive preventive programs extend life, minimize downtime, and improve yield (ResearchGate) (PalmOilPresses.com). Even a 1% reduction in unrecovered oil translates to many tons of additional CPO per year in a large mill — an outcome that more than offsets the cost of parts and service.
Sources cited across this report include FAO analyses of press evolution and quality effects (FAO) (FAO), industry and academic studies on screw design and maintenance economics (IJSER) (ResearchGate) (ResearchGate) (AIP Conf. Proc.), OEM and operator case studies on uptime and oil loss (Alfa Laval) (PalmOilPresses.com), and equipment specifics for twin‑screw assemblies (mesinpks.com) along with operational notes on even filling (Kharisma Sawit).
