High‑pressure boilers hate silica. The contaminant forms rock‑hard, heat‑insulating deposits, drives up fuel burn, and can even foul turbines. Plants are countering with near‑zero‑silica makeup water and phosphate‑based internal chemistry.
Industry: Oil_and_Gas | Process: Downstream_
Silica in boiler feedwater looks harmless—until it hits the heat. As pressure and temperature rise, even a trace of dissolved silica concentrates and precipitates on heat‑transfer surfaces as “rock‑hard, glassy” scale that is highly insulating (www.lenntech.com; id.genesiswatertech.com). Intelix’s guide notes that the insulating layer forces the boiler to work harder—burning more fuel—and can lead to “overheating, tube failure, unscheduled downtime and financial loss” (id.genesiswatertech.com).
This is not just a boiler‑tube problem. Hard silicates can carry over and deposit on superheaters and turbine blades, causing imbalance and failure (dieselship.com; policy.asiapacificenergy.org). Above roughly 400 psi, silica becomes volatile and partitions into steam, making high‑pressure boilers especially vulnerable (www.lenntech.com; www.lenntech.com).
High‑pressure silica limits and risk
Boiler chemists target near‑zero silica in steam: “silica deposits are not a problem” if steam silica stays below 0.02 ppm (www.lenntech.com). Table values concur: for boilers above ~40 kg/cm² (≈600 psi), feedwater silica is usually limited to 0.1–0.3 ppm (policy.asiapacificenergy.org). By contrast, natural water can carry 1–100+ ppm of soluble silica (www.lenntech.com), so even well‑treated sources must be watched.
The takeaway is simple: lowering silica in boiler water dramatically cuts silicate scaling (www.lenntech.com; www.lenntech.com).
Makeup demineralization and silica removal

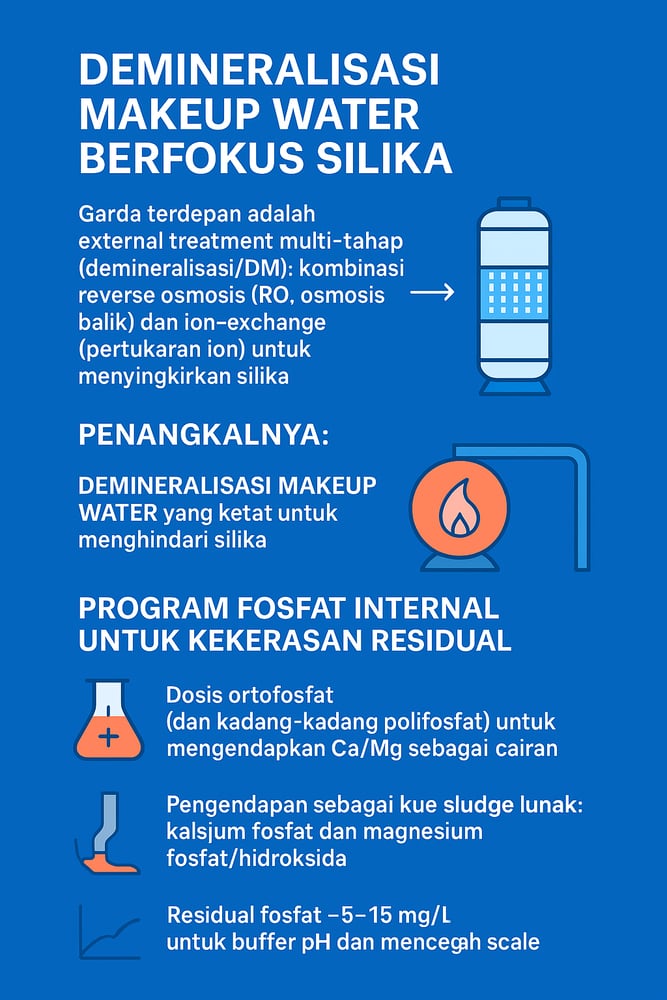

External treatment is the first line of defense. Most high‑pressure units use multi‑stage demineralization—reverse osmosis (RO) and ion‑exchange—to strip silica from makeup. Ion‑exchange columns have cut raw‑water silica to less than 0.1 ppm; a classic study reported an anion‑exchange effluent of ~0.05–0.07 ppm from a 20 ppm silica feed (www.jstage.jst.go.jp). Plants commonly pair RO with mixed‑bed deionizers for low‑ppb silica when maintained properly.
Specifications reflect the pressure risk. ESCAP guidelines (based on IS 10392) limit feed silica to about 1.0 ppm at low pressure, dropping to 0.3 ppm (≈600 psi) and 0.1 ppm (≈800+ psi) as pressures rise (policy.asiapacificenergy.org). In practice, units above ~100 bar strive for feed silica ≪0.1 ppm.
When silica shows up in the boiler, it usually points to makeup contamination. Immediate corrective action is to increase boiler blowdown (controlled discharge to manage total dissolved solids) and fix the root cause (www.lenntech.com). Plants check demineralizer performance (socketing fresh resin or membranes if conductivity/silica leaks are detected), verify DM regeneration, and inspect pretreatment for opportunities to reduce raw‑water silica (e.g., coagulation or acidification upstream of RO). Continuous monitoring of silica in feedwater and condensate is critical (www.lenntech.com).
Membrane trains are the workhorses here. Plants standardize on brackish‑water RO for up to 10,000 TDS—see brackish‑water RO—and polish with mixed‑bed deionizers such as mixed‑bed. A full ion‑exchange lineup, including strong/weak cation/anion systems, is available as Ion‑Exchange. For RO pretreatment and drinking water from surface sources, some facilities consider ultrafiltration—but the silica control foundation remains RO plus deionization.
Phosphate‑based internal hardness control
Even with tight demineralization, tiny hardness leaks—often from zeolite softeners, resin leakage, or condensate ingress—can introduce calcium and magnesium. Boilers counter with phosphate precipitation programs: dosing orthophosphates (and sometimes polyphosphates) forces residual hardness to precipitate as calcium phosphate (Ca₃(PO₄)₂) and magnesium phosphate/hydroxide, forming soft sludge rather than tenacious scale (www.watertechnologies.com; www.watertechnologies.com).
Calcium hardness is decisively handled: calcium phosphate is virtually insoluble in boiler water, and even a small phosphate residual will precipitate nearly all Ca hardness (www.watertechnologies.com). At high pH (~11–12), Ca₃(PO₄)₂ particles carry a non‑adherent surface charge, forming a sludge that’s easily removed by bottom blowdown or mud drum purges (www.watertechnologies.com). This coordinated phosphate program (high pH + phosphate) has been standard since the 1930s, displacing carbonate programs (www.watertechnologies.com; www.watertechnologies.com).
Magnesium behaves differently. Under phosphate treatment, magnesium typically precipitates as magnesium silicate (in the presence of silica) or as Mg(OH)₂. If alkalinity is too low, sticky Mg₃(PO₄)₂ can form (www.watertechnologies.com). Engineers therefore maintain enough alkalinity so Mg leaves as non‑adherent silicate or hydroxide (www.watertechnologies.com), and often add organic dispersants (lignins, tannins) or synthetic polymers to fluidize sludge. Polymer chemistry can “disperse magnesium silicate and magnesium hydroxide as well as calcium phosphate,” helping carry precipitates to steam drum mud collectors (www.watertechnologies.com).
For residual hardness ahead of the boiler, classic zeolite systems remain common; a dedicated system such as a softener reduces calcium/magnesium ions and helps prevent scale formation before internal chemistry takes over. Inside the boiler, comprehensive programs like boiler chemicals and targeted scale control are used to sustain the phosphate approach.
Operating setpoints and “hideout” dynamics
Typical operating targets are modest. Many industrial boilers run a phosphate residual of ~5–15 mg/L as PO₄ (en.zozen.com). This buffers pH (~9.5–11) and prevents scale while allowing easy blowdown of sludge (www.watertechnologies.com; en.zozen.com).
Control matters: too little phosphate invites CaCO₃ or CaSO₄ scale; too much—or at elevated temperature—can trigger phosphate “hideout” (temporary precipitation that later re‑dissolves) (en.zozen.com). Guidelines typically scale phosphate and pH with pressure; higher pressures/temperatures need higher levels to achieve the same protection.
Maintaining these ranges hinges on steady chemical feed; many operators rely on accurate metering via a dosing pump. For alkalinity and pH stability, programs include alkalinity control.
Troubleshooting boiler water chemistry
Routine monitoring underpins reliability. Plants track silica/hardness in makeup, boiler water phosphate and pH, and blowdown conductivities. Common issues and targeted remedies include:
- High silica in boiler or steam: Usually makeup contamination. Measure silica in demin effluent and boiler water. If above spec, increase blowdown to purge before it concentrates (www.lenntech.com). Verify demineralizer integrity (check resin exchange capacity or RO membranes), and inspect condensate lines for cross‑contamination. To keep steam silica below ~0.02 ppm, boiler water often must be under 0.1–0.3 ppm (www.lenntech.com; policy.asiapacificenergy.org). If scaling occurs, chemical cleaning (e.g., hydrofluoric acid) may be required; prevention is far preferable.
- Unexpected hardness breakthrough: If blowdown shows residual Ca/Mg, review the phosphate program and feedwater hardness. Ensure post‑softener hardness is very low (ideally <0.02 meq/L). Check softener regeneration or rinse—systems like a softener must run to spec. In the boiler, prompt phosphate dosing (and sodium hydroxide) can re‑precipitate hardness. If phosphate is low (below ~5 mg/L PO₄) or pH is low, boost them. Confirm boiler water pH is ~9.5–10, then resume normal sludge blowdown.
- High or low pH: Boiler water should run ~9.5–11. Low pH (<9) can indicate dissolved‑oxygen corrosion—check deaerator (device removing dissolved oxygen) efficiency and sulfite dosage; increasing sulfite or adding neutralizing amines can correct acidity. Plants often employ oxygen scavengers and a neutralizing amine program. High pH (>11) with low phosphate may precipitate calcium hydroxide or cause caustic gouging; adjust alkali or phosphate. Tie pH control to phosphate (“coordinated pH/P”): excess caustic without phosphate can leach copper or attack boiler steel.
- Sudden conductivity rise: Often feedwater contamination (chloride, oil, or silica ingress). Check makeup resistivity, inspect condensate, and analyze for specific ions. If chloride or nitrate are high, or oily carryover or acid ingress is present, adjust chemical feeds accordingly. For organic load, some operators add activated carbon; identifying chemical signatures helps distinguish sulfite exhaustion (falling pH) from phosphate hideout (phosphate dips on heat steal).
- Foaming or carryover: High TDS, oil, or suspended solids drive priming. Ensure proper three‑element control of conductivity/TDS in blowdown. If carryover is silica‑linked (foamy high‑purity water), it often stems from silica or phosphate levels pushing chemistry out of balance; correct feedwater silica or adjust chemical dosing. Internal programs are typically supported by scale control.
In practice, trends, analyses, and measured responses form a troubleshooting matrix. For a high‑silica trend, plants recheck demineralization and increase continuous blowdown; for hardness breakthrough, they boost the phosphate residual and pH. All actions are data‑driven, using feedwater analyzers and boiler samples to confirm fixes. Regular testing against vendor or standard limits keeps silica, hardness, alkalinity, and inhibitor levels in safe ranges (policy.asiapacificenergy.org; www.lenntech.com).
Documented outcomes and reference ranges
Handbooks and studies converge on the same playbook: near‑zero feed silica via demineralization, plus robust phosphate+alkali chemistry, prevents silica‑induced outages. Typical feed silica specs are ≪0.1 ppm for high pressures (policy.asiapacificenergy.org), and typical phosphate dosing targets a 5–15 ppm residual (en.zozen.com). One study reported “excellent” results with 0.35 mg/L silica in the drum (www.researchgate.net).
The upside is tangible: combining strong external purification and an appropriate phosphate‑alkalinity treatment program yields dramatically reduced scale, lower fuel costs due to clean heat transfer, and fewer outages (www.chemaqua.com; www.chemaqua.com; id.genesiswatertech.com).
Where plants need flexibility, modular systems help. Skids and packages for RO and ion exchange are consolidated under membrane systems, with targeted consumables available via ion‑exchange resin and program additives such as neutralizing amine or oxygen scavengers to fine‑tune the regime.
