Inside the Bleaching Tower: Temperature, pH, and Consistency Decide Pulp Brightness

A 10 °C shift can roughly double bleaching reaction rates. Miss the pH or run too thin, and mills see ±5 ISO‑point brightness swings, wasted chemicals, and fiber damage — unless real‑time sensors and tight controls step in.

Industry: Pulp_and_Paper | Process: Pulp_Bleaching

In pulp bleaching, the physics is unforgiving and fast: raise the stage temperature by about 10 °C and reaction rates roughly double (an Arrhenius effect on reaction kinetics), but the wrong pH or pulp consistency flips those gains into reversion and strength loss (freepatentsonline.com). Mills have documented up to ±5 ISO–point swings in final tower brightness driven by variability in chip strength, chemical quality, and sensor errors (haberwater.com).

That’s why temperature, pH (acidity/alkalinity), and pulp consistency (solids percentage in the slurry) have become the trio to watch in the bleaching towers. Modern lines use distributed pH probes, redundant RTDs (resistance temperature detectors), and consistency meters — plus real‑time optical brightness analyzers — to keep the process in the window and the ISO brightness on spec (valmet.com) (freepatentsonline.com).

Stage temperature control and kinetics

Bleaching reactions are highly temperature‑dependent. Warm stages accelerate oxidation and extraction, driving brightness faster. Acid‑hydrolysis “X” stages (acid extraction to remove chromophores) often run at 85–95 °C for several hours to remove hexenuronic acids effectively; below ~85 °C, little HexA removal occurs, which later re‑darkens the pulp (freepatentsonline.com).

In practice, primary chlorine dioxide (D₀) or chlorine (C) stages operate around 50–75 °C, while peroxide (EP) or hot caustic extraction stages often run 80–90 °C. Ozone stages sit cooler (typically <50 °C) to avoid yellowing (freepatentsonline.com). Push temperature too high and cellulose degradation, uneven reactions, and brightness reversion emerge; too low and the tower undershoots target brightness. As a rule of thumb, a 10 °C increase roughly doubles the bleaching reaction rate (so mills balance higher yield vs. faster bleaching) (freepatentsonline.com).

Stage pH windows and selectivity

Each stage has a pH sweet spot. Oxygen and peroxide stages require high alkalinity (pH 11–12), chlorine dioxide or chlorine stages run near‑neutral (pH 5–7), and acidic extraction (X stage) requires low pH (~2.5–3.5) to hydrolyze chromophores. If the pulp pH is too high in the acid step, that hydrolysis is incomplete (leaving hexenuronic acids that later re‑darken the pulp). In a peroxide stage, a lower pH causes peroxide to decompose to water rather than bleaching species, wasting chemicals and potentially yellowing the pulp (freepatentsonline.com).

Conversely, an overly acid caustic extraction scours fibers (reducing viscosity), while too high pH in an acid stage wastes acid without brightness gain. Accurate pH control at each tower inlet and outlet is critical; boards and industry references emphasize that deviations in pH and temperature cause large swings in achieved brightness (freepatentsonline.com). Many mills pair robust pH measurement with accurate chemical feed using a dosing pump to hold setpoints tightly during load changes.

Pulp consistency and mixing hydrodynamics

Pulp concentration shapes both mixing and chemical efficiency. Typical practice spans low consistency (3–6%), medium (7–15%), and high (25–30%), depending on equipment (paperpulpequipments.com). Low consistency (thin pulp) dilutes chemicals and inflates tower volume; it also weakens mixing. In one study of a pressurized D‑stage at 3.2% consistency, only 25% of the flow was well‑mixed — 75% behaved like plug flow (freepatentsonline.com).

That incomplete mixing slows delignification and can cause streaks or off‑grade pulp. By contrast, medium/high consistency (10–15%) concentrates chemicals at fibers, improves collision rates, and saves steam — reducing chemical demand per point of brightness. Very high consistency (>20%) demands strong mixers and tight viscosity control. Modern lines increasingly eliminate very dilute stages to curb water use and organic discharge, favoring medium/high‑consistency towers (paperpulpequipments.com).

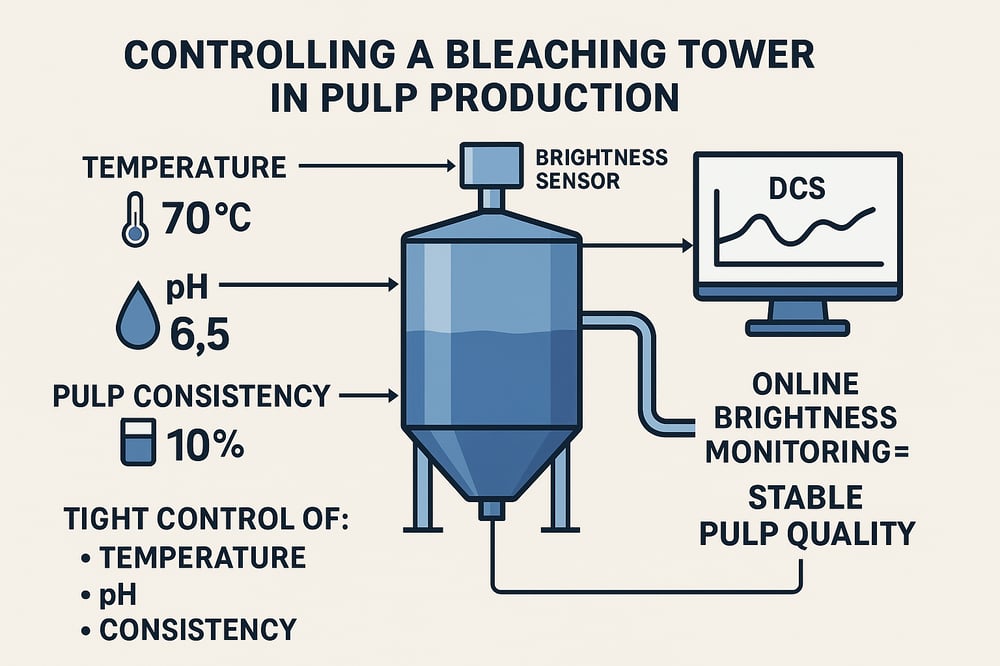

Bleaching tower control strategy

ChatGPT Image Oct 9, 2025, 03_29_03 PM

These parameters interact — and small drifts cascade. If tower temperature falls or consistency changes, a fixed chemical dose undershoots and leaves higher residual lignin (lower brightness). If pH is off, stage selectivity shifts; in a peroxide stage, lower pH drives decomposition to water rather than bleaching species. Over‑bleaching (from high temperature or low consistency) damages cellulose and hurts tensile strength (freepatentsonline.com).

In practice, mills deploy distributed pH probes, redundant RTDs, and consistency meters on each tower loop — often with downstream whitewater filtration — to maintain setpoints. In advanced installations, final tower conditions (temperature, pH) are adjusted based on upstream chemical carryover and retention‑time models (freepatentsonline.com). Automated chemical feed, typically via a dosing pump, ties the measurements to action.

Real‑time brightness analytics and compensation

Modern mills increasingly rely on online optical sensors to monitor brightness in real time. Inline analyzers (for example, Valmet Brightness sensors) sample the pulp or filtrate and report ISO brightness (457 nm reflectance), optical brightener content, and even residual lignin/pulp solids. Systems include built‑in temperature compensation and controlled illumination to minimize liquor interference, enabling the DCS to adjust chemical dosing on the fly (valmet.com).

The payoff is variability reduction. One case study reported that automated brightness feedback cut final tower brightness variation from ±5% ISO down to about ±1%, trimmed bleach usage by ~10%, and improved fiber strength (haberwater.com) (haberwater.com). Designers caution that brightness sensors “are sensitive to pH, temperature, velocity, pulp consistency, mixing conditions…” so modern control loops normalize or “compensate” the reading with these parameters (freepatentsonline.com).

With sensors and advanced control (“compensated brightness control” or model‑predictive control), the bleaching tower shifts from open‑loop to nearly closed‑loop operation. Using online brightness plus kappa/residual signals, mills dose exactly the needed chemical mass, avoiding under‑ and over‑bleaching. Experience shows mills using feedback control typically achieve final pulp brightness and quality targets while cutting chemical consumption (e.g., ~10% savings in bleach chemicals) and reducing rejects (haberwater.com). The business outcome: stable brightness, maximized yield, and fewer off‑specs — anchored by tight temperature, pH, and consistency control (valmet.com) (freepatentsonline.com).
