Chemical pulping runs on heat; mechanical pulping runs on megawatts. Mills that capture the heat they already make — from digester blowdown to refiner vapor — report double‑digit gains in apparent efficiency.
Pulp mills burn through energy — and much of it is already inside the process. Chemical pulping (e.g., kraft) is heat‑intensive, with steam or hot liquor generating more than 70% of a mill’s energy use (mdpi.com) (researchgate.net). Mechanical pulping (TMP/RMP; thermomechanical/refiner mechanical pulping) consumes very high electricity — often about 1,500–2,000 kWh per ton of pulp — versus 1–30 kWh/ton for crushing (degruyterbrill.com).
The largest efficiency wins come from heat recovery: digester “blowdown” on the chemical side, and the steam generated during refining on the mechanical side.
Chemical pulping blowdown heat recovery
In kraft digesters (alkaline chemical pulping), “blowdown” — the hot spent cooking liquor discharged from the digester — exits with high sensible heat. In continuous digesters, temperatures often run 120–170°C (patents.justia.com). If that stream is discharged without recovery, the heat is lost and boilers must supply more steam to maintain cooking conditions.

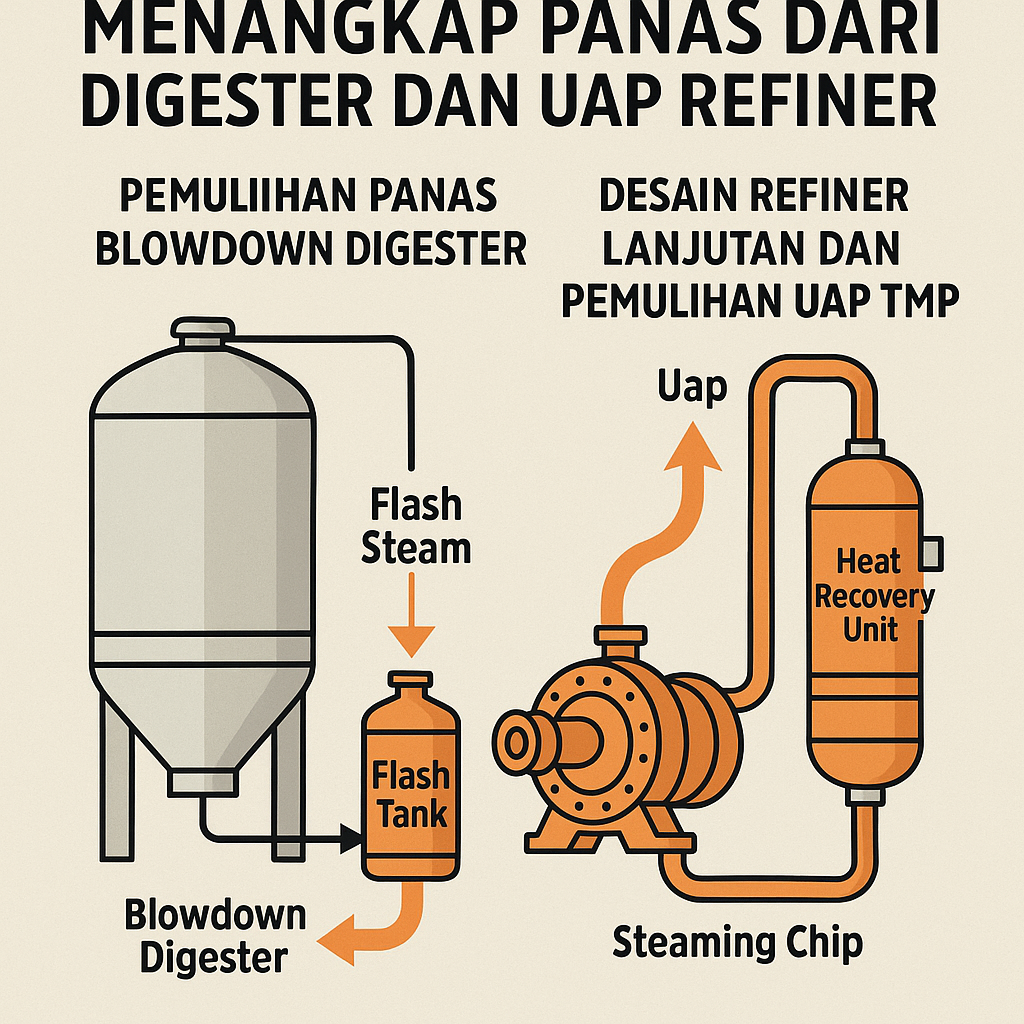

Modern mills flash or reboil blowdown liquor. Routing hot black liquor (spent cooking liquor containing lignin and chemicals) through flash tanks generates flash steam at roughly 100–120°C, which is then sent to processes such as chip preheating (patents.justia.com). That steam replaces boiler steam. Talebjedi et al. (2021) note that treating the flash steam as useful energy — for example via heat exchangers or economizers — yields a 22% apparent efficiency gain in the refining system (mdpi.com). In other words, including recovered heat in the energy balance can improve efficiency by about 20–30%; in their case study, winter recovery raised effective efficiency roughly 27% above summer levels (mdpi.com) (mdpi.com).
In practice, mills commonly route this flash steam to preheat incoming white liquor (fresh cooking chemicals) or wood chips (patents.justia.com). Some plants further upgrade blowdown heat via reboiler/pressurizing schemes — patents from Andritz are cited — to produce “clean” steam for chip steaming with fewer noncondensables. The approach taps the liquor’s enthalpy while sending concentrated black liquor (now cooler) to evaporation. Chemical circuits rely on precise metering of reagents; accurate chemical dosing is a standard utility capability (dosing pump).
Capturing digester heat matters because pulping and drying consume about 70–80% of mill energy (researchgate.net). Policy signals align: in Indonesia, regulators explicitly encourage using black liquor for energy to cut fuel use (infopublik.id). For broader context, Adven AB reports that advanced evaporation techniques — such as mechanical vapor recompression on black liquor — can cut steam use by about 50%, though this is for black liquor concentration rather than specifically blowdown (adven.com).
Mechanical pulping refiner designs
Refining equipment represents roughly 70–80% of a TMP plant’s total energy use (mdpi.com). That’s why advanced refiner designs and process schemes are central to savings. High‑consistency (HC) refiners (large‑diameter twin or conical‑disc machines), staged refining, and LC–HC (low‑consistency/high‑consistency) sequences — including rejects refining — have lowered specific energy. Studies report that modern LC–HC fractionated processes can cut electricity use by on the order of 10–20% compared to older single‑stage designs (degruyterbrill.com). Sandberg et al. (2020) cite mill trials and modeling — combining low‑intensity primary refining with high‑intensity secondary refining — yielding roughly 10–20% electrical savings without compromising fiber quality (degruyterbrill.com).
In practical terms, Swedish/Nordic mills today achieve TMP energies as low as about 1,800 kWh/t for newsprint grades, reflecting decades of such innovations (degruyterbrill.com). Good machine control (plate condition, pulp consistency, intensity) and process sequencing (e.g., pressure refining, twin refiners) further improve kWh/ton, though gains become incrementally smaller at state‑of‑the‑art mills.
Refiner vapor heat recovery units
Even with optimal hardware, most TMP refining energy turns into heat. ANDRITZ notes that approximately 70–80% of the power input to a TMP refiner is converted to water vapor (andritz.com). Historically this “waste” steam was vented or condensed with cooling water; modern practice is to recover it. Nearly all current TMP lines include heat‑recovery units (HRUs) or condensers on the refiner vapor.
The vapor is dirty — fiber, extractives, air — but specialized HRUs (e.g., pressurized reboilers) can handle it. By condensing the vapor against boiler feedwater or low‑pressure steam systems, mills recapture heat that would otherwise be lost. The effect is substantial: Talebjedi et al. calculate that using the recovered steam as useful energy lowers the net refining energy consumption by about 22% annually (mdpi.com). They also note a strong seasonal effect: during high heating demand (winter), more of the ~70–80% vapor is used, so effective efficiency can jump about 27% above low‑demand periods (mdpi.com).
In practice, the recovered steam typically supplies the mill’s dryer or district heating; ANDRITZ cites cases where all low‑pressure steam needs — and even turpentine recovery — are met by reclaiming refiner vapor (andritz.com). Condensed steam is generally returned as condensate to the utility loop (steam condensate after heat exchange cooling can be managed via polishing steps) (condensate polisher). Conversely, failing to capture this heat forces extra boiler firing. Energies (2021) reports that untreated refining losses fixed TMP energy efficiency at only about 10–15% (mdpi.com). After recovery, that figure effectively rises by the 20+ percentage points noted above (mdpi.com).
Economics, policy, and integration
The through‑line is clear: in both chemical and mechanical pulping, heat recovery yields large energy savings. For chemical (kraft) digesters, integrating heat‑recovery flash tanks or economizers on the blowdown stream converts lost cooking heat into usable steam for chip preheating or liquor preheat (patents.justia.com), reducing overall steam demand and fuel consumption. For mechanical pulping, advanced refiner designs and process layouts can trim electricity use by roughly 10–20% (degruyterbrill.com), while the single biggest gain comes from capturing the 70–80% of input energy released as steam; implementing HRUs or heat‑exchanger packages on the refiner vapor stream routinely improves the apparent efficiency by around 20–25% (mdpi.com).
These measures have clear paybacks: lower fuel and power costs, reduced emissions, and — under regulatory pressure — compliance with efficiency standards. Indonesian policy explicitly encourages using black liquor for energy in mills (infopublik.id). Vendor literature and patents (e.g., ANDRITZ HRU for TMP and digester flash steam systems) document field implementations and designs (andritz.com) (patents.justia.com).
Sources and specific citations
Industry and academic studies of pulp mill energy use include Energies 14(6):1664 (2021) (TMP energy model by Talebjedi et al.; multiple findings on 22% annual improvement and ~27% winter uplift: mdpi.com; mdpi.com; sector context on heat intensity: mdpi.com); Sandberg et al., Nord. Pulp Pap. Res. J. 35(1):3–29 (2020) and 36(3) (2021) on mechanical pulping reviews (evidence for 10–20% savings and current TMP energy benchmarks: degruyterbrill.com; degruyterbrill.com); ANDRITZ product literature on HRUs (andritz.com); patents on digester flash steam and blowdown heat use (patents.justia.com); Indonesian industry reports and regulations on black‑liquor energy use (researchgate.net) and a Ministry of Industry (RI) press release (Nov 2024) on the pulp & paper NZE pledge (infopublik.id). For context on black liquor evaporation, Adven AB describes mechanical vapor recompression cutting steam use by ~50% in concentration duty (adven.com). Paminto et al., Jurnal Energi & Manufaktur 13(1):1–7 (2020) provide Indonesian pulp energy analysis.
