Pulp and paper mills face tight discharge limits and huge water volumes. Plants that wire up pH, DO, turbidity, and COD/TOC sensors to automated controls — and back them with a rigorous lab program — are posting high removal efficiencies and near‑zero permit excursions.
Pulp and paper effluent is governed by strict numbers. Indonesia’s MenLH Decree 51/1995 caps pulp‑mill discharges at 150 mg/L BOD₅ (biochemical oxygen demand over 5 days), 350 mg/L COD (chemical oxygen demand), and 200 mg/L TSS (total suspended solids). Paper mills face 125 mg/L BOD₅, 250 mg/L COD, and 125 mg/L TSS, with pH held between 6.0–9.0 (MenLH Decree 51/1995). Compliance in practice means staying well below those thresholds most of the time.
The stakes are large. A typical pulp mill generates 20–100 m³ of wastewater per ton of pulp (Journal of Environmental Management). Loads are dominated by dissolved organics from lignin and tannins, plus solids and nutrients (US EPA; Journal of Environmental Management).
Most mills run trains of screening, flocculation, sedimentation, neutralization (pH adjustment), and biological treatment. Primary debris removal often starts with an automatic screen, followed by sedimentation in a clarifier before the biological stage. For the secondary step, many plants rely on activated sludge, with studies citing 25–65% COD removal when nutrients are added (SCIRP) and typical BOD₅ removals even higher. Finland industry reviews suggest top performers often push effluent BOD and COD to below one‑tenth of raw values (SCIRP).
Internal reuse is already “considerable” at many mills (a survey of 244 facilities) (US EPA). That lowers discharge volumes — but puts a premium on monitoring and control to hold pollutant concentrations inside the permit window.
Regulatory targets and pollutant loads
The numeric limits — 150/350/200 mg/L BOD₅/COD/TSS for pulp mills and 125/250/125 mg/L for paper mills; pH 6.0–9.0 — define the control objectives (MenLH Decree 51/1995). With wastewater volumes at 20–100 m³ per ton of pulp (Journal of Environmental Management), online visibility becomes non‑negotiable.
Primary and secondary steps set the stage for control. Many plants integrate compact waste‑water physical separation ahead of secondary biology to smooth loads before neutralization and aeration.
Online sensor suite and placement
pH and ORP (oxidation–reduction potential) are first‑line indicators. Submersion pH probes with automatic cleaning have proven resilient in fouling wastes, reducing downtime (Yokogawa). In most setups, the transmitter directly drives a dosing pump to add acid or lime when pH drifts (ProMinent).
ORP trends help operators infer process status — whether organics are being oxidized or whether nitrification/denitrification is proceeding — with a rising ORP often signaling sufficient aeration (YSI).
Dissolved oxygen (DO) sensors in aerobic basins protect removal efficiency and sludge settling. When DO falls below target, SCADA (supervisory control and data acquisition) modulates blower speed — commonly holding 2–3 mg/L DO — via PID (proportional–integral–derivative) loops for tight control.
Real‑time turbidity and suspended‑solids measurements catch upsets early. Continuous trending flags clarifier carryover or floc failures, prompting immediate operator action; integrating turbidity into control can even trigger sludge‑waste valves to head off permit excursions (Boqu Instrument). Plants also use turbidity trends operationally: dropping values can justify reclaiming filtrate, while spikes suggest adjusting settling time or flocculant dosing (Boqu Instrument).
For organics, on‑line UV or NIR (near‑infrared) analyzers estimate BOD/COD load. In one pulp‑mill application, an NIR sensor achieved ≈150 mg/L COD RMS error — about 10% of the span — giving fast feedback for recirculation or nutrient‑feed adjustments (SCIRP). Many mills also run TOC (total organic carbon) analyzers. Emerging microbial BOD biosensors can detect low BOD down to ~5 mg/L in ~20–30 minutes, useful for final‑effluent checks, though they remain largely research‑stage (ResearchGate).
Nutrient probes (ammonia or nitrate) underpin biological stability. Many pulp effluents require nitrogen and phosphorus addition; an ammonia sensor on the aeration basin can feed a controller to trim addition rates or flag breakthrough. Plants commonly tie this loop to a metered nutrient feed.
Conductivity meters track ionic strength — a rise can indicate a process leak or salt‑laden byproduct release. Flow measurement on influent, effluent, and recycle streams is fundamental because many permits cap both concentration and mass; continuous flow allows real‑time pollutant‑load calculation and alarm totalizers.
Vendors package these instruments as connected platforms. Yokogawa has documented how ultrasonic‑cleaning pH probes cut fouling downtime (Yokogawa). ABB argues that online water monitoring can be layered onto any control system to reduce variability and conserve water and energy (ABB; ABB).
Automated control logic and APC

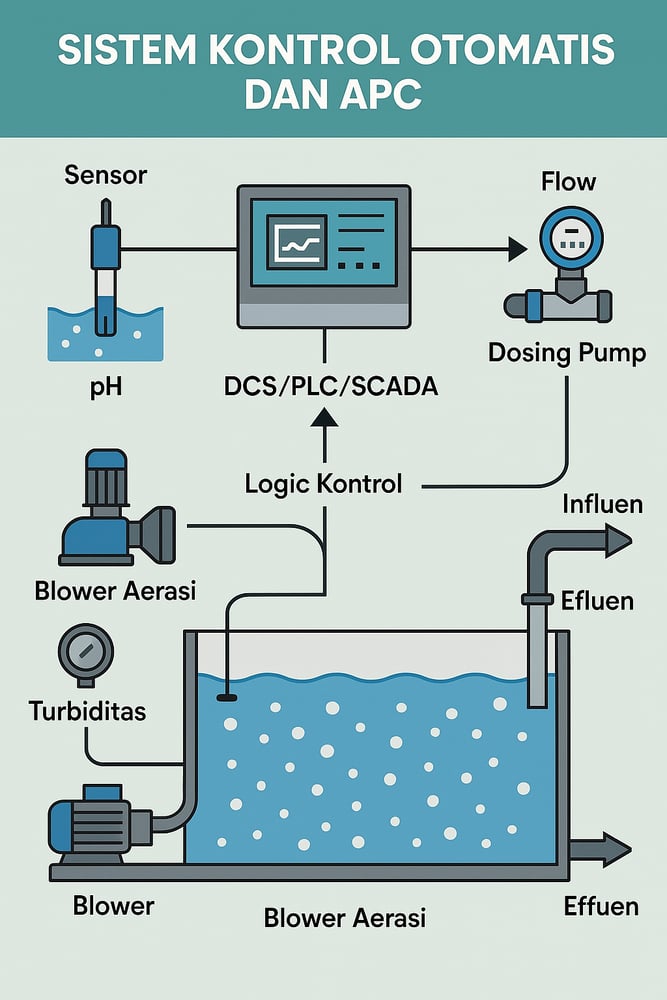

All signals land in a DCS/PLC/SCADA (distributed control system/programmable logic controller). A pH transmitter can directly command a dosing pump: when pH drifts, the pump adds acid or lime to restore neutrality (ProMinent). Turbidity switches can actuate sludge‑bleed valves, while DO controllers modulate blowers.
In batch or biofilm systems, the controller times aeration and cycles: sequencing batch reactors (SBR) and moving bed bioreactors (MBBR) depend on precise on/off and phase control for optimal removal. Real‑time dashboards — like Hach’s Claros or other SCADA — provide instant visibility and historical trends for operators.
Advanced control is spreading. Model‑predictive or adaptive PID strategies, including predictive DO control, have demonstrated tighter regulation than manual tuning. ABB’s Ability Smart Wastewater platform applies APC (advanced process control) to cut water use and stabilize operations over existing automation systems (ABB; ABB). These “digital twin” approaches can optimize black‑liquor concentration, condensate reuse, and other loops to minimize effluent.
Sampling and lab QA program
Online sensors do not eliminate the lab. Regulators typically require periodic BOD₅, COD, TSS, and nutrient tests even with continuous monitoring. Plants collect grab or composite samples (often daily or weekly, per permit) and send them to accredited labs. This hard data documents compliance, validates and calibrates online instruments, and can catch analytes sensors miss (e.g., specific toxins or heavy metals) (ISSPL Lab).
Best practice is to sample raw influent, after each major process step, and final effluent from designated points on a set schedule. QA (quality assurance) — field duplicates, blanks, and certified methods — underpins credibility. If lab BOD trends diverge from sensor estimates, calibration offsets are applied; lab‑versus‑sensor charts also reveal drift and trigger maintenance. In effect, the sampling program bookends the treatment process: sensors handle fast control, while lab results confirm performance and legal compliance (ISSPL Lab).
Performance metrics and reuse outcomes
Continuous data reduces excursions. Real‑time turbidity monitoring has cut quality incidents by flagging anomalies early (Boqu Instrument). Holding stable DO in aeration commonly boosts average removal; well‑tuned systems often achieve >80–90% BOD removal, far below limits. Poor control, by contrast, can drive monthly permit violations.
Integrating on‑line COD/TOC with aeration control avoids chemical overfeed and saves costs, and APC has been reported to cut water and energy use by double‑digit percentages (ABB; ABB).
Tighter monitoring also enables reuse. Indonesia’s pulp mills face pressure to recycle more water; managers report that with consistent controls, additional shower or wash water can be reclaimed, lowering freshwater intake (US data likewise shows “considerable” internal reuse) (US EPA). Optimizing reuse loops under SCADA helps ensure recharge rates meet permit standards.
The broader goal is consistent compliance and recognition. In Indonesia, mills aim for PROPER “Green” status — not just meeting but exceeding regulations via innovation (Antara News). Real‑time sensors plus automation provide the evidence that a plant is under control.
Data‑driven operations in a water‑intensive sector
The pulp and paper industry uses about 17,000 gallons of water per ton of paper (Hach) and accounts for ~12% of global industrial freshwater demand (ABB). Against that backdrop, the formula for reliable compliance is clear: a suite of online sensors (pH, DO, turbidity, COD/TOC, nutrients, conductivity, and flow) tied to automated PLC/SCADA control, reinforced by disciplined sampling.
Done well, the result is high removal efficiency and near‑zero permit excursions — with data to prove it (ABB; Boqu Instrument).
