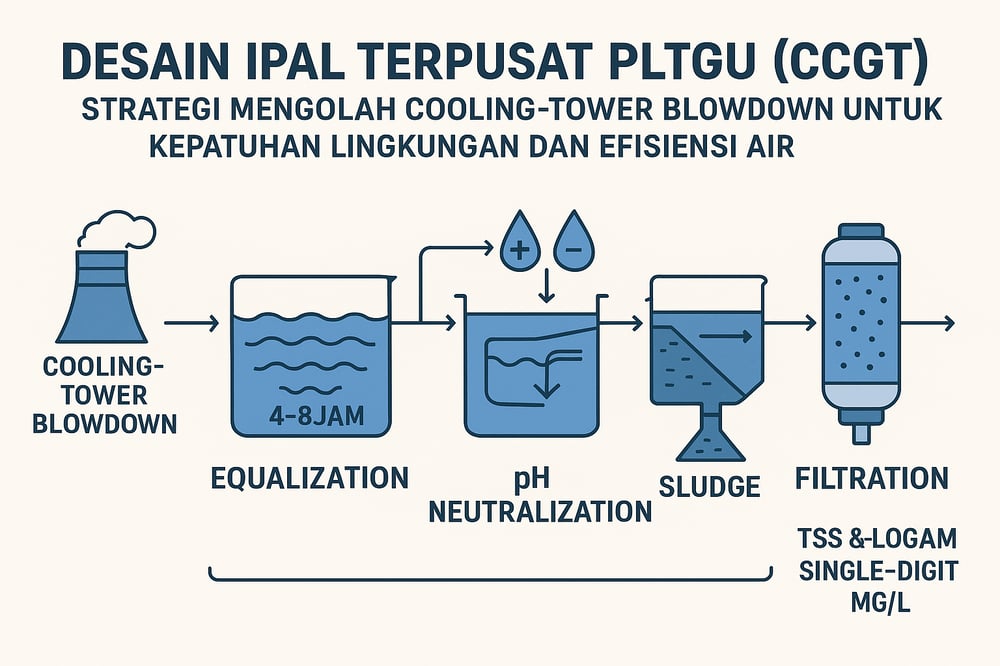

Cooling‑tower blowdown dominates combined‑cycle wastewater, but a tight sequence—equalize, neutralize, clarify, filter—delivers clear, compliant effluent. Here’s the centralized plant design, backed by field data and regulatory targets.
Combined‑cycle gas turbine (CCGT) sites juggle multiple small streams with big contaminants. The heaviest hitter is cooling‑tower blowdown, which “by far” accounts for the majority of spent water (Power Engineering). Cycles‑of‑concentration (a measure of how much salts are allowed to build up before bleed‑off) illustrate the trade: at 3× concentration, blowdown was ~600 gpm—gpm means gallons per minute—while at 6× it fell to ~250 gpm (Power Engineering).
Typical constituents include alkali from amines/ammonia, hardness (calcium/magnesium), silica, trace metals (iron, copper, zinc), and any residual biocides or treatment chemicals. For heat recovery steam generator (HRSG) blowdown—HRSG captures turbine exhaust heat to make steam—and cooling‑tower blowdown, effluent must meet strict limits. Indonesian guidelines (Permen LH 08/2009) set pH 6–9 and copper ≤1 mg/L with iron ≤3 mg/L for boiler blowdown (source). Cooling‑tower blowdown must meet pH 6–9, free chlorine (Cl₂) ≤0.5 mg/L, zinc ≤1 mg/L, and phosphate (PO₄) ≤10 mg/L (source). Other site runoff can be similarly constrained—for example, coal yard runoff at pH 6–9, TSS (total suspended solids) ≤200 mg/L, iron ≤5 mg/L, manganese ≤2 mg/L (source). In practice the treatment train must neutralize pH and remove suspended/precipitated solids and trace metals to single‑digit mg/L levels to ensure compliance.
Influent equalization and flow management
The first unit operation is flow equalization to buffer variability across drains and batch events. An upstream equalization basin holding several hours of average flow—commonly 4–8 hours—dampens fluctuations in both flow and mass loading, improving downstream performance and sometimes enabling smaller clarifiers or filters (EPA). Guidance repeatedly emphasizes that this step “dampens the fluctuations in flows and mass loadings” (EPA).
Equalization also homogenizes temperature and chemistry—mixing hot HRSG blowdown with cooler condensate drains to get conditions right for pH adjustment. In one plant study, all boiler blowdown was first pumped to a neutralizing basin at ~50 °C, aerated, and pH‑adjusted (case study). Bulk storage improves operator safety by buffering accidental releases and creates volume for screening out debris; plants commonly add an upstream automatic screen for continuous debris removal as part of wastewater ancillaries.
pH neutralization with aeration and control
Blowdown frequently emerges highly alkaline (from amines/ammonia) or acidic (after chemical cleaning). Regulations require pH 6–9 in both boiler and cooling‑tower blowdown (source; source). The centralized plant therefore uses a neutralization/tetrapak basin with automated dosing of acid (e.g., H₂SO₄ or HCl) or base (e.g., NaOH or lime) to target pH ~7–8, under vigorous mixing. Metering is typically handled by a dosing pump to maintain tight control.
An aerated neutralization tank is effective: oxidation in air strips volatile components (e.g., driving ammonia toward N₂) and equilibrates dissolved CO₂, while agitation prevents pH hotspots. In Indonesia, one coal plant pumped boiler blowdown into an aerated neutralization basin and injected both acid and caustic under agitation to achieve near‑neutral conditions before further treatment (case study). Measured outcomes reported include adjusting pH from ~12 to ~8 in the neutralization stage, with chemical use on the order of ~5–10 kg NaOH per ton of blowdown, followed by a 30–60 minute hold for stabilization.
Chemical precipitation, coagulation, and flocculation
After neutralization, the train removes hardness and metals through precipitation and coagulation. Lime (Ca(OH)₂) or sodium carbonate precipitate calcium/magnesium hardness and raise pH into the 9–10 range to scavenge heavy metals as hydroxides. Ferric or ferrous coagulants—commonly FeCl₃ or FeSO₄—oxidize soluble ferrous iron and create Fe(OH)₃ flocs that sweep contaminants. Coagulants neutralize particle charge and enable agglomeration (Water & Wastewater; Water & Wastewater). Typical FeCl₃ doses are on the order of 10–30 mg/L, with bench tests often showing >90% turbidity and metal removal at these levels.
Where cooling‑water biocide or ammonia is present, a low dose of oxidant (sodium hypochlorite or peroxide) may be co‑metered to destroy ammonia (converting to N₂) and aid metal precipitation. Plants pair coagulants with high‑molecular‑weight polymers; anionic acrylamide flocculants grow floc size after a coagulant hit. In energy plant blowdown, programs can remove >90% of visible turbidity and ≥70–90% of metals (Cu, Zn, Ni) in a single clarifier pass (ResearchGate). For context, a 2008 municipal study found 23–47% removal of Cr, Cu, and Zn in primary treatment with enhanced coagulation (ResearchGate).
Design details matter: a rapid‑mix tank (seconds of detention) is followed by a flocculation basin (10–20 minutes of gentle mixing). Coagulant feed is pH‑dependent and often controlled against in‑line pH. Expected chemical use can be on the order of 50–200 kg/day of lime or 20–100 kg of FeCl₃ per 1 MW of steam capacity, depending on water chemistry. Treating 1,000 m³/d of typical blowdown produces ~10–20 m³/d of settled sludge at 5–10% solids—about ~100–200 kg/d of removed solids—so allowances for mixing gear, tanks, and other ancillaries are part of the base design.
Clarification options and lamella settling
Flocculated water enters a gravity settler or a flotation unit. Many plants adopt a compact lamella settler—inclined plates boost area and reduce footprint—or select a DAF system where oils or fine flocs suggest flotation. By design, clarifiers remove >90% of residual suspended solids; clarified effluent turbidity is typically <50 NTU (Nephelometric Turbidity Units) and often <10 NTU when well operated.
In one thermal plant’s WWTP, floc‑laden blowdown flowed to a lamella sedimentation tank; large flocs accumulated on plates and were scraped to a sludge pump, with clarified overflow exiting to filters (case study). After clarification, TSS is typically reduced to <30–50 mg/L. Clarifiers generally recover 80–95% of TSS; in pilot tests, coagulant plus clarification commonly brings TSS down from 100–200 mg/L (post‑neutralization) to ~5–20 mg/L, with heavy metals (Fe, Cu, Zn) often <0.5 mg/L in clarified effluent. For gravity service, a conventional clarifier remains a plant‑floor standard.
Filtration and final polishing
Clarifier overflow is polished through granular media. A dual‑media bed using sand/silica captures 5–10 µm particles, and adding anthracite media deepens the profile to improve run length. Some layouts use automatic backwash filters rated 20–50 µm; fine solids control is also common with a downstream cartridge filter where needed.
This step typically drives turbidity into single‑digit NTU and knocks down residual colloidal metals. Post‑filter, any slight pH trim is done before discharge or reuse. To withstand plant duty and higher pressures, operators often select steel filter housings for the media or cartridge stages. In a power‑plant WWTP case study, media filters after coagulation achieved final TSS of ~2–5 mg/L and turbidity <5 NTU; filtered effluent met all regulatory limits (pH ≈7.5, Cu/Fe/Zn <0.2 mg/L) and was reused onsite.
Sludge thickening and dewatering
Settled solids from clarifiers and backwash waste from filters are handled as sludge. Plants thicken to ~5% solids in a sludge clarifier or dedicated thickener, then dewater by filter press or centrifuge. At the Labuhan Angin site, floc sludge was thickened with scrapers and pressed into filter‑cakes (case study); decant water returned to the headworks, and dried cake was hauled offsite or used in construction.
Quantitatively, a plant might produce 30–200 kg/h of sludge solids, depending on blowdown volume and influent quality. Treating 200 m³/h at 150 mg/L TSS yields roughly ~30 kg/h of solids; at 20–25% cake solids, that is ~120–150 kg/h of wet cake. The design accommodates these volumes and ensures metal levels in cake meet disposal criteria or, if needed, are managed as hazardous waste.
Compliance outcomes and reuse trajectory
Staging equalization (hours of retention), pH neutralization (~7 target), chemical precipitation, solids separation, and filtration consistently delivers >90% removal of TSS and most metals. One combined‑cycle plant reported treated effluent with TSS <10 mg/L and pH ~7.5—well below Indonesian limits of TSS ≤200 mg/L and pH 6–9 (source) and in line with EPA guidance cited earlier.
Industry direction is clear: policies such as California’s push for zero‑liquid‑discharge are pressuring plants to recycle or fully treat blowdown (Power Engineering). For operators, the centralized equalize‑neutralize‑clarify‑filter design not only ensures compliance but also reduces freshwater intake and environmental impact by enabling clean discharge or on‑site reuse.
