Clog‑Proof Irrigation: Multi‑Stage Filtration Meets Real‑Time Sensors

As agriculture leans on variable‑quality water, a multi‑barrier filter train plus live turbidity and pH data is emerging as the reliable way to keep emitters clear and crops on schedule.

Industry: Agriculture | Process: Drip_&_Sprinkler_Irrigation_Systems

In Indonesia, one of the world’s top‑5 rice producers, agriculture uses roughly 80% of national freshwater, magnifying the impact of any water‑quality issues on yield and infrastructure (blogs.worldbank.org). Drip and sprinkler systems are unforgiving: even small solids or precipitates can clog emitters and nozzles.

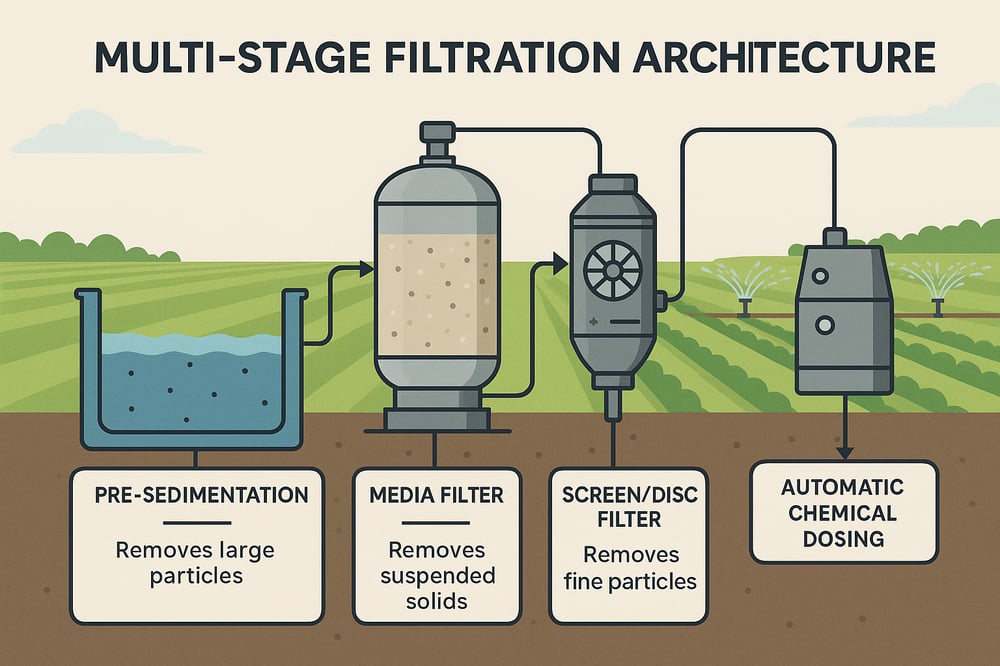

The design answer is multi‑stage. A coarse sedimentation step, a depth media filter, and a fine screen or disc filter each “polish” the water and protect downstream components. Field surveys show that systems with settling ponds + media + disc filters can run for months with minimal maintenance (researchgate.net).

Primary sediment control (settling/grit stage)

A settling or pre‑treatment pond provides primary removal of large sediments and organic debris, often taking out 30–70% of incoming turbidity depending on design and detention time. Horizontal “roughing” filters (shallow gravel trays) typically achieve roughly 40–60% turbidity and particle removal before further filtration (researchgate.net).

Reducing the solids load up front extends filter run time; in practice, treated backwash and overflow from ponds are often re‑used on‑farm or directed to karst ponds for irrigation recharge (agriculture.vic.gov.au). Where space is tight, compact sedimentation hardware such as lamella modules is commonly applied; for example, engineered plate packs like a lamella settler reduce footprint without changing the underlying physics of settling.

Depth filtration performance (media beds)

After settling, water moves through granular media filters that provide three‑dimensional capture of fine silt and colloids (see Figure 2). Media filters “give the highest degree of filtration and are most popular where dirty water is used” (agriculture.vic.gov.au). A well‑designed sand/granite bed can remove up to 60–85% of remaining turbidity in one pass (depending on media size and depth). Pilot studies with multiple layers reported continuous runs exceeding 80 days while removing >99% of bacteria and the bulk of suspended solids; in one case the multistage system achieved >99% E. coli removal without coagulants (researchgate.net).

In drip irrigation, media beds typically remove particles down to 50–150 μm (Table 1), with smaller media sizes yielding finer polishing (agriculture.vic.gov.au). Backwashing is mandatory: commercial designs reverse flow through the bed, with typical clean‑bed differential pressure triggers on the order of 30–70 kPa and automatic flushing before ~100 kPa in clogged filters (agriculture.vic.gov.au). Gravity‑fed media filters also exist but are limited to very low‑flow uses. Many growers specify silica media such as a sand media bed to match the target cut size.

Final polishing stage (disc/screen filters)

As a final safeguard, screen or disc filters trap remaining fine particles (down to ~100 μm or below). Screen filters provide 2‑D surface filtration; disc filters use stacked, grooved discs to create a pseudo‑3‑D depth effect (agriculture.vic.gov.au). Advantages include low cost and low head loss (agriculture.vic.gov.au), but dirt‑holding capacity is lower than media beds.

In practice, disc units follow media as a secondary filter: they may trim turbidity by roughly 5–15% in tested effluents (researchgate.net) and primarily serve as a backstop against larger particles. Disc units are typically self‑cleaning: internal jets or pressure pulses separate the discs during backwash. Pressure‑differential sensors (e.g., using flow meters or manometers) commonly trigger an automatic flush when ΔP exceeds ~50–70 kPa for disc/screen units (versus ~100 kPa for media) (agriculture.vic.gov.au). Where automation is needed, growers often select an automatic screen filter for the polishing stage.

Operating pressure and backwash scheduling

Timed backwash is also used; under heavy silt loads in hot inland climates, screen/disc filters might flush 2–3× per hour (agriculture.vic.gov.au). In one study on treated wastewater, screen and disc filters backwashed only when head loss reached 50 kPa (researchgate.net).

Higher operating pressure can improve removal: raising filter pressure from 200 to 400 kPa increased turbidity removal from a few percent to ~18% in tests by Duran‑Ros et al. (researchgate.net). For disc/screen filters, ~50 μm porosity delivered ~10.9% turbidity removal versus ~5.5% at 130 μm in the same study (researchgate.net).

Chemical aid and disinfection options

Where organic or dissolved residues are present (e.g., iron oxides, algae, microorganisms), chemical pretreatment with a coagulant or flocculant can enhance sedimentation. Farms frequently dose aluminum‑based coagulants in the pond stage; a common choice is polyaluminum chloride, available as high‑purity PAC, to boost particle aggregation without changing the filtration train’s fundamentals.

When targeting pathogens or algal blooms, a small chlorine or UV treatment after filtration is often added as a safety margin. Many installations favor compact, low‑operating‑cost UV systems such as a UV disinfection unit; where chlorine residuals must be maintained, a chlorination unit is paired with residual monitoring.

Real‑time sensing and automation (PLC/SCADA)

Modern control ties the train together. Online turbidity probes, pH meters, and conductivity (EC, electrical conductivity) sensors feed a PLC (programmable logic controller) or SCADA (supervisory control and data acquisition) that automates cleaning and dosing. Inline turbidity meters (nephelometers or optical backscatter sensors) detect sediment spikes; one IoT demo used an LDR/LED turbidity sensor to auto‑start filtration once suspended solids crossed a threshold (researchgate.net).

In parallel, differential‑pressure sensors across filters trigger backwash on demand—often at 50–70 kPa for disc/screen and before ~100 kPa for media (agriculture.vic.gov.au). Many systems also schedule periodic time‑flushes as backup (agriculture.vic.gov.au).

pH control and anti‑scale dosing

Real‑time pH monitoring (0–14 pH sensors) upstream of emitters or in mixing tanks enables precise acid/base control (pmc.ncbi.nlm.nih.gov). Keeping irrigation water just below pH ≈ 7.0 prevents calcium carbonate precipitation that clogs drippers (extension.uga.edu).

In practice, a small continuous dose of phosphoric or sulfuric acid is often injected to hold pH just under 7.0; a periodic stronger dose (pH 4–5 for ~1 hour) will even dissolve existing scale (extension.uga.edu) (extension.uga.edu). Sensor feedback starts and stops the acid pump so chemicals are used only as needed; dosing equipment such as a metering unit—e.g., a dosing pump—is tied to the pH signal. If reclaimed water with pathogens is used, an ORP (oxidation‑reduction potential) or residual chlorine sensor enables feedback control of a chlorination unit.

Sensor maintenance and data logging

Sensors drift and foul, so regular calibration and cleaning schedules are mandatory; the Taiwanese irrigation system example stresses “regular calibration and maintenance” and even automatic on‑board probe cleaning (pmc.ncbi.nlm.nih.gov). Continuous, time‑stamped logging of turbidity, pH, EC, pressures, and flows supports trend analysis and alarms.

Thresholds can be set to alert operators—e.g., an EC value above 500 μS/cm triggered an alarm in one automated system, which also flagged when EC was lower than 300 μS/cm (pmc.ncbi.nlm.nih.gov).

Monitoring plan and decision rules

ChatGPT Image Oct 1, 2025, 11_21_29 AM

Source assessment starts with cataloging wells, reservoirs, rivers, and reclaimed effluent, plus seasonal variations. Install sampling points at raw inflows, after each treatment stage, and along main laterals—for example, before the sediment pond, after media filters, and at field manifolds.

Parameters and frequency combine continuous sensors with routine grab samples. At minimum, continuously monitor pH and turbidity (or head‑loss differential) upstream of filters while logging pump pressures and flows. Conduct weekly TSS, EC/salinity, nitrate/SAR where brackish water is used, and residual chlorine if applied. Heavy metals, pathogens (total coliform/E. coli if using effluent), and pesticides/herbicides fit monthly or quarterly schedules. Perform event‑based sampling after heavy rains or upstream discharges. These frequencies reflect practical coverage where sensors do not directly measure every parameter (researchgate.net).

Data management builds baselines and control limits. If EC and pH are stable (say, EC 1.2 mS/cm, pH 7.2), a sudden turbidity jump or ORP change flags intervention. Dashboards plot sensor feeds; alerts notify staff by SMS or email when thresholds are exceeded. Keep a log of filter backwash events and chemical doses to correlate with water data.

Maintenance and QA include monthly pH/turbidity calibration (or per manufacturer), weekly probe cleaning, verifying pressure gauges, and servicing pumps. For lab samples, use accredited methods and respect holding times (e.g., “allowable time before analysis” guidance in Table 1 of BASOUR et al., FAO 2022) (researchgate.net).

Decision rules spell out actions: if inlet turbidity > 15 NTU for more than 10 minutes, initiate backwash and add flocculant in the pond; if pH drifts above 8.0, add acid to bring it back to ~6.8–7.0. If conductivity exceeds an agronomic limit (e.g., EC > 3 dS/m), irrigation is curtailed until dilution or blending; all rules are documented in the water management plan (researchgate.net).

Regulatory and reuse guidance

In Indonesia, operators heed general water and wastewater standards (e.g., Permen LH/Ministry of Environment regulations) alongside FAO/WHO irrigation guidelines. For wastewater reuse, WHO recommends fecal coliform < 1000 CFU/100 mL for unrestricted irrigation—targets that protect crops, soil, and equipment.

Performance under variable water quality

Multi‑barrier filtration plus sensor automation stabilizes output as raw water fluctuates. If heavy rainfall shifts turbidity from 5 NTU to 50 NTU, the settling pond and media filters capture most solids while a turbidity or ΔP signal triggers extra backwash. If irrigation water alkalinity jumps to pH 8.5, the pH sensor starts the acid dose to prevent scale. Over months, monitoring logs show treated water stayed within target ranges and emitter blockages did not occur.

Across pilots and practice, well‑designed multistage filtration and smart sensors consistently deliver lower clogging rates, more efficient water use, and predictable crop performance (researchgate.net) (researchgate.net). Where needed, adding a coagulant ahead of filters (e.g., PAC) and a post‑filter barrier like UV disinfection tightens control without changing the core approach.
