Modern multi‑stage cyclone preheaters and precalciners are rewriting the fuel bill, with lines hitting ~2900 kJ/kg clinker versus ~4300 kJ/kg on legacy dry kilns — as long as “false air” is kept out and cyclone geometry does its job.
In the dry‑process cement world, the heat you save before the rotary kiln is heat you don’t have to buy. Plants that upgraded to 5–6 stage cyclone preheater/calciner lines report fuel cuts of roughly 1.3 GJ per tonne of clinker (≈1300 kJ/kg) (cementequipment.org), and state‑of‑the‑art suspension preheater lines now operate at about ~2900 kJ/kg, compared with ~4300 kJ/kg for legacy dry kilns (mdpi.com).

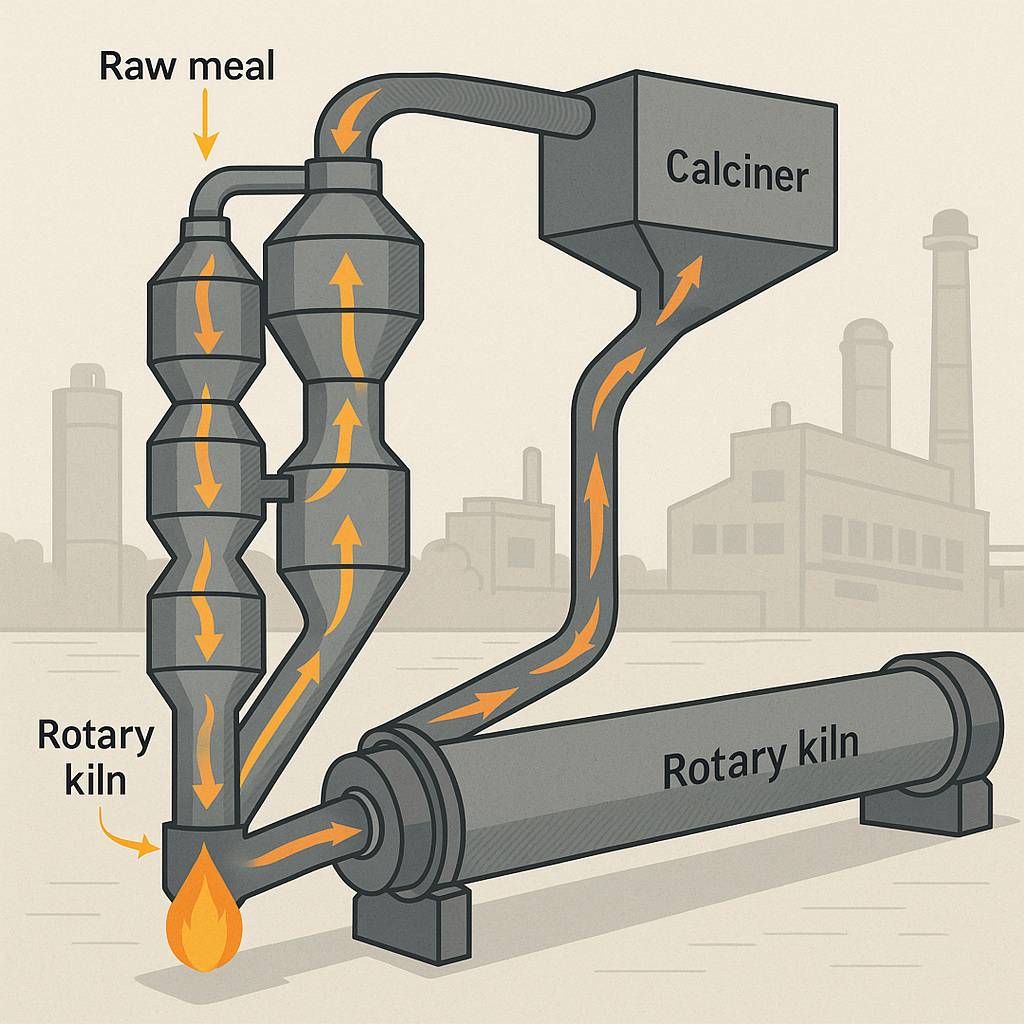

The mechanism is simple physics, executed with precision. Multi‑stage cyclone preheaters (4–6 stages, often in twin strings; “twin strings” are parallel towers) act as gas–solid heat exchangers, lifting the raw meal to roughly ~750–850 °C before burning, with top‑stage exits commonly around ~800 °C (cementl.com, mdpi.com). Every extra stage tightens that gas–meal contact and trims the fuel the kiln must supply later.
Multi‑stage cyclone preheater design
Adding stages, within practical pressure‑drop limits, remains the bluntest tool for heat recovery. Modern 5–6 stage preheaters (often twin‑string) push toward “nearly complete” transfer from 800–850 °C kiln tail gas to the raw meal, homogenizing the mix and slashing the rotary kiln’s thermal duty (mdpi.com).
Design tweaks matter. Adjusting vortex‑finder length and inlet dimensions can lift cyclone collection and heat‑transfer efficiency by ~10–15% with only a minor pressure‑drop penalty (researchgate.net). Low pressure‑drop designs are a recurring best practice (mdpi.com), and “high solid–gas ratio” concepts — fewer cubic meters of air per tonne of meal — carry more meal in hotter gases to decarbonate more completely before kiln entry (mdpi.com). Computational fluid dynamics (CFD) and genetic‑algorithm optimization are now standard practice; one upper‑stage redesign delivered a 13.4% rise in cyclone efficiency with a 2.2% drop in pressure loss (researchgate.net). The payoff shows up in the fuel ledger: advanced preheater/calciner lines consistently reach ~2900 kJ/kg (mdpi.com), versus ~4300 kJ/kg for legacy dry kilns.
False air measurement and sealing
Air infiltration (“false air,” i.e., unwanted cold‑air ingress) cools the preheater stream and forces extra fuel burn (indiancementreview.com, cementl.com). Plants track this via oxygen: a rise of about ~1% O₂ from inlet to outlet is a proxy for roughly ~5% false‑air ingress (cementequipment.org). Guidelines target total false air below ~5% of preheater gas volume (cementequipment.org).
The stakes are big: every 1% of cold‑air leak can cost roughly 1–2% thermal efficiency, and a 10% leak can slash efficiency by about ~10–15% (cementl.com). One coal‑fired preheater with ~31% air leakage saw precipitous gas‑temperature drops and wasted fan power (cementequipment.org).
Sealing fixes are straightforward: multi‑leaf labyrinth or double‑plate seals, well‑fitted expansion joints, and periodic “sniff tests” (oxygen probes or ultrasonic detectors) to locate leaks. A case study from India quantified ~79.2 lakh INR (~US$100,000) annual fuel loss from false air in a single‑string 5‑stage preheater; applying modern sealants paid back in weeks (indiancementreview.com). Smaller plants similarly reported 40–50 lakh INR savings per year by sealing preheater leaks (indiancementreview.com). The bottom line: every percent of airflow saved improves gas–solid heat transfer and trims kiln duty.
Precalciner decarbonation and kiln load
Nearly all modern lines use a separate calciner (a decomposition furnace) inside the preheater loop to carry out most decarbonation (CaCO₃→CaO). Plants commonly fire ∼60–70% of total fuel in the calciner (mdpi.com), effectively shifting the ∼1650 kJ/kg CaCO₃ reaction load (kJ/kg is kilojoules per kilogram) upstream. In practice, that makes the calciner the primary decarbonation reactor and leaves the rotary kiln to focus on final clinker formation.
The numbers bear it out. Directing roughly two‑thirds of combustion to the calciner lowers kiln fuel demand (mdpi.com). One detailed analysis showed that improving the calciner’s CaCO₃ decomposition (φ_DC) from ~30.0% to 30.7% lifted overall line efficiency (φ_QY) from 61.70% to 62.55%, boosted daily clinker output by about ∼3% (5799→5968 t), and cut heat use from 3286.98 to 3252.41 kJ/kg clinker (mdpi.com). In practice, good calciner control — optimal fuel/air staging — can trim tens of kJ per kg of thermal energy consumption.
With multiple burners and optimized tertiary air flow, modern calciners achieve “near‑complete” decarbonation before kiln entry, substantially lightening the kiln’s thermal load. The analysis notes that lines without a precalciner “would need roughly 400–500 J less per kg to split the remaining carbonates” (parenthetical statement as given), while precalciner‑based systems cut clinker heat consumption by hundreds of kJ/kg: advanced preheater/calciner lines burn ∼2900 kJ/kg, whereas older non‑calciner lines needed ∼4300 kJ/kg (cementequipment.org, mdpi.com).
Performance benchmarks and outcomes
The headline metrics are clear: implementing multi‑stage cyclone preheating with a high‑solid‑gas calciner, and rigorously sealing the system, can typically reduce clinker heat consumption by ~10–30% versus older designs (cementl.com, cementequipment.org). Top‑performing lines consistently exceed 2900 kJ/kg.cl, and targeted fixes — such as correcting 5% false‑air — deliver measurable fuel savings and productivity gains (indiancementreview.com, mdpi.com).
