Modern grate coolers are recapturing 70–80% of clinker heat and shaving 0.2–0.3 GJ/t off kiln fuel — with megawatt-scale waste-heat recovery to boot. The trick is airflow: staged, low‑pressure, and recirculated.
In cement, the unglamorous grate cooler is a profit center. These workhorses of the pyro‑process quench ~1400°C clinker (the hot nodules exiting the kiln) into haulable form while recapturing its sensible heat for reuse in the kiln and preheater. A cooler that controls air precisely can lift overall plant efficiency — and cut fuel and CO₂ — because it returns more heat to the process instead of losing it as exhaust.
Today’s designs deploy multi‑paned, reciprocating grates with independent cooling lanes and adjustable slits or injectors; think FLSmidth Cross‑Bar and thyssenkrupp Polytrack. Each lane’s airflow is individually controlled by multiple fans and sluice gates to enable staged cooling (primary, secondary, tertiary air). Contemporary coolers even separate clinker conveying from airflow: voids beneath a static clinker layer protect grates from wear while still passing cooling air (World Cement).
Advanced features — including independent lane movement and “wave grate” bar geometry — drive down pressure drop and, with it, fan power. FLSmidth’s Wave Grate retrofit alone can cut cooler fan energy by ~0.5 kWh per tonne of clinker (FLSmidth). Aeration fans dominate cooler electricity use (World Cement), so low‑resistance flow paths are a design obsession.
Air distribution and heat return

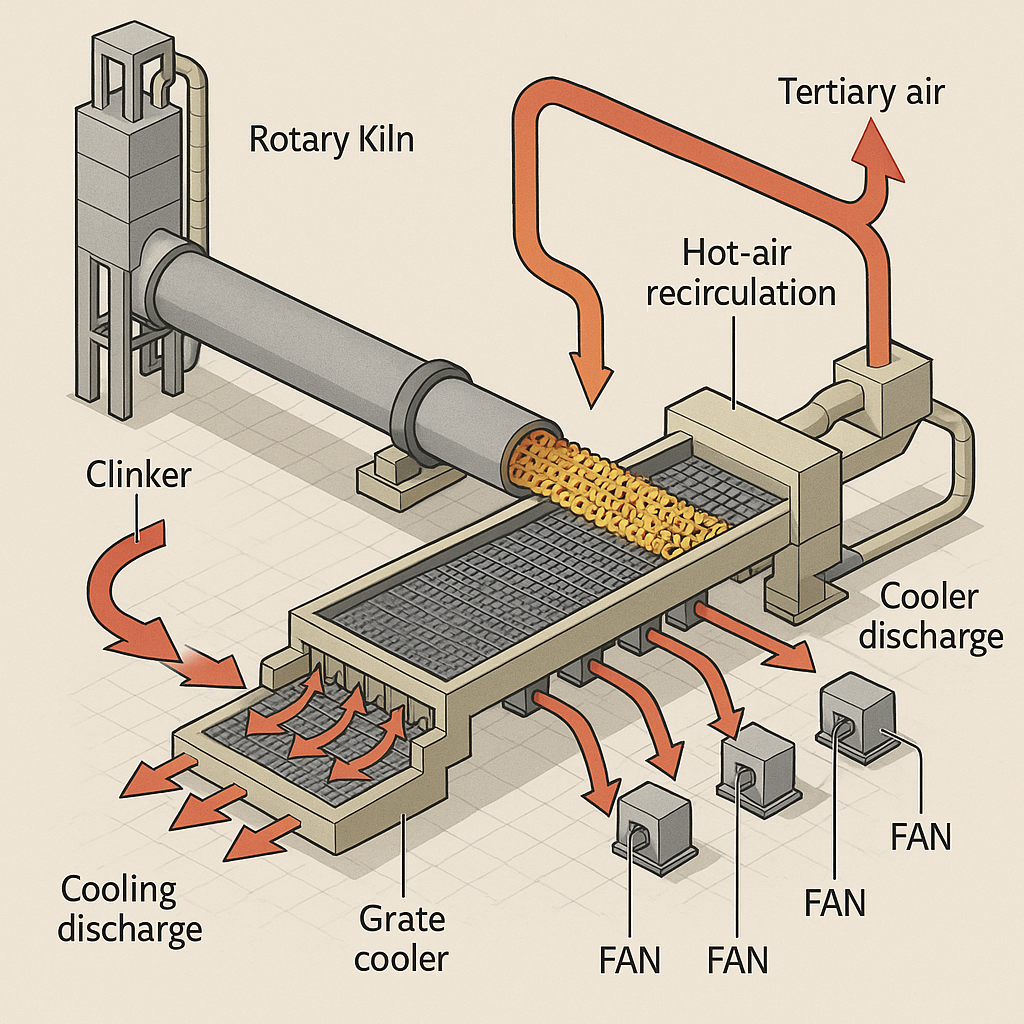

Cooling air enters from below the clinker bed and exits as either secondary air (to the kiln burner) or tertiary air (to the precalciner; the vessel that completes calcination before the kiln). By modulating fan speeds and compartment gates, operators maintain a uniform clinker bed and high exit air temperatures. “Duotherm” recirculation circuits send a portion of hot exhaust back upstream, cutting fresh air demand to ~1.3–1.8 standard m³/kg of clinker (std m³/kg; a volumetric flow at standardized conditions), versus 2–3 m³/kg in older systems (Cement Equipment).
FLSmidth’s Cross‑Bar cooler with hot‑air recirculation routes hot cooler discharge back into the cooler, maximizing heat sent to the preheater boiler and still achieving >70% recuperation (Indian Cement Review). Tight airflow control sustains higher secondary/tertiary air temperatures — often 240–300°C — and reduces “excess” air venting. Instrumentation (clinker/air temperature sensors) and advanced control loops fine‑tune each stage.
Operating targets and efficiency benchmarks
High‑efficiency coolers aim for roughly 4 kWh/t of fan power and ~1.5–2.0 std m³/kg of clinker, versus older coolers at ~6–7 kWh/t and 2.5–3.0 m³/kg. Better flow control directly boosts heat recovery — up to ~74% of clinker enthalpy — and raises cooler efficiency (IIPI/MIIT).
Measured performance matches the spec sheets: modern grate coolers recover roughly 70–80% of clinker heat. Indonesian measurements at PT Semen Baturaja (Persero) found cooler thermal efficiency ~78–79% (ResearchGate). High‑end designs claim even higher — for example, fourth‑generation coolers in China report recuperation rates up to ~74% (IIPI/MIIT).
Fuel cuts and waste‑heat recovery
Each percentage point of cooler efficiency translates into fuel and CO₂ savings. Upgrading a standard grate cooler can trim kiln fuel by roughly 0.2–0.3 GJ/t of clinker (≈5–8% of fuel use) (IIPI/MIIT). One 3000 tpd (tonnes per day) plant saved about 99.4 TJ per year (~3390 tons coal equivalent) after installing a high‑efficiency grate cooler; a 5500 tpd plant saved ~156 TJ (5330 tce) annually (IIPI/MIIT). For a 5000 tpd line, analyses estimate roughly 4,000–5,000 t/year of coal saved (IIPI/MIIT).
These gains come despite a modest rise in fan electricity (typically +3–4 kWh/t), so the net thermal benefit is large (IIPI/MIIT). Cooler upgrades also amplify waste‑heat recovery (WHR): one techno‑economic study showed clinker cooler exhaust at ~244°C supplying ~30.8 MW of recoverable heat — nearly half of a plant’s total WHR potential — with case details at 400 t/h throughput (MDPI; MDPI). Captured via steam or ORC (organic Rankine cycle) plants, this heat can generate megawatts of power or substitute fuel, lowering kiln firing needs.
Where WHR is integrated via steam cycles, plant utilities commonly support operation with routine boiler‑water programs; procurement teams often standardize on boiler chemical packages for dependable performance. Accurate feeds for these utility circuits are typically delivered by dosing pumps to maintain control without overuse.
Retrofit economics and policy pressure
Because clinker cooling sits at the center of the plant heat loop, coolers are prime targets for energy optimization. In China, “fourth‑generation” coolers (with improved flow and seals) lowered clinker heat consumption by ~10–18% versus third‑generation units, while cutting cooler power by ~20% (IIPI/MIIT). These investments routinely pay back in ~1–3 years (IIPI/MIIT; IIPI/MIIT), driven by fuel and CO₂ savings. One Chinese cooler upgrade delivered up to 6% net energy savings and a 70–80% reduction in maintenance cost (IIPI/MIIT).
In Indonesia and across ASEAN, energy benchmark policies are increasing pressure to cut specific energy. Benchmarks typically reflect state‑of‑the‑art efficiencies (often <3000 MJ/t clinker fired), implying high cooler performance is mandatory. Measured cooler efficiencies around 80% (ResearchGate) approach these benchmarks, but older installations can still improve. Adopting advanced airflow control, recirculation, and modular grate designs reclaims more waste heat, lowering specific fuel consumption (e.g., from ~900 kcal/kg clinker down to 820–850 kcal/kg) and trimming greenhouse gas emissions.
Source notes and design takeaways
Industry analyses (e.g., MIIT/IIPI) document fourth‑generation coolers achieving ~74% heat recovery and ~0.27 GJ/t fuel savings (IIPI/MIIT). Indonesian plant measurements confirm ~78–79% cooler thermal efficiency (ResearchGate). World Cement and equipment suppliers note that aeration control and low‑pressure grates yield ~0.5 kWh/t fan savings (World Cement; FLSmidth). Case studies show large‑scale WHR gains: a 400 t/h plant could tap ~30.8 MW from cooler exhaust (MDPI; MDPI). In practice, maintaining high, stable secondary/tertiary air temperatures (often 240–300°C) with low fresh‑air rates (~1.3–1.8 std m³/kg in recirculating designs) is the throughline that lifts recuperation to the 70–80% band and trims fuel consumption by 5–8%.
