Reverse Osmosis (RO) has become one of the most effective and widely used water purification technologies in various industries. RO systems are capable of removing various contaminants from water, including salts, minerals, bacteria, and organic matter. In this article, we will take an in-depth look at the main components that make up a modern RO system, their functions, as well as how they work together to produce high-quality water.
Introduction
Reverse Osmosis is a water purification process that uses pressure to force water through a semipermeable membrane, leaving contaminants behind. This process has been revolutionary in water treatment, enabling the production of drinking water from water sources previously considered unfit, such as seawater or brackish water. An effective RO system consists of several key components that work in harmony. Each component has an important role to play in ensuring optimal performance of the system as a whole. Let's explore these components in detail. Before we dive into the specific components, it is important to understand that RO system designs may vary depending on the specific application and needs. However, the basic principles and key components generally remain consistent across different implementations. In the water treatment industry, RO systems have become the go-to solution for a variety of needs, ranging from seawater desalination for drinking water supply to ultrapure water production for the pharmaceutical and electronics industries. The success of this technology lies in its ability to remove contaminants at the molecular level, providing results that are difficult to achieve with conventional filtration methods. As the technology evolves, the components of RO systems also continue to innovate. Manufacturers such as FilmTec and Toray continue to develop more efficient and durable RO membranes, while companies such as Energy Recovery Inc focus on improving system energy efficiency through innovations in pressure recovery.Main Components of Reverse Osmosis Systems

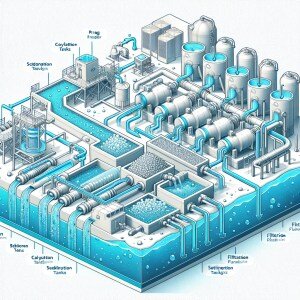

1. Pretreatment System
The pretreatment system is the first line of defense in an RO system. Its main purpose is to remove large particles, sediment, and other contaminants that can damage or reduce the efficiency of the RO membranes. Common components in a pretreatment system include:
- Sand Filters: Typically use media such as sand or anthracite to remove suspended particles.
- Carbon Filters: Removes chlorine and organic matter that can damage RO membranes.
- Water Softeners: Reduce water hardness by removing calcium and magnesium ions.
- Anti-scalant Injection:Prevents scale formation on the membrane.
2. High-Pressure Pump
The high pressure pump is the heart of the RO system. Its function is to increase the feed water pressure to the level required to overcome the osmotic pressure and force the water through the RO membranes. Some key points about high pressure pumps:
- Typically produces pressures between 200-1000 psi, depending on the application.
- Pump efficiency is critical to minimize system energy consumption.
- Materials of construction must be corrosion-resistant and compatible with feed water.
3. Reverse Osmosis Membranes (RO Membranes)
The RO membrane is a key component in the system, responsible for the actual separation of contaminants from the water. Important characteristics of RO membranes include:
- Made of semipermeable material, typically thin-film composite (TFC).
- Have microscopic pores that allow water molecules to pass through but retain larger contaminants.
- Configured in a spiral-wound shape to maximize surface area in a compact space.
- Available in various sizes and specifications for a wide range of applications.

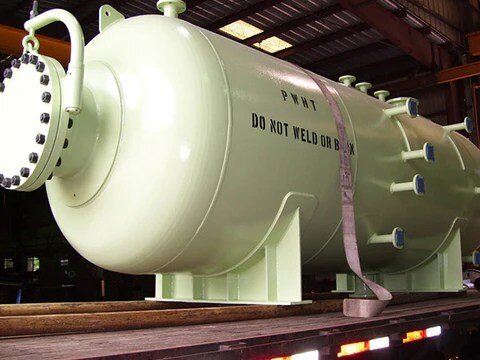

4. Pressure Vessels
.
Pressure vessels are containers that hold RO membranes. They must be able to withstand the high pressures used in the RO process. The main characteristics of pressure vessels include:
- Typically made of fiberglass reinforced plastic (FRP) or stainless steel.
- Designed to allow efficient water flow through the membrane.
- Available in different sizes to accommodate different numbers of membranes.

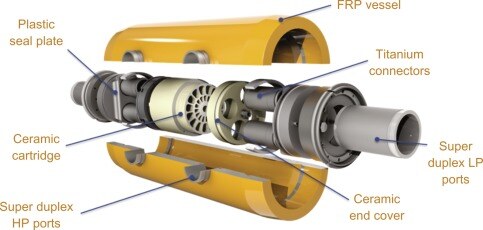

5. Energy Recovery Devices (ERD)
.
Energy recovery devices are a critical component in large-scale RO systems, especially for seawater desalination applications. ERDs utilize the energy from the high-pressure concentrate stream to help drive the high-pressure pump, thereby reducing overall energy consumption. Types of ERDs include:
- Pressure Exchangers
- Turbochargers
- Pelton Wheels
6. Post-treatment System
A post-treatment system is required to adjust the permeate water quality to match the desired specifications. Common components in a post-treatment system include:
- PH Adjustment: Adding a base to increase the pH of water that is typically slightly acidic after the RO process.
- Remineralization: Adds certain minerals back to the water for taste and mineral balance.
- Remineralization.
- Disinfection: Adding disinfectants such as chlorine or UV to prevent microbial growth.
- Disinfection.
7. Control and Monitoring Systems
- Programmable Logic Controllers (PLCs): Automate system operations.
- Sensors: Monitor critical parameters such as pressure, flow, and water quality.
- Sensors.
- Human-Machine Interface (HMI): Enables operators to monitor and control the system.
- Human-Machine Interface (HMI).
- Data Logging and Reporting: Records operational data for analysis and reporting.
- Data Logging and Reporting. Advanced control and monitoring systems such as BetAqua's Sentinel WT can significantly improve operational efficiency and ease preventive maintenance.
System Integration and Optimization
While understanding each individual component is important, the key to an effective RO system lies in the proper integration and optimization of all these components. Some key factors in system integration include:- System Design:Ensuring that all components are properly selected and sized for the specific application.
- Energy Efficiency:Optimizing energy usage through proper component selection and use of ERDs.
- Operational Flexibility: Designing systems that can adapt to changing feedwater conditions or production needs.
- Preventive Maintenance:Implement a comprehensive maintenance program to ensure optimal long-term performance.
Challenges and Innovations in RO Technology
While RO technology has proven to be highly effective, there are still some challenges facing the industry:- Energy Consumption: Although there have been significant improvements in energy efficiency, RO is still an energy-intensive process.
- Membrane Fouling: Accumulation of contaminants on the membrane surface can reduce membrane efficiency and lifespan.
- Concentrate Discharge:Management of the concentrate stream produced by the RO system can be an environmental challenge.
- Capital Costs: The initial investment for an RO system can be quite high, especially for large-scale applications.
- Membrane Development:New membranes with higher permeability and better fouling resistance.
- Advanced ERD Technology:More efficient energy recovery devices to reduce energy consumption.
- Smart Control System:Use of artificial intelligence and machine learning for real-time operation optimization.
- New Pre-treatment Technology: Innovative methods to reduce fouling and increase membrane life.
Conclusion
Reverse Osmosis systems have become a key technology in modern water treatment, enabling the production of high quality water from a variety of sources. The success of an RO system relies on the proper integration of various components, from pre-treatment to post-treatment, with the RO membrane at the heart of the process. Understanding the function and role of each component is critical for effective RO system design, operation and maintenance. While challenges such as energy consumption and membrane fouling remain, continuous innovations in membrane technology, energy recovery, and system controls continue to improve the efficiency and effectiveness of RO systems. With increasing pressure on global water resources and the need for high-quality water in various industries, the role of RO systems is expected to grow in importance in the future. Continued technological developments and system optimization will play a key role in ensuring that RO remains an effective and sustainable solution to water treatment needs around the world.Questions and Answers
Q1: What are the main differences between RO membranes for brackish water (BWRO) and seawater (SWRO)?
A1: The main difference between BWRO and SWRO membranes lies in their ability to withstand salt and the required operating pressure. SWRO membranes are designed to withstand much higher salt levels and operate at higher pressures (typically 800-1200 psi) compared to BWRO membranes (typically 200-400 psi). SWRO membranes also have a denser structure to prevent salt penetration more effectively.Q2: How can energy recovery systems (ERDs) improve the efficiency of RO systems?
A2: Energy recovery systems, such as pressure exchangers, utilize the high pressure energy from the concentrate stream to help drive the high pressure pump. This can reduce RO system energy consumption by up to 60% in seawater desalination applications. ERDs transfer energy from the concentrate stream to the feed stream, reducing the load on the high pressure pump and significantly improving the overall energy efficiency of the system.
Q3: What is the role of anti-scalant in an RO system and how does it work?
A3: Anti-scalants are chemicals added to the feed water during pre-treatment to prevent the formation of mineral scale on the RO membrane surface. They work by interfering with the crystallization process of minerals such as calcium carbonate and calcium sulfate. Anti-scalants form a microscopic layer around mineral ions, preventing them from combining and forming scale crystals. This helps maintain membrane performance, reduce cleaning requirements, and extend membrane life.References
