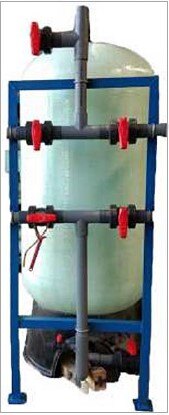

Manual Fiberglass Filter

MFF-844 to MFF-7979
0.3 - 126.4 m3 per hour

In operation since 1985, our BetaQua media filters are well known among consultants for their reliability and durability. Comes in manual and automatic mode of operation, these filters are in use in a large number of commercial and industrial Installations in Indonesia where quality and reliability come first. These filters are designed to be easy to use and straight forward to control.

Applications:

• Suspended Solids/Slit Removal
• Organic/Chlorine Removal
• Iron/Manganese removal
• Softening
• Demineralizing

Premium Features:

Demand based regeneration/backwash with flow indicator

Configuration:

• Single systems up to 126.4 m3/hour
• Duplex alternating up to 126.4 m3 /hour
• Parallel alternating with n-1 x 126.4 m3/hour

Operating Parameter:

8-3611 : 10 bar max operating pressure
42"-7911 : 6 bar max operating pressure

Materials of Construction:

• Plastic Skirt/tripod, Polyethylene inner lining
• Valve body material : Noryl or PVC

Instrumentation:

• Inlet Bourdon Pressure Gauge
• Outlet Bourdon Pressure Gauge

Standard Features:

• Polyglass and Fiber vessels from Pentair or equal
• Manual backwash operation
• Time based regeneration/backwash
• Distribution strainer from l<leemeier
(Germany) or equal
• PVC AW for frontal pipin

Options :

No hard water/unfiltered water bypass
Demand initiated backwash/regeneration based on pressure/conductivity
Pressure transmitters 4-20mA
Remote operation
Manhole (special order)
Mild Steel or Stainless Steel Skid
Conductivity measurement (for demineralizers), transmitter and/or alarm

Operating Parameters:

• Sedimentation Anthracite, Sand, Zeosand, Multimedia
• Activated Carbon Organic / Chlorine Removal

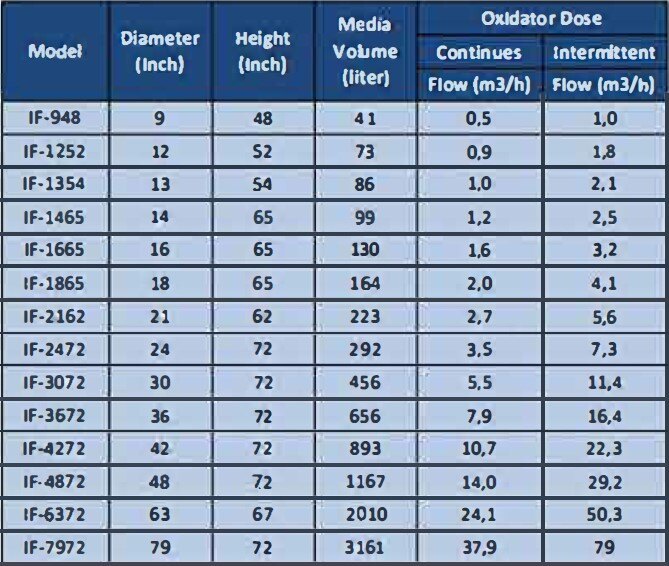

• Iron Removal Manganese Greensand
• Softening Resin
• Demineralizers (Anion & Cation Resin

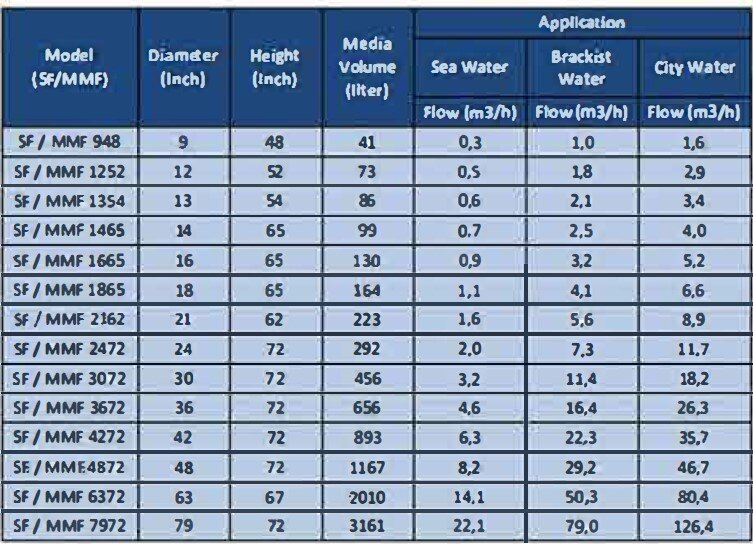

SAND FILTER & MULTIMEDIA FILTER

Manual Fiberglass Filter
